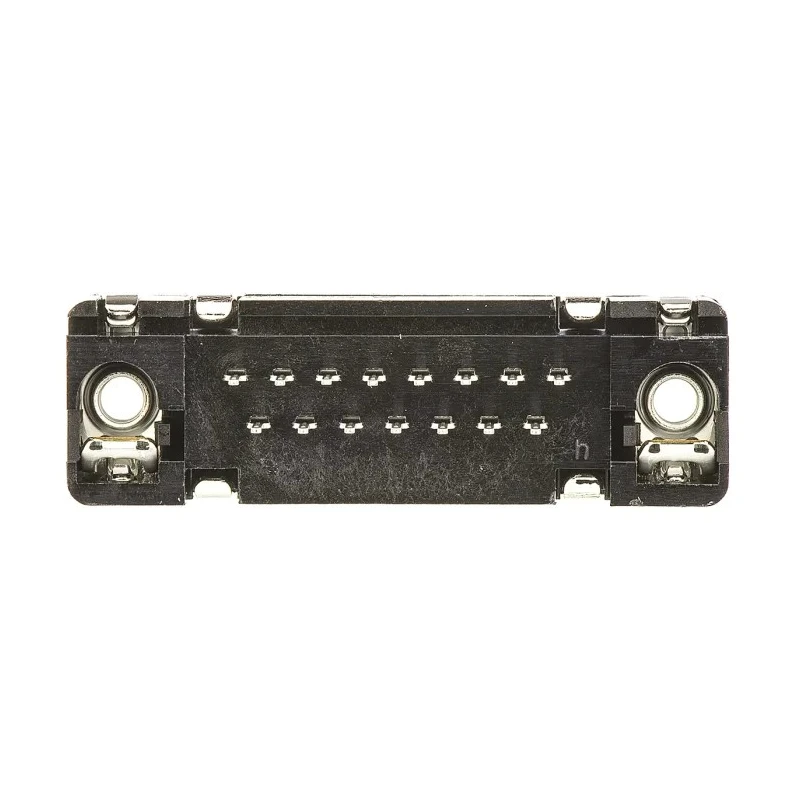

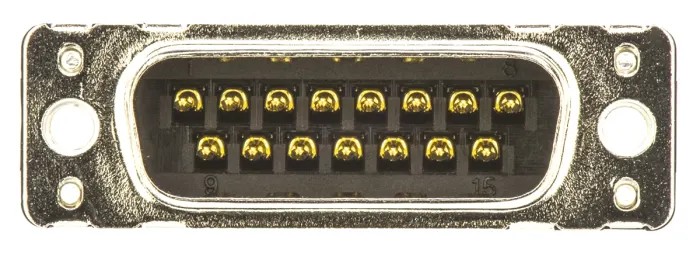

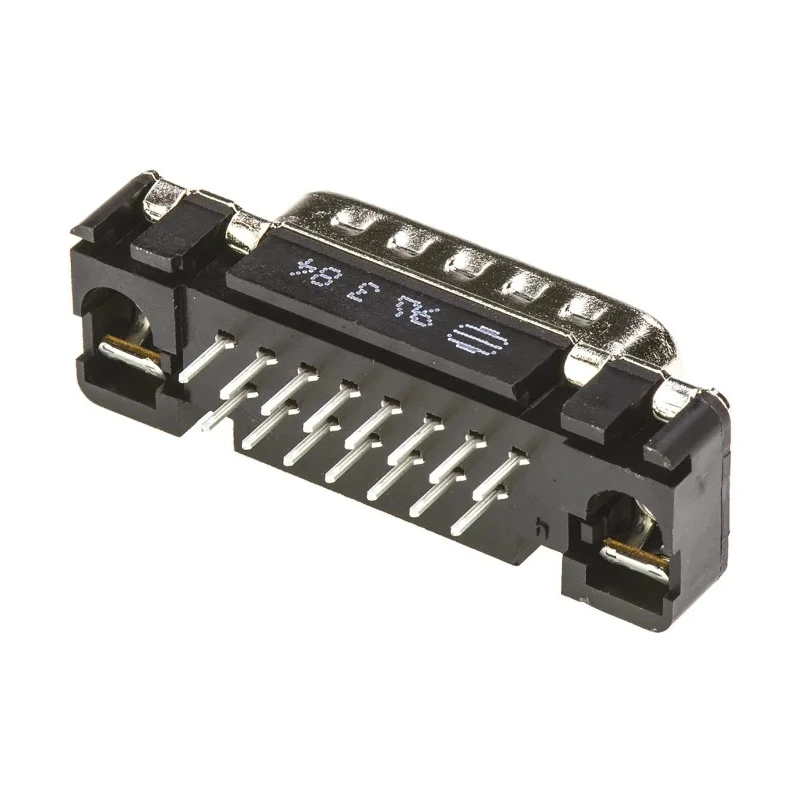

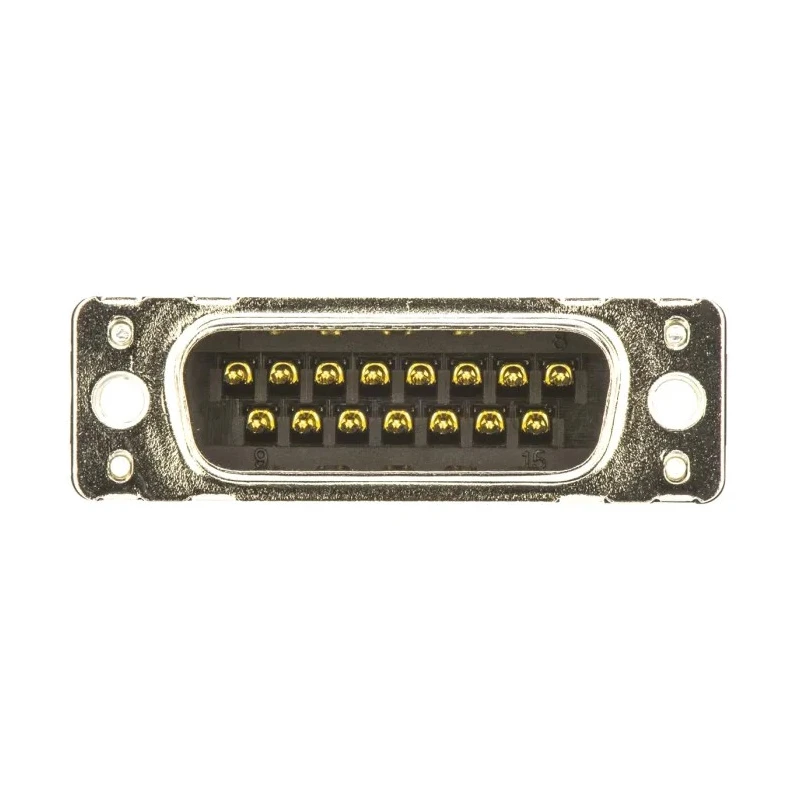

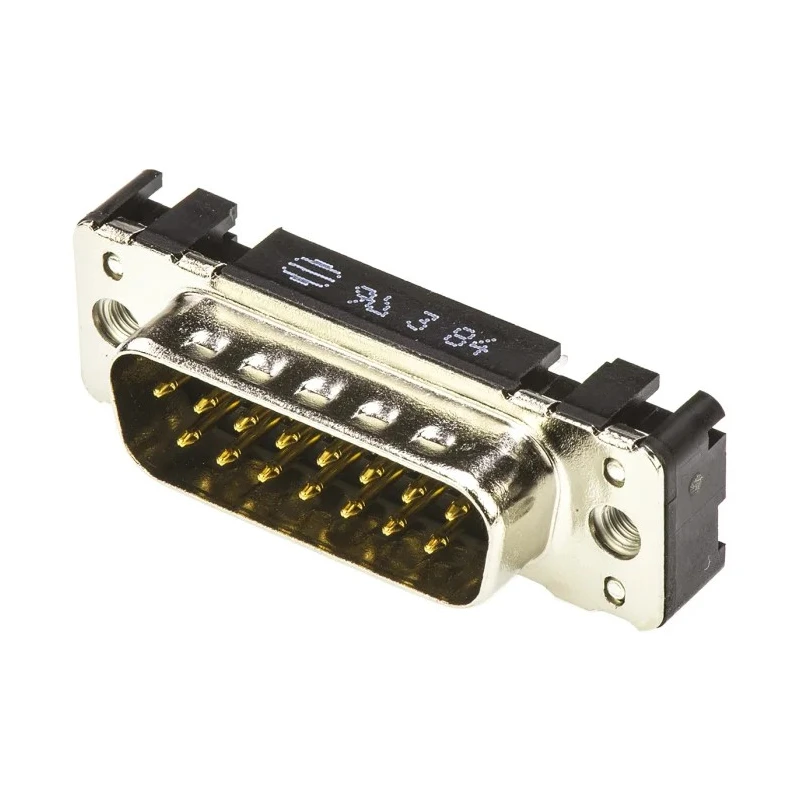

HARTING 15 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector with M3 Threaded Insert Male 09652217701
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 7.5A |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Mounting Hardware | M3 Threaded Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Standard |
| D-Sub Shell Size | D |
Key Features
- This connector features 15 contacts rated for 7.5 amps current.
- It has a straight orientation with a 2.74 mm pitch for precise alignment.
- The connector mounting is through-hole type with robust M3 threaded inserts.
- Housing of steel construction provides durability and mechanical strength.
- Contacts are made of copper alloy plated with gold to ensure excellent conductivity and corrosion resistance.
- Suitable operating temperature ranges from -55°C to 125°C for versatile environmental use.
- Termination is by soldering ensuring secure and lasting connections.
- Designed to comply with MIL-C-24308, DIN 41652, and CECC 75301-802 standards.
Product Description
HARTING 09652217701 15 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector with M3 Threaded Insert Male is engineered for industrial and electronic applications requiring reliable and robust PCB connections. With 15 contacts rated at 7.5 amps current, this connector supports medium power electronic circuits efficiently and safely.
Its straight orientation and 2.74 mm pitch ensure accurate mating and optimal space utilization on printed circuit boards. The steel housing and M3 threaded mounting inserts provide mechanical strength and robust securing, ideal for demanding environments. Contacts are manufactured from high-grade copper alloy and gold plated to resist corrosion and provide stable conductivity over prolonged use.
The operating temperature range of -55°C to 125°C makes this connector suitable for harsh industrial, automotive, and electronic assembly environments. Termination via soldering guarantees a permanent and reliable electrical connection.
Designed according to stringent international standards including MIL-C-24308, DIN 41652, and CECC 75301-802, this D-Sub connector is trusted for quality and precision. Manufactured in Switzerland, the product embodies engineering excellence and reliability.
This connector supports 15 contacts rated for 7.5A current. Features a straight orientation and 2.74 mm pitch for precise placement. Steel housing with M3 threaded inserts ensures durable mounting. Copper alloy contacts are gold plated for optimal conductivity and corrosion resistance.
Operating temperature spans from -55°C to 125°C to suit various industrial environments. Termination type is solder, delivering secure and stable connections. Meets MIL-C-24308, DIN 41652, and CECC 75301-802 standards for quality assurance.
Manufactured in Switzerland ensuring high manufacturing standards.
This HARTING D-Sub Connector is ideal for applications in industrial manufacturing, electronics assembly, automotive systems, telecommunications, and aerospace sectors where quality, durability, and performance are critical. Browse more connectors at EnvMart for comprehensive electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector features 15 contacts rated for 7.5 amps current, suitable for medium power electronic circuits.
The contacts of this connector have a pitch of 2.74 mm, ensuring precise alignment on printed circuit boards.
It utilizes a through-hole mounting type with M3 threaded inserts for secure installation.
The housing is made of steel, while the contacts are constructed from copper alloy and plated with gold for enhanced conductivity and corrosion resistance.
It can operate within a temperature range of -55°C to 125°C, making it suitable for various industrial environments.
Termination is done via soldering, which ensures a secure and lasting electrical connection.
It is designed to comply with MIL-C-24308, DIN 41652, and CECC 75301-802 standards for quality assurance.
This model features male contacts, which is typical for D-Sub connectors used in various applications.
The shell size of this connector is designated as 'D', which is standard for D-Sub connectors.
It is manufactured in Switzerland, ensuring adherence to high manufacturing standards.
This D-Sub connector is ideal for industrial manufacturing, electronics assembly, automotive systems, telecommunications, and aerospace sectors.
The connector features a straight orientation, which aids in accurate mating and optimal space utilization on PCBs.
