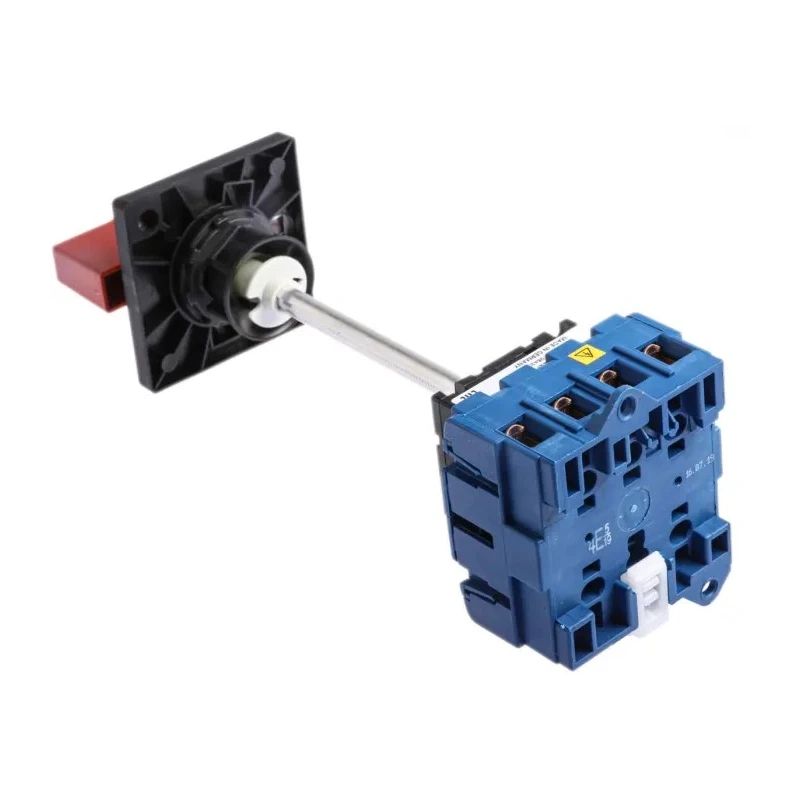

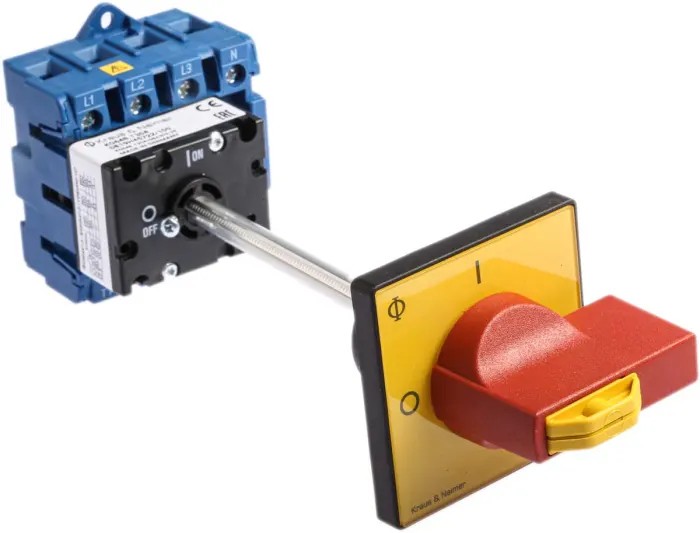

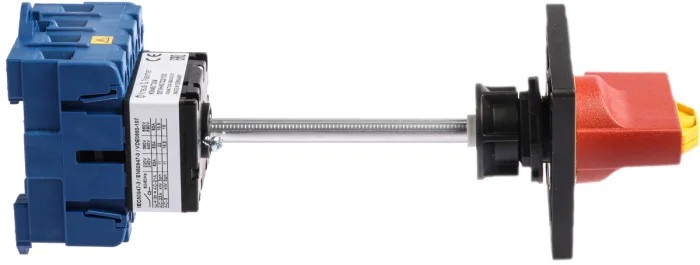

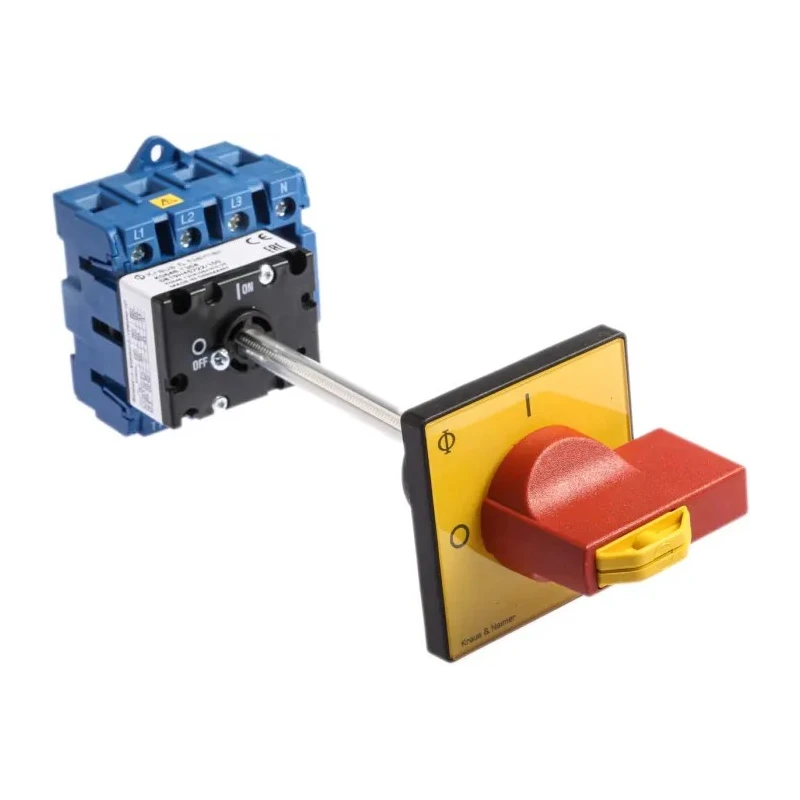

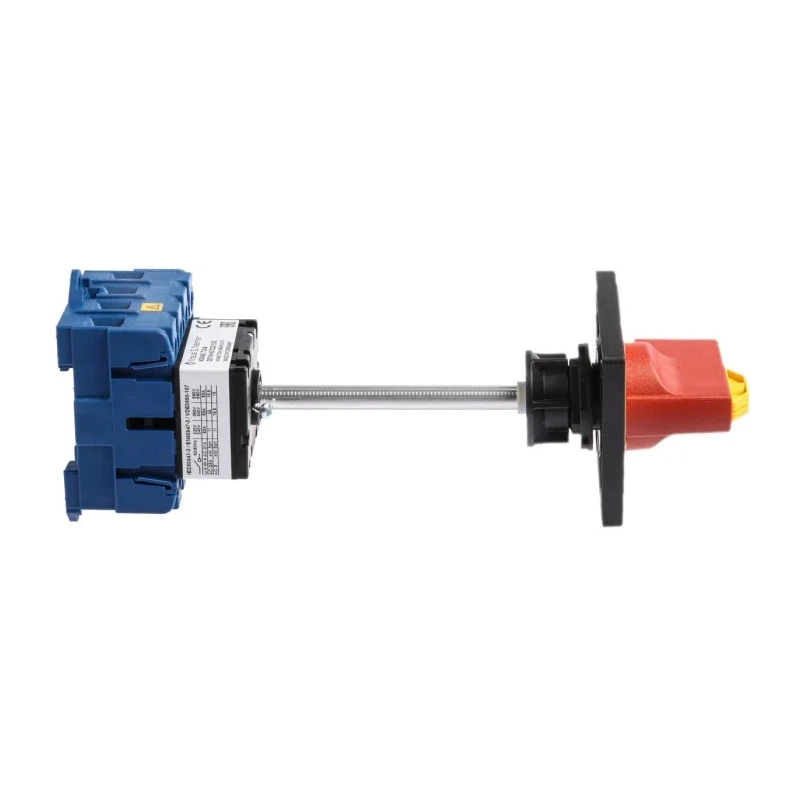

Kraus & Naimer 4-Pole Surface Isolator Switch IP65 63A 22kW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Kraus & Naimer |
| Length | 66mm |
| Model | IP65 |
| Depth | 61mm |
| IP Rating | IP65 |
| Width | 64mm |
| Mount Type | Surface |
| Series | KG |
| Minimum Operating Temperature | 55°C |
| Switching Current | 63A |
| Terminal type | Wire |
| Nominal Voltage | 690V |
| Electrical Phase | 3 |
| Number of Poles | 4 |
| Standards/Approvals | UR, CCC, CSA |
| Switching AC Voltage | 240V ac |
| Switching Power | 22kW |
| Kraus & Naimer 4-Pole Surface Isolator Switch -, IP65, 40A, 15 kWBrand | Kraus & Naimer |
Key Features
- Designed for surface mounting with a compact form factor.
- Rated for 63 amps and suitable for 3-phase electrical systems.
- Has IP65 ingress protection for dust and water resistance.
- Equipped with auxiliary contacts for additional switch functionality.
- Features fingerproof terminals ensuring safe wiring and operation.
- Includes a 120mm adjustable metal operating shaft for versatile installation.
- Panel door interlock prevents opening while switch is in the ON position.
- Suitable for switching AC voltage up to 240 V and nominal voltage rating of 690 V.
Product Description
Kraus & Naimer KG64B.T204/GBA302.VE is a 4-Pole Surface Isolator Switch designed for industrial and commercial electrical switching applications, rated at 63A current and 22kW switching power with IP65 ingress protection.
This isolator switch features a surface mount design making it suitable for easy installation on panel surfaces. It supports three-phase electrical systems with a nominal voltage of 690V and can switch AC voltages up to 240V.
The device is constructed for durability with fingerproof terminals to ensure operator safety. An adjustable metal operating shaft of 120mm length allows flexible mounting options, while a door interlock mechanism prevents the opening of the panel door when the switch is in the ON position, adding to operational safety.
Auxiliary contacts are available for expanded control functions, enhancing the switch's versatility in automation and control circuits. The switch complies with recognized international standards such as BS EN 60947-3, EN 60947-3, IEC 60947-3, VDE 0660, and EN 60204-01, ensuring reliable and safe operation.
Operating temperature range from -55°C to 55°C makes it suitable for various industrial environments. The switch is also compatible with mounting on DIN rails or screws at the panel's back, providing installation flexibility.
Compact surface mount isolator switch for industrial use. Rated switching current of 63A and power rating of 22kW. Provides IP65 protection against dust and water ingress. Equipped with fingerproof terminals for safety. Includes auxiliary contacts for extended functionality.
Adjustable 120mm metal operating shaft for versatile fitting. Door interlock mechanism enhances operational safety. Compliant with international electrical standards. Operates reliably across a wide temperature range. Supports mounting via DIN rail or screw to panel back.
This isolator switch is ideal for industrial, manufacturing, electrical distribution, and automation system applications where reliable disconnection and safety are critical. Explore robust electrical switching solutions like the Kraus & Naimer Isolator Switch within the electrical switches category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This isolator switch is rated for 63A current and has a switching power of 22kW.
It has an IP65 ingress protection rating, providing resistance against dust and water.

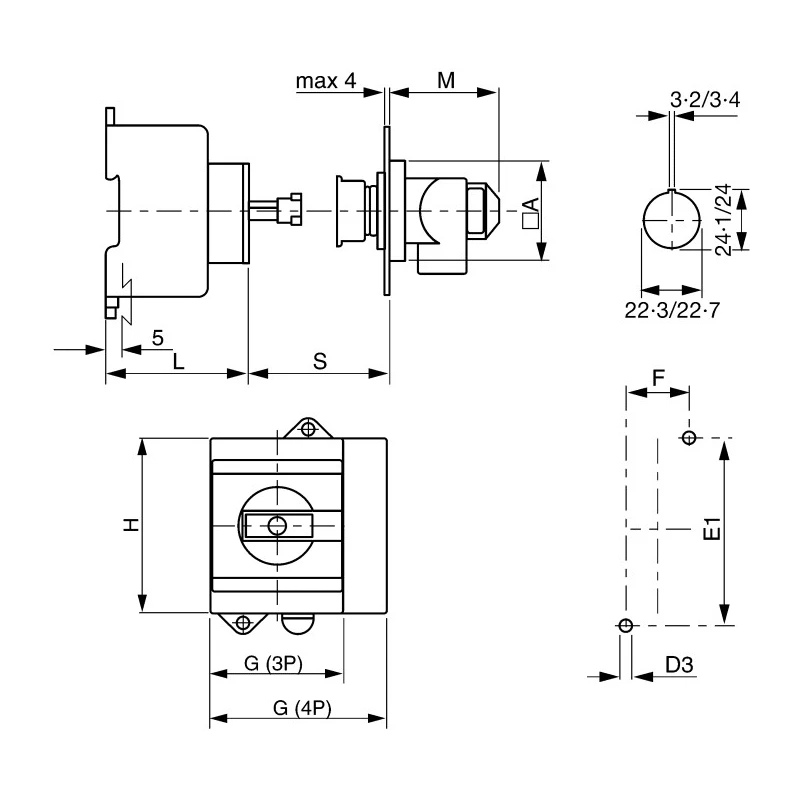

The switch has a length of 66mm, a width of 64mm, and a depth of 61mm.
The nominal voltage rating for this switch is 690V.
This model supports a 3-phase electrical system.
The minimum operating temperature for this switch is -55°C.
It features fingerproof wire terminals to ensure safe wiring and operation.
Yes, it is equipped with auxiliary contacts for additional switch functionality.
It is designed for surface mounting and can be installed using DIN rails or screws at the panel's back.
It includes a door interlock mechanism that prevents the panel door from being opened while the switch is in the ON position.
This isolator switch complies with several international standards including BS EN 60947-3, IEC 60947-3, and VDE 0660.
It can switch AC voltages up to 240V.
