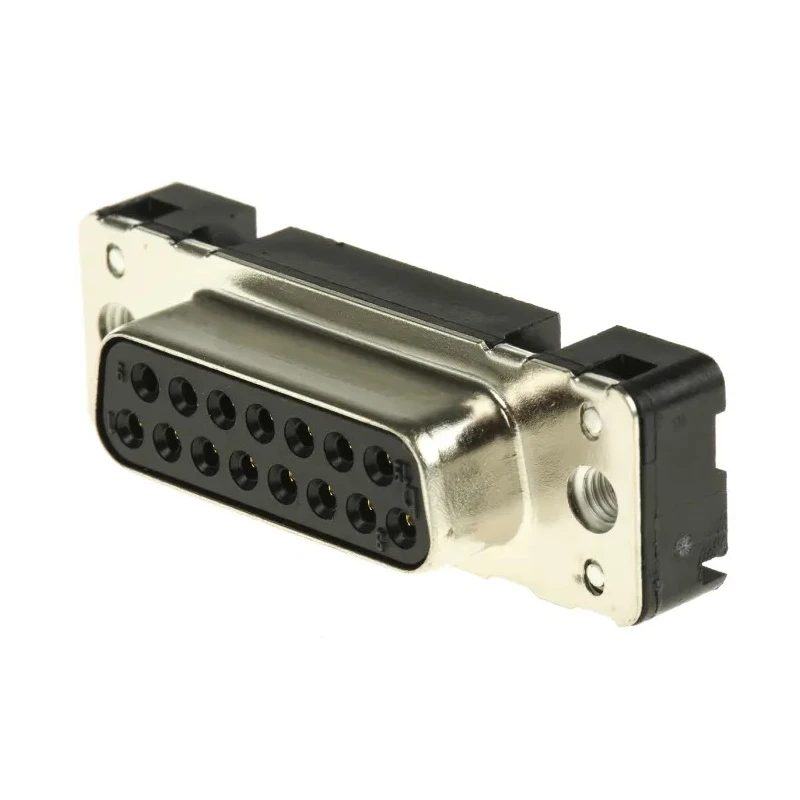

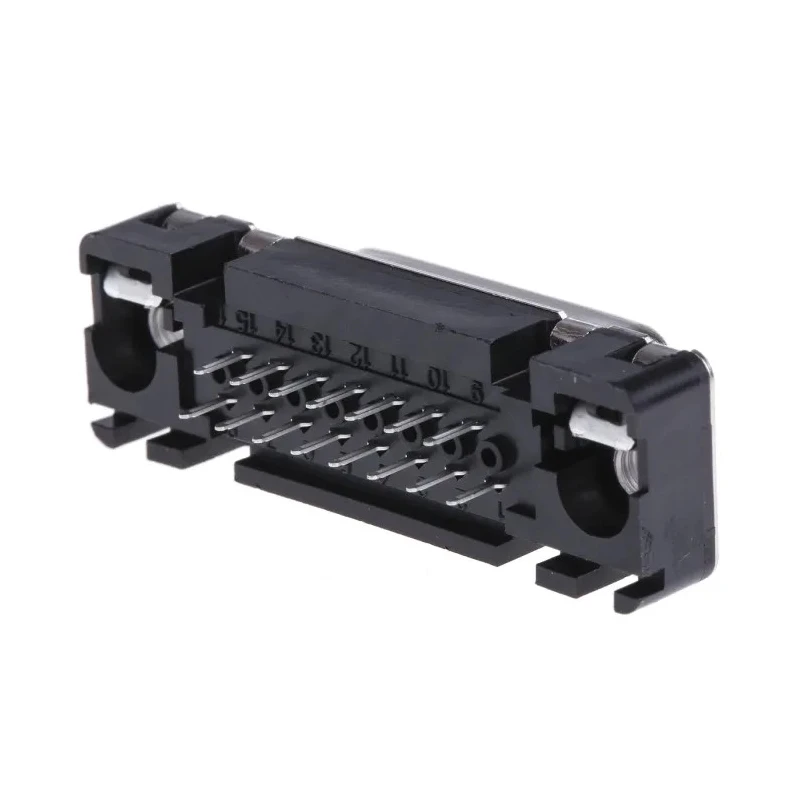

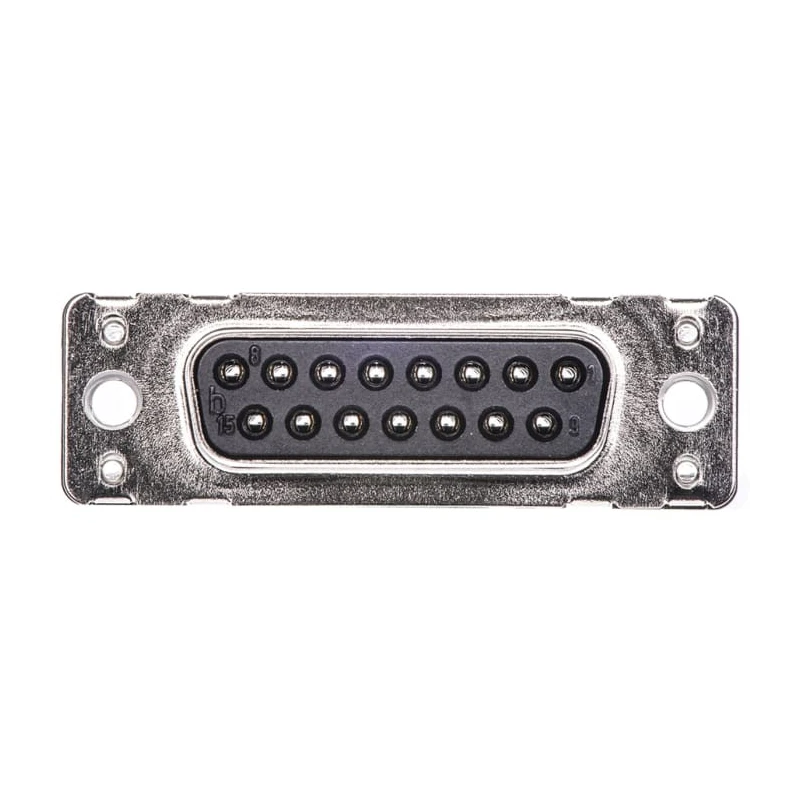

HARTING D-Sub 15 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector with M3 Threaded Insert Female 09662117501
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 7.5A |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Mounting Hardware | M3 Threaded Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | Standard |
| D-Sub Shell Size | D |
Key Features
- The connector features 15 contacts suitable for currents up to 7.5A.
- It has a straight orientation and uses solder termination type.
- Housing material is durable steel ensuring robustness.
- Contact material is copper alloy plated with gold for excellent conductivity and corrosion resistance.
- Operating temperature range is -55°C to 125°C for reliable performance in various environments.
- Standard D-Sub shell size D complies with MIL-C-24308, DIN 41652, and CECC 75301-802 standards.
- Suitable for PCB through hole applications in electronics and industrial equipment.
Product Description
HARTING 09662117501 D-Sub 15 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector with M3 Threaded Insert Female is a high-quality connector designed for reliable connections in electronic and industrial hardware.
This connector features 15 contact points with a current rating of 7.5 amperes, making it suitable for various power and signal transmission applications. The straight through hole mounting type facilitates easy installation on PCB boards, while the M3 threaded insert hardware ensures secure attachment.
Constructed with a steel housing, this connector offers robust mechanical strength and durability needed for demanding industrial environments. The contacts are made from copper alloy and plated with gold, providing exceptional electrical conductivity and resistance to corrosion for long-lasting performance.
Operating temperature range from -55°C up to 125°C allows this connector to be used reliably in harsh temperature conditions found in industrial, manufacturing, and electronic assembly sectors.
This product complies with industry standards MIL-C-24308, DIN 41652, and CECC 75301-802, ensuring compatibility and quality assurance. The connector supports 15 contact connections rated for 7.5A current. Straight orientation and solder termination type provide ease of PCB installation.
Steel housing delivers mechanical robustness in industrial environments. Gold-plated copper alloy contacts maximize conductivity and reduce corrosion. Wide operating temperature range enables use in diverse application scenarios.
M3 threaded insert mounting hardware allows secure attachment to PCB assemblies. Conforms to recognized industry standards for connectors. This D-Sub Connector is ideal for use in electronics manufacturing, industrial automation, machinery interfaces, and communication equipment.
Explore other HARTING connectors and industrial electronics at EnvMart for your specific application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector has a current rating of 7.5A, making it suitable for various power and signal transmission applications.
The operating temperature range for this connector is from -55°C to 125°C, allowing reliable performance in harsh conditions.
It uses a through hole mounting type, which facilitates easy installation on PCB boards.
The housing is made of steel, while the contacts are constructed from copper alloy and plated with gold for enhanced conductivity and corrosion resistance.
This model features 15 contacts, providing multiple connection points for various applications.
The pitch size of this D-Sub connector is 2.74 mm, which is standard for this type of connector.
It uses a solder termination type, which is common for secure electrical connections on PCB assemblies.
This connector complies with MIL-C-24308, DIN 41652, and CECC 75301-802 standards, ensuring compatibility and quality.
This D-Sub connector has a female connector gender, suitable for mating with male connectors.
The connector includes M3 threaded insert mounting hardware for secure attachment to PCB assemblies.
This D-Sub connector is ideal for use in electronics manufacturing, industrial automation, machinery interfaces, and communication equipment.
The country of origin for this connector is India.
