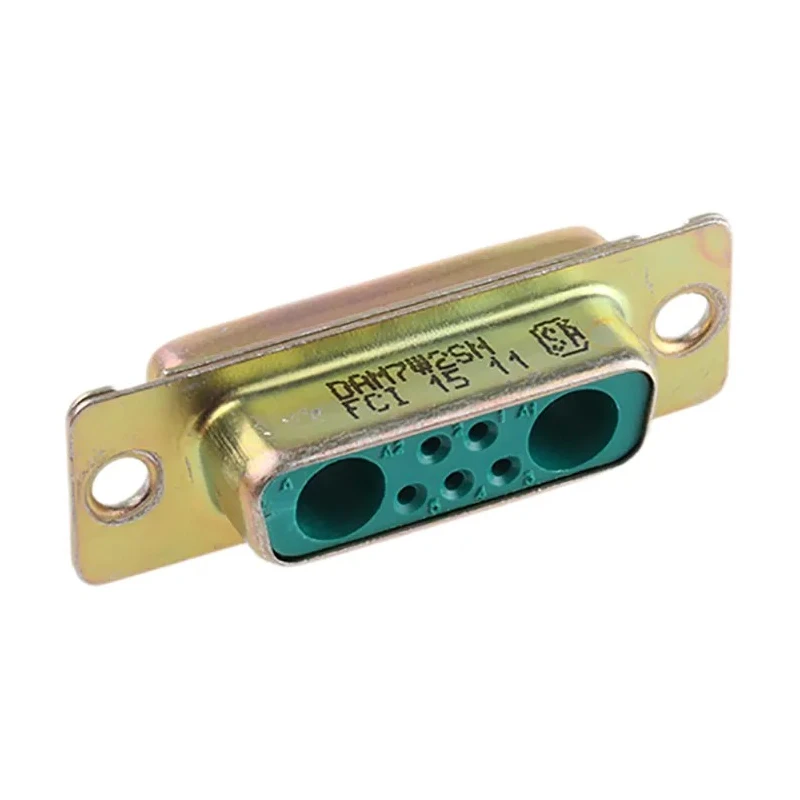

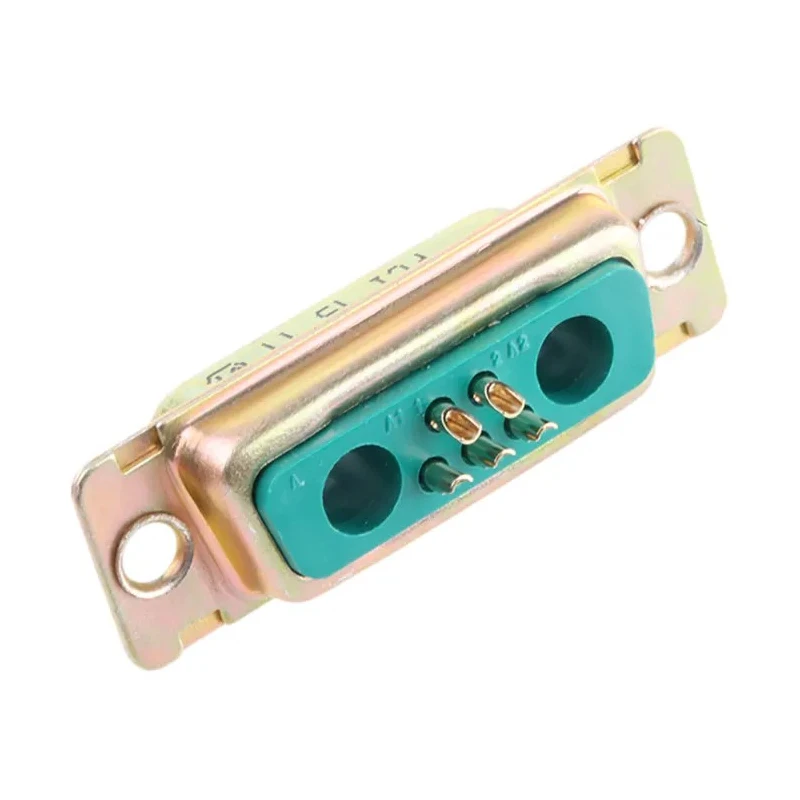

Amphenol Communications Solutions 7 Way Straight Panel Mount Female D-Sub Connector 300V, 7.5A DAM7W2SN
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 7.5A |
| Model | DAM7W2SN |
| Mount Type | Panel Mount |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | DMW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | A |
Key Features
- The connector is a DMW series D-Sub type with 7 contacts supporting mixed signal and power connections.
- The contact material is brass with gold over nickel plating for excellent conductivity and corrosion resistance.
- Suitable for operating temperatures from -55°C to 125°C, ensuring reliability in various environments.
- Designed with a female connector gender and solder termination type for strong and secure connections.
- This product is ideal for military, industrial, commercial, and computer interfacing applications.
- Shell size A offers a compact form factor while maintaining performance standards without approvals.
- The connector supports mixed contact configurations allowing integration of signal and power contacts effectively.
Product Description
Amphenol Communications Solutions DAM7W2SN is a 7 Way Straight Panel Mount Female D-Sub Connector engineered for reliable electrical and signal interfacing in demanding industrial, military, commercial, and computer applications. Rated for 300V and 7.5A current, this connector combines durability with precise contact performance.
The connector belongs to the DMW series, featuring 7 contacts in a mixed configuration. It uses brass contacts plated with gold over nickel, optimizing for conductivity and longevity. The steel housing ensures structural integrity and protection in harsh environments.
Operating safely across a temperature range from -55°C to 125°C, the connector is designed for panel mounting with solder termination and a straight orientation. This supports easy integration into various assemblies requiring secure, female gender connectors.
Its Series D mixed contacts include 15 signal contacts with 2 cavity spaces for power or coaxial contacts, enabling versatile use cases where combined power and signal transmission are required.
The connector’s steel housing provides robustness against physical stresses. Gold plating ensures corrosion resistance and stable electrical connections. Compact shell size A adapts well to tight installation areas without compromising performance.
Panel mount design simplifies installation into electronic equipment or panel assemblies. The connector’s broad temperature range allows its use in diverse industrial or military settings. Solder termination guarantees reliable long-term connection with cables or PCB assemblies.
The mixed configuration enables flexible wiring options, suitable for hybrid power and signal applications.
This connector is an excellent choice for industries demanding rugged, high-performance panel mount connectors. It is suitable for electronic components, power and connectors sectors and fits well within applications including communication systems, instrumentation, and industrial control.
Browse our range of D-Sub Connectors and related components to find connectors matching your precise technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 300V and 7.5A current, making it suitable for various electrical applications.
The connector features brass contacts plated with gold over nickel for excellent conductivity and corrosion resistance, while the housing is made of steel for structural integrity.
It operates safely across a temperature range from -55°C to 125°C, allowing use in diverse environments.
This connector has 7 contacts configured for mixed signal and power connections, including 15 signal contacts with 2 cavity spaces for power or coaxial contacts.
It uses solder termination, which provides a strong and secure connection for cables or PCB assemblies.
This connector has a shell size A, which offers a compact form factor suitable for tight installation areas.
Yes, it is designed for reliable electrical and signal interfacing in demanding military, industrial, commercial, and computer applications.
The connector features a straight orientation, which facilitates easy integration into various assemblies.
It has a female connector gender, designed for strong and secure connections in panel mount applications.
The connector is manufactured in India, ensuring compliance with relevant manufacturing standards.
It is suitable for applications including communication systems, instrumentation, and industrial control, due to its versatile design.
The housing is made of steel, providing robustness against physical stresses and environmental factors.
