Kraus & Naimer 4-Pole Surface Isolator Switch IP66, IP67, 20A, 5.5 kW

Kraus & Naimer KG10.T204/GBA301.*KS1V 4-Pole Surface Isolator Switch, rated IP66 and IP67, supports 20A switching current and 5.5 kW switching power, making it suitable for demanding electrical isolation requirements in industrial environments.

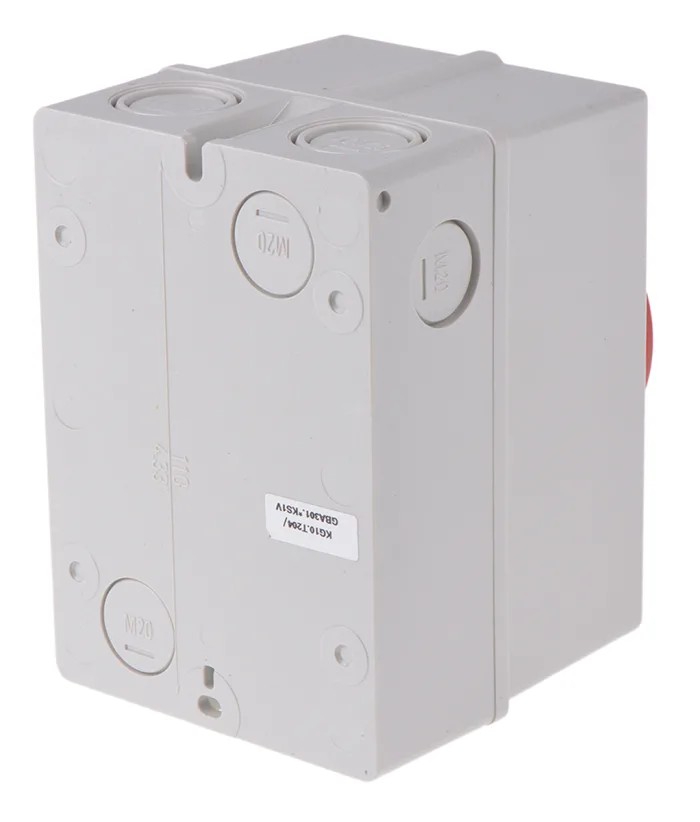

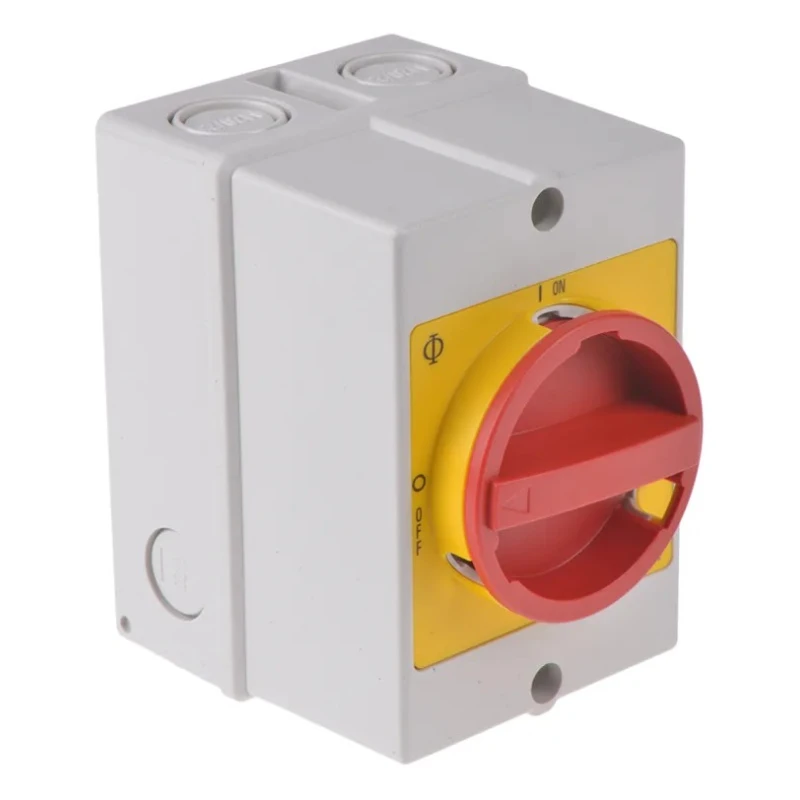

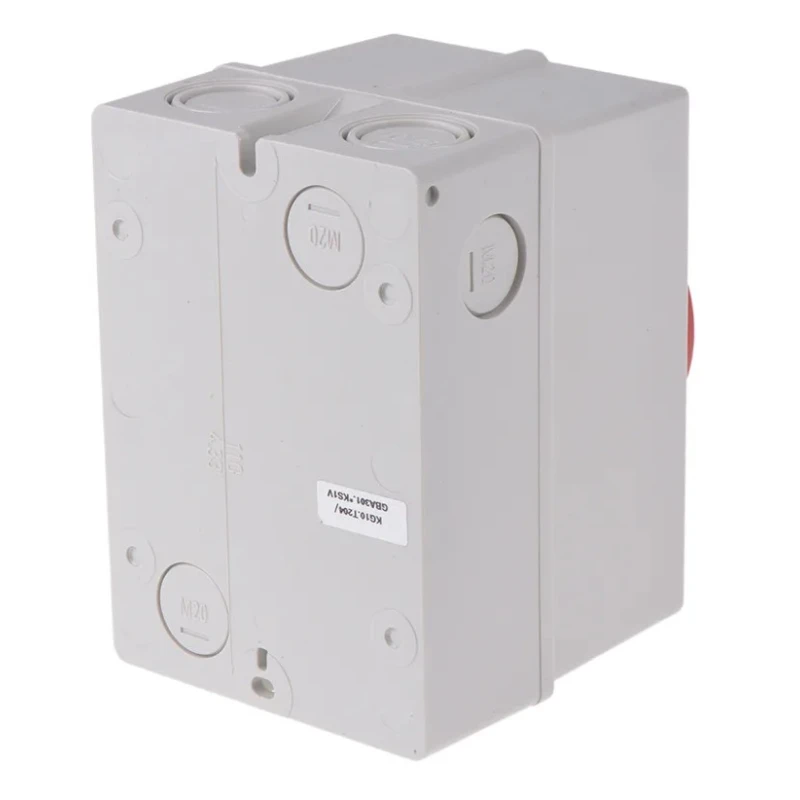

This isolator switch is enclosed in a high impact grey polycarbonate material that is UV stabilized to offer durability and resistance to harsh environmental conditions including dust and water ingress, classified to IP66 and IP67 standards. The surface mount design facilitates easy installation in various electrical setups and control panels.

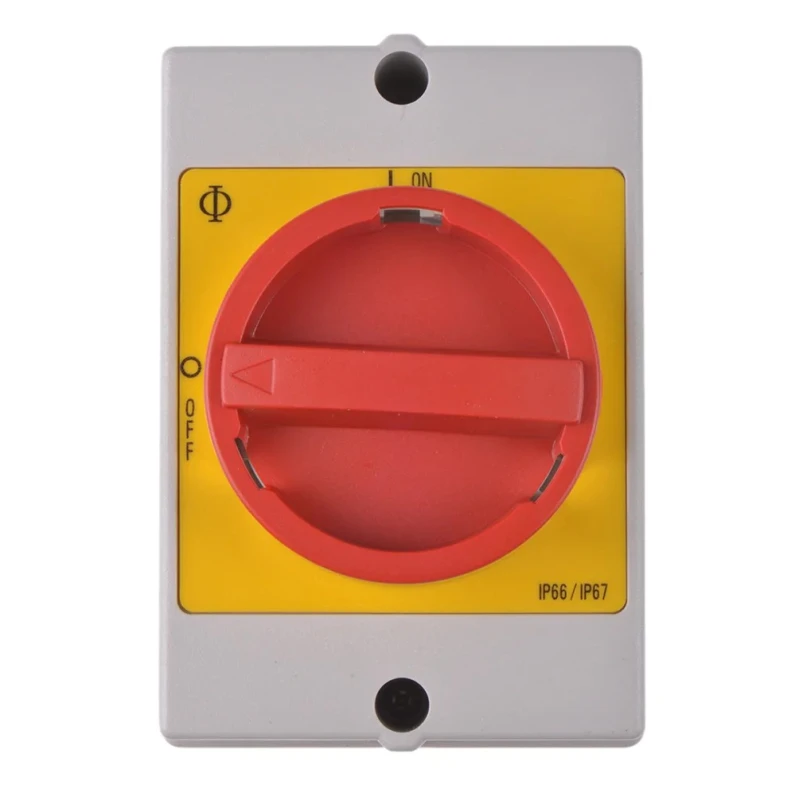

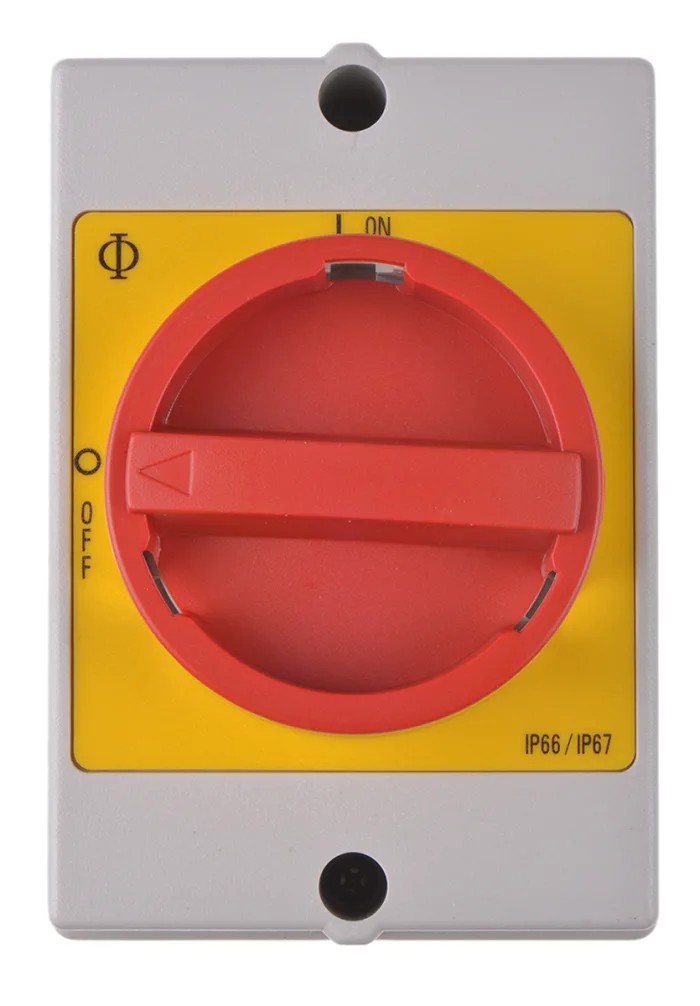

The device features a distinctive low profile red and yellow handle integrated within the enclosure cover, enhancing operational visibility and safety. It is designed for 3 phase electrical use with a nominal switching voltage of 690 V and switching power capability of 5.5 kW under Utilization Category AC23A/AC3 for 380/440 V supply.

Safety features include the ability to lock the switch in the OFF position with up to three padlocks, preventing unauthorized operation, and the lid is interlocked in the ON position to secure the switch during operation. The inclusion of an earth terminal allows for proper grounding to reduce electrical hazards.

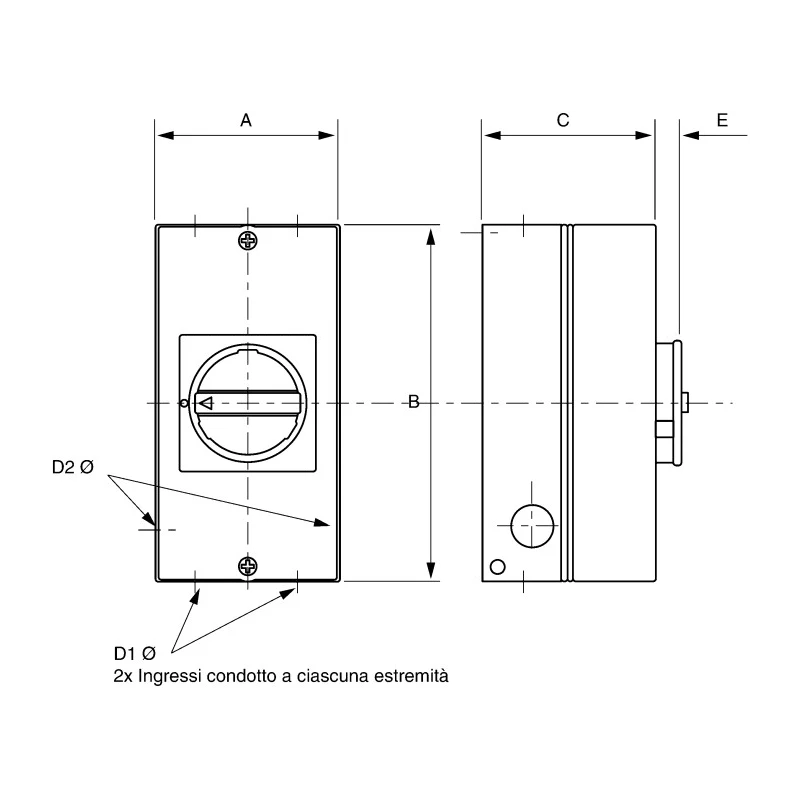

Compact and robust, this switch measures 121 mm in length, 86 mm in width, and 107 mm in depth, allowing flexible integration within industrial control systems. It is able to operate reliably in temperatures up to 55°C, suitable for most industrial and manufacturing environments.

Rated for 20A switching current ensuring reliable load handling. IP66 and IP67 enclosure provides high protection against dust and water ingress. Constructed with high impact grey polycarbonate enclosure that is UV stabilized.

Features a low profile red/yellow operating handle integral with the enclosure cover. Lockable in the OFF position with up to three padlocks, with lid interlocked in the ON position for safety. Includes an earth terminal for grounding.

Designed for 3 phase electrical systems with nominal switching voltage of 690 V. Operating temperature range up to 55°C to ensure stable operation under varying conditions. Compact dimensions with length 121 mm, width 86 mm, and depth 107 mm.

Manufactured in Austria to high standards EN60947, VDE 0660, and EN 60204.

This isolator switch is ideal for industrial, manufacturing, commercial electrical installations, and HVAC control systems requiring a reliable and safe switching disconnector complying with international ratings.
