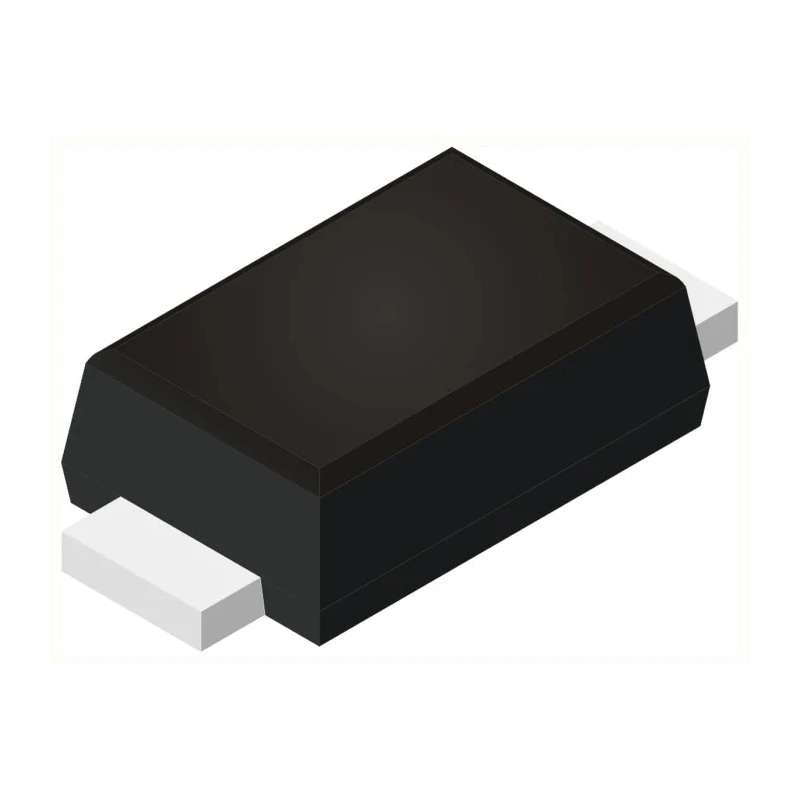

ROHM 40 V 2 A Surface Mount Schottky Barrier Diode SOD-123FL Package RBR2MM40CTR

Name: ROHM 40 V 2 A Surface Mount Schottky Barrier Diode SOD-123FL Package RBR2MM40CTR
Brand: ROHM
SKU: 94983



Category Schottky Diodes & Rectifiers Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	0.9mm
Length	2.7mm
Model	RBR2MM40CTR
Width	1.7mm
Mount Type	Surface
Series	RBR2MM40C
Maximum Operating Temperature	150°C
Package Type	SOD-123FL
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	100μA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Maximum Forward Voltage Vf	0.52V

Key Features

Mount type is surface mount, suitable for PCB assembly.
Package type is compact SOD-123FL for space-efficient design.
Supports maximum continuous forward current of 2 A for moderate power applications.
Peak reverse repetitive voltage rating of 40 V ensures robust blocking capability.
Diode features single configuration with Schottky rectifier type characteristics.
Has fast switching with maximum forward voltage drop of 0.52 V to enhance efficiency.
Operating temperature ranges from -55°C to 150°C for versatile environmental tolerance.
Peak non-repetitive forward surge current rating of 30 A for transient robustness.

Product Description

ROHM RBR2MM40CTR is a single Schottky barrier diode designed for surface mounting using the compact SOD-123FL package. With a maximum continuous forward current rating of 2 A and a peak reverse voltage of 40 V, this device is ideal for efficient rectification in power supply circuits and other electronic applications.

This diode offers a low forward voltage drop of 0.52 V, contributing to improved efficiency and reduced heat generation. Its robust operating temperature range from -55°C to 150°C makes it suitable for demanding industrial and automotive environments, despite not conforming to specific automotive standards.

The device holds a peak non-repetitive forward surge current rating of 30 A, allowing it to withstand transient current spikes safely during operation. Its small power mold type (PMDU) delivers high reliability in a compact form factor.

Typical applications include power rectification, voltage clamping, and protection circuits in industrial, manufacturing, and electronics assembly environments. Its surface mount assembly compatibility facilitates automated, high-volume PCB manufacturing.

Surface mount type with SOD-123FL package for compact PCB layouts. Maximum continuous forward current of 2 A suitable for low to medium power circuits. Peak repetitive reverse voltage rating of 40 V protects against voltage spikes.

Single diode configuration with Schottky rectifier technology for fast switching. Low forward voltage drop of 0.52 V decreases power loss and heat production. Wide temperature operating range (-55°C to 150°C) for harsh environments.

Compact size of 2.7 mm x 1.7 mm x 0.9 mm supports tight PCB placements. Peak non-repetitive surge current of 30 A ensures durability under surge conditions. RoHS compliant for environmental and safety standards adherence.

This ROHM Schottky barrier diode is ideal for use in electronic component manufacturing, power management circuits, industrial electronics, and other applications requiring efficient diode performance with high reliability. Browse our full range of Schottky diodes and rectifiers at EnvMart for more solutions tailored to your needs.
