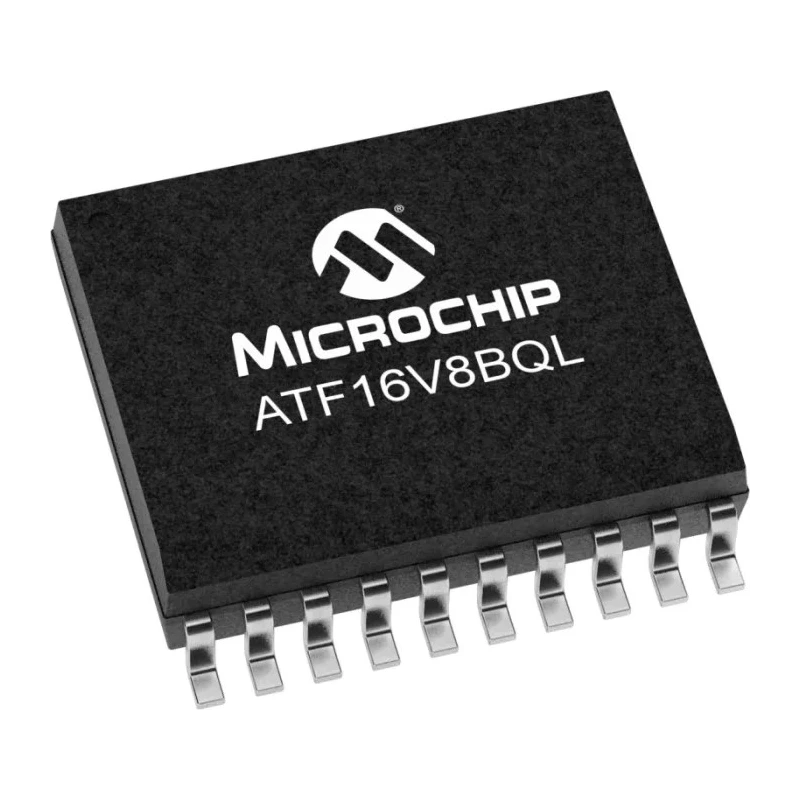

Microchip Complex Programmable Logic Device , 150 Gates, 8 Macro Cells, 8 I/O, 62 MHz, SOIC Package ATF16V8BQL-15SU

Microchip ATF16V8BQL-15SU is a high-performance complex programmable logic device featuring 150 gates, 8 macro cells, and 8 user I/O pins designed for flexible logic control solutions.

This device operates at a maximum internal frequency of 62 MHz and supports both in-system programmability and re-programmability, allowing engineers to update logic functions without removing the device from the circuit board.

Housed in a 20-pin SOIC surface mount package, the device is well-suited for compact designs where PCB space conservation is critical. Power supply requirements range from a minimum of 4.75 V to a maximum of 5 V, compatible with standard logic power rails.

Engineered to operate over a wide ambient temperature range of -40°C to 85°C, it provides robust performance under demanding industrial and commercial environments. The device offers a maximum propagation delay time of 15 nanoseconds, supporting high-speed data processing and timing-critical applications.

It meets key compliance standards including PCI, Pb/Halide-free/RoHS directives, and IEEE 1149.1-1990 and 1149.1a-1993 test standards, ensuring environmental compliance and quality assurance.

Physical dimensions measure 12.8 mm in length and 2.35 mm in height, allowing for integration into tight spaces on printed circuit boards.

This programmable logic device is ideal for use in industrial automation, control systems, embedded electronics, and prototyping environments requiring customizable logic solutions.

This device supports in-system programmability for flexible deployment. It includes re-programmability support to accommodate design changes. Constructed using a SOIC surface mount package with 20 pins for compact PCB integration.

Operates at a supply voltage range between 4.75V and 5V. Designed for industrial temperatures from -40°C to 85°C, ensuring reliability. Maximum propagation delay time is 15 nanoseconds, suitable for high-speed logic applications.

Complies with PCI, Pb/Halide-free/RoHS standards, and IEEE 1149.1 testing protocols. Dimensions are 12.8 mm in length and 2.35 mm in height, aiding in space-efficient layout. Explore more programmable logic and semiconductor components to design and optimize industrial and electronic applications with EnvMart.
