| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.8mm |
| Length | 2.7mm |
| Model | TDZ4V7J,115 |
| Mount Type | Surface |
| Series | TDZxJ |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 3μA |
| Nominal Zener Voltage Vz | 4V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 80Ω |
| Typical Voltage Temperature Coefficient | 0.2mV/K |
| Total power dissipation | ≤ 500 mW |
| Non-repetitive Peak reverse power dissipation | ≤ 180 W |
| onsemi 1, 4.7 V Zener Diode, Single 200 mW 2 % Surface 2-Pin SOD-323FBrand | onsemi |

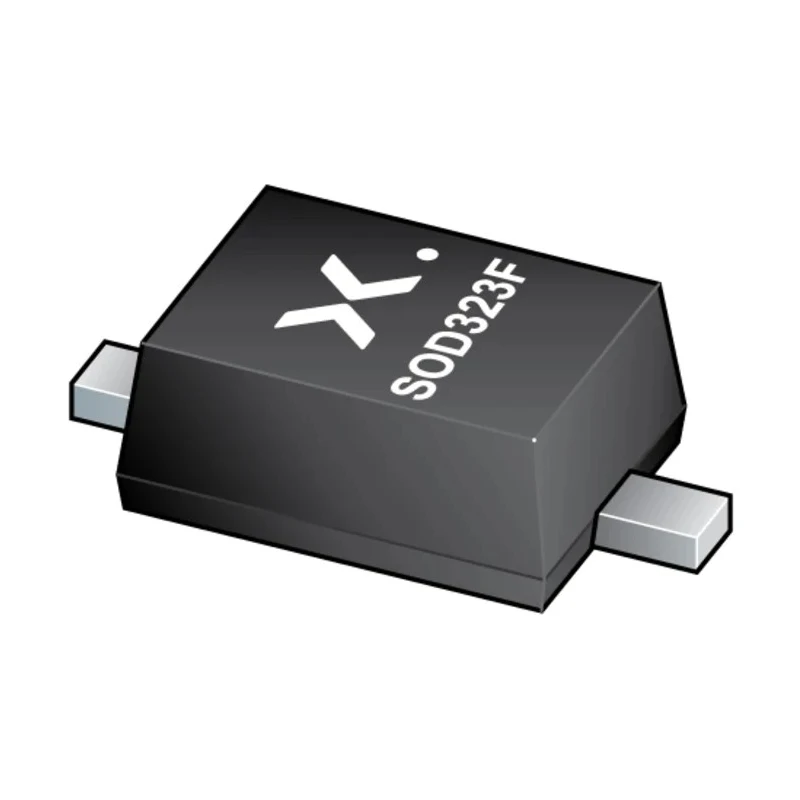

Nexperia TDZ4V7J,115 is a high-quality single-element general purpose Zener diode designed for precise voltage regulation at nominal 4 V and power dissipation of 500 mW. Housed in a compact 2-pin SOD-323 surface mount package, this diode is ideal for space-constrained electronic designs requiring stable voltage references.
The diode supports a test current of 5 mA and exhibits a voltage tolerance of ±2%, making it suitable for precision industrial, automotive, and consumer electronics applications. Certified for automotive use under AEC-Q101 standards, it ensures reliability in harsh environments with an operating temperature from -55°C to 150°C.
Its low differential resistance and typical voltage temperature coefficient of 0.2 mV/K contribute to effective voltage stabilization across temperature variations.
With a maximum reverse leakage current of just 3 μA and a peak reverse power dissipation rating of up to 180 W non-repetitive, it offers safety and durability for sensitive circuitry protection.
Single-element design for voltage regulation stability. Precise nominal voltage of 4 V with 2% tolerance. Compact SOD-323 surface mount 2-pin package. Automotive-grade qualification (AEC-Q101). Wide operating temperature range (-55°C to 150°C).
Low reverse leakage current minimizes losses. Stable voltage with low differential resistance and thermal coefficient. Reliable power dissipation up to 500 mW continuous and 180 W peak reverse. This Zener diode is extensively used in industrial electronics, automotive circuits, telecommunications equipment, and various power supply stabilization applications.
