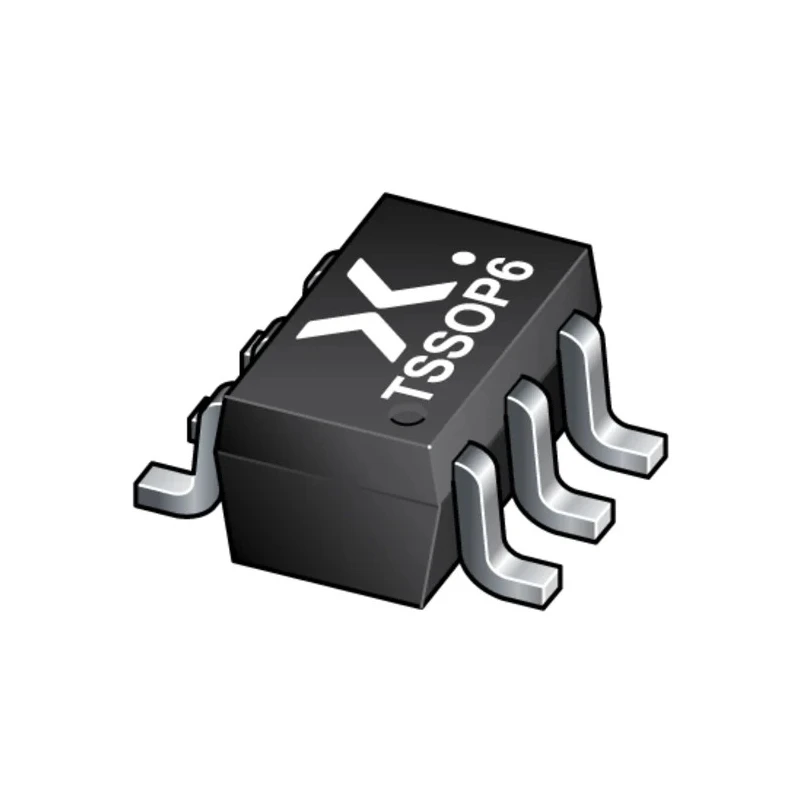

Nexperia Resistor-Equipped Transistor Dual NPN + PNP 100 mA 50 V 6-Pin SOT PUMD18,115

Nexperia PUMD18,115 is a dual resistor-equipped transistor integrating both NPN and PNP types in a 6-pin SOT surface mount package. This device supports a maximum DC collector current of 100 mA and a maximum collector emitter voltage of 50 V, making it suitable for compact and efficient circuit designs.

The integrated bias resistors R1 (4.7 kΩ) and R2 (10 kΩ) enhance functionality by reducing component count and simplifying circuit layout, especially useful in automotive and industrial electronics meeting AEC-Q101 standards.

With a minimum DC current gain (hFE) of 50 and a maximum transition frequency of 230 MHz, the PUMD18,115 transistor offers reliable amplification performance in demanding applications.

Designed for surface mount technology, it features a small form factor with 2.1 mm length, 1.25 mm width, and 0.95 mm height, allowing space-saving solutions on circuit boards. Operating temperature range from -65°C to 150°C ensures dependable performance in harsh environmental conditions.

Simplified circuit design with integrated resistors. High current capability of 100 mA. Compact 6-pin SOT package for surface mounting. RoHS compliant and AEC-Q101 automotive qualified. Wide operating temperature range and reliable power dissipation.

Suitable for automotive, industrial, and consumer electronics. Originating from Malaysia, this transistor serves as a versatile component in semiconductor applications, providing dual NPN and PNP transistor configurations in a single package.
