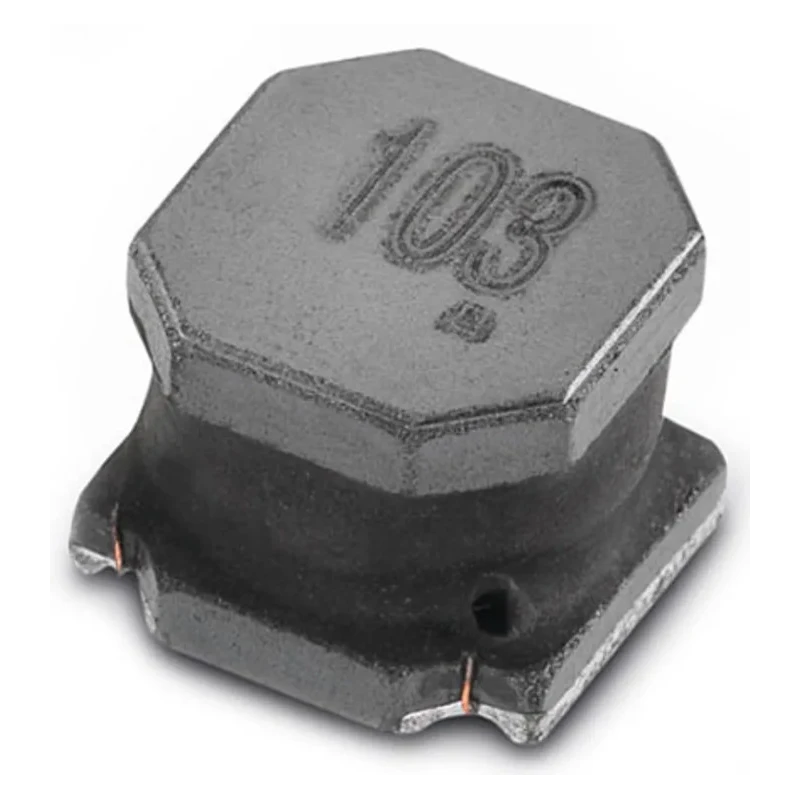

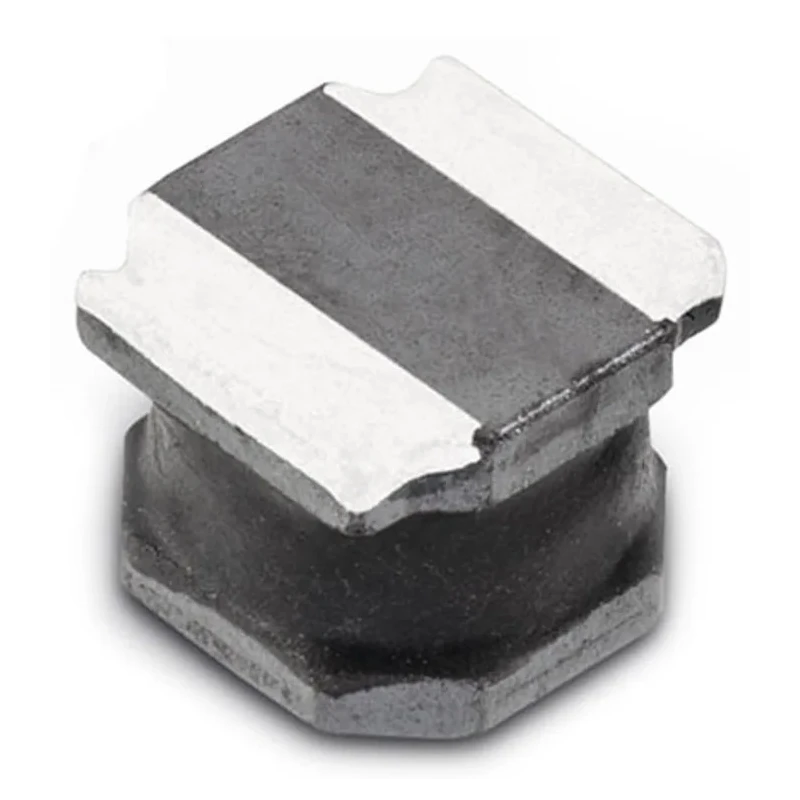

Wurth Elektronik WE-LQS 8065 Shielded Wirewound Surface Mount Inductor with Ferrite Core 6.8 mH ±20% 140 mA Idc 74404086682

Wurth Elektronik 74404086682 WE-LQS 8065 is a shielded wirewound Surface Mount Inductor featuring a ferrite core, offering 6.8 mH inductance with a tolerance of ±20% and a maximum DC current rating of 140 mA. This component is engineered for compact, high-efficiency power management and switching controller applications, ideal for portable electronic devices such as PDAs, smartphones, digital cameras, and televisions.

The WE-LQS series inductors are magnetically shielded to minimize electromagnetic interference and feature a wirewound construction that ensures robustness and reliable inductance characteristics. The inductor complies with automotive standard AEC-Q200 and is certified to meet IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS environmental regulations.

Designed for surface mount termination, this inductor comes encapsulated in a moulded case with dimensions of 8 mm length, 6.5 mm height, and 8 mm depth, making it suitable for high-density PCB layouts. It supports a maximum operating temperature of 125°C and a minimum of -40°C, allowing it to function reliably in diverse environmental conditions.

The device exhibits a maximum DC resistance of 18.7 Ω and a maximum self-resonant frequency of 509 kHz. It includes 2 pins and is supplied in tape and reel packaging, facilitating automated manufacturing processes commonly used in industrial and commercial electronics manufacturing.

This power inductor series from Wurth Elektronik is designed to deliver superior current handling capability, managing about 1.7 times more current than unshielded equivalents. Its compact and durable design makes it well-suited for high-performance portable power applications requiring low DC resistance and effective magnetic shielding.

Inductance rated at 6.8 mH with ±20% tolerance for reliable performance. Maximum DC current handling capability of 140 mA. Constructed with a ferrite core and wirewound design for enhanced shielding and efficiency. Features surface mount termination style, suitable for compact PCB designs.

Compliant with automotive standard AEC-Q200 and environmental standards including RoHS and REACH. Maximum operating temperature is 125°C and minimum operating temperature is -40°C, ensuring durability in various conditions.

Encapsulated with a moulded design and dimensions of 8 mm length, 6.5 mm height, and 8 mm depth. Maximum DC resistance of 18.7 Ω and maximum self-resonant frequency of 509 kHz. Packaged in tape & reel format for automated assembly processes.

2-pin configuration optimized for surface mount applications in portable and high-efficiency devices.
