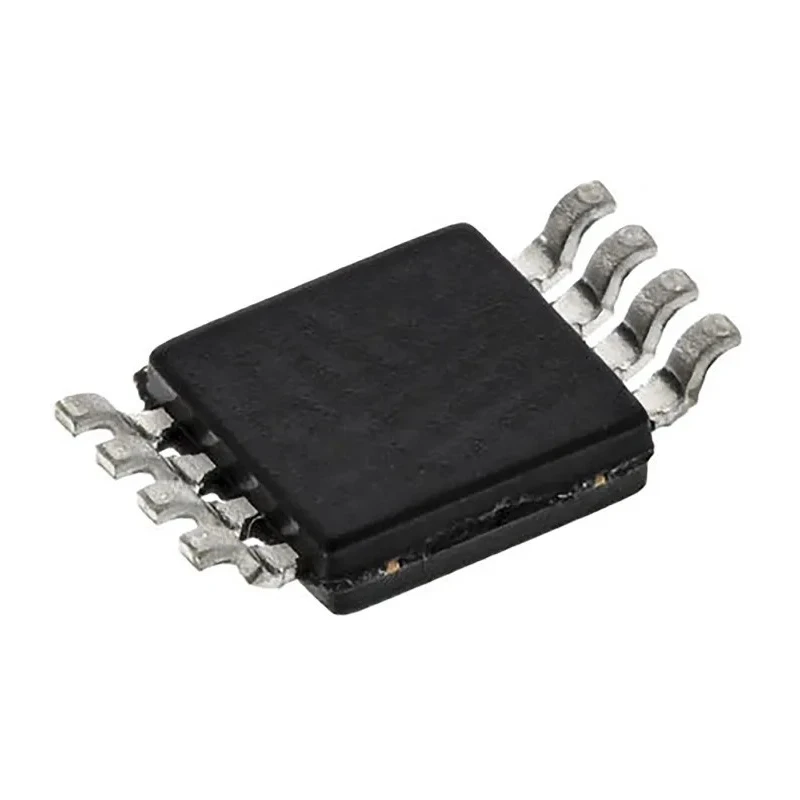

DiodesZetex Operational Amplifier MSOP, 700 kHz, Dual Channel, 36V, 8-Pin, Surface Mount LM2904M8-13

DiodesZetex LM2904M8-13 is a high-performance, dual-channel operational amplifier designed for precision signal processing in industrial, automotive, and commercial electronics. Featuring a 700 kHz gain bandwidth and a wide supply voltage range of 3V to 36V, it adapts effectively to diverse electronic circuit environments.

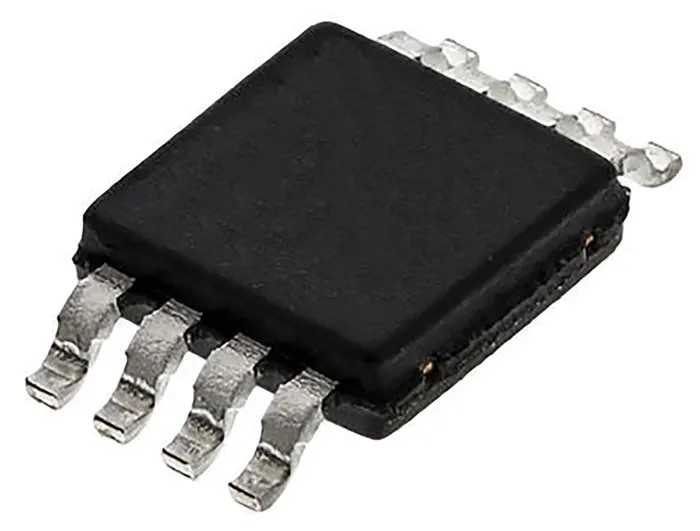

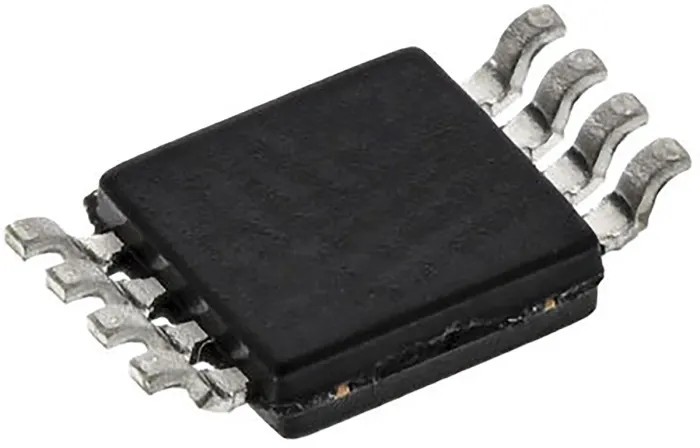

The device comes in a compact 8-pin MSOP surface mount package, making it ideal for applications where board space is limited and efficient PCB layout is paramount. Two amplification channels provide simultaneous signal operation, useful for audio, sensor, and analog front-end designs.

Key technical highlights include a low input bias current of -500 nA, which supports high input impedance requirements, and an input offset voltage of only 10 mV for accurate amplification. The LM2904M8-13 offers a slew rate of 0.3 V/μs, supporting fast response and dynamic operation especially in high-speed analog signal environments.

Automotive standard AEC-Q100 compliance ensures the amplifier can be used reliably in vehicle electronic systems and harsh industrial settings. Maximum output current of 50 mA and operational temperature range from -40°C to 125°C enable robust performance under demanding conditions.

Provides 700 kHz gain bandwidth for precision signal amplification. Operates on a wide supply voltage range from 3V to 36V for various electronic designs. Compact 8-pin MSOP package suitable for space-constrained circuit boards.

Dual channel configuration allows simultaneous processing of two independent signals. Features low input bias current of -500 nA for high input impedance applications. Slew rate of 0.3 V/μs enables fast response in dynamic circuits.

Input offset voltage is just 10 mV, ideal for precision circuitry. Automotive standard AEC-Q100 compliance guarantees reliability for vehicle use.

This operational amplifier is ideally suited for industrial instrumentation, sensor interfaces, automotive modules, and commercial electronics such as audio amplifiers and precision measurement systems. Its RoHS compliance ensures environmental safety and suitability for modern manufacturing standards.
