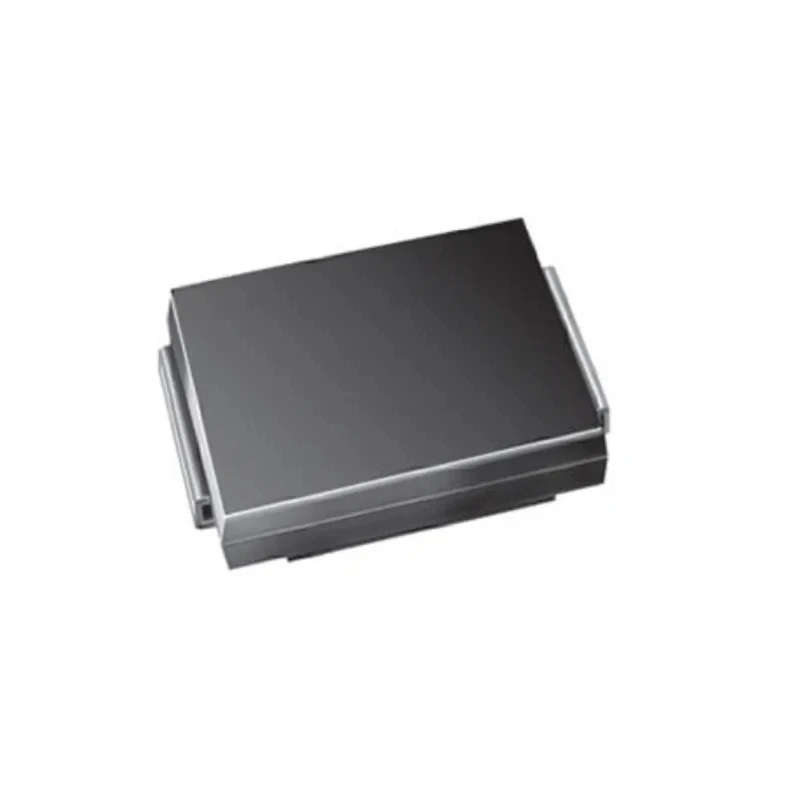

Vishay Bi-Directional TVS Diode, 3 kW, DO-214AB, Surface Mount, SMC3K24CAHM3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 6.22mm |
| Length | 7.11mm |
| Model | SMC3K24CAHM3_A/H |
| Width | 2.62mm |
| Mount Type | Surface |
| Series | SMC3K |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Clamping Voltage VC | 38.9V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 26.7V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Peak Pulse Power Dissipation Pppm | 3kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 77.1A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Bi-directional transient voltage suppressor diode for robust protection.
- Peak pulse power dissipation of 3 kW ensures high endurance.
- Surface mount DO-214AB (SMC) package for compact integration.
- Maximum reverse stand-off voltage of 24 V enables reliable performance.
- Clamping voltage of 38.9 V and maximum peak pulse current of 77.1 A.
- RoHS compliant for safe electronic manufacture.
- Operating temperature range of -55°C to 150°C, suitable for automotive and industrial applications.
- AEC-Q101 qualified for automotive-grade reliability.
Product Description
Vishay SMC3K24CAHM3_A/H bi-directional TVS diode delivers reliable transient voltage suppression for electronics requiring robust protection from voltage surges. Designed for use in sensitive electronics, this diode offers stability and high power dissipation, making it ideal for industrial, automotive, and consumer applications.
Bi-directional TVS diode in DO-214AB surface mount package enables flexible circuit design integration. Peak pulse power dissipation of 3 kW ensures sustained protection against rapid voltage spikes. Reverse stand-off voltage of 24 V and breakdown voltage of 26.7 V provides robust operational margins.
Clamping voltage of 38.9 V effectively limits excess voltage. Low maximum reverse leakage current of 1 µA offers minimal losses in standby mode. ESD protection feature safeguards against electrostatic discharge effects. Wide operating temperature range from -55°C to 150°C, meeting industrial and automotive requirements.
AEC-Q101 qualification confirms automotive-grade reliability for critical applications. Applications include protection of ICs, MOSFETs, and signal lines in consumer, computer, telecommunication, and sensor units. Meets RoHS standards for safe usage.
Ideal for manufacturing, laboratory, automotive, and industrial electronics where voltage transient protection is essential. Integrates seamlessly in circuits requiring high pulse power capability and fast response time.
Browse more TVS Diodes in the Semiconductor category at EnvMart to optimize circuit safety and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Vishay SMC3K24CAHM3_A/H is 3 kW, ensuring high endurance against voltage spikes.
The maximum reverse stand-off voltage for this diode is 24 V, providing reliable performance in various applications.
The clamping voltage of this model is 38.9 V, which effectively limits excess voltage during transient events.
This diode operates within a temperature range of -55°C to 150°C, making it suitable for both industrial and automotive applications.
The dimensions of this model are 7.11 mm in length, 2.62 mm in width, and 6.22 mm in height.
The maximum peak pulse current for the SMC3K24CAHM3_A/H is 77.1 A, allowing it to handle significant transient currents.
Yes, the Vishay SMC3K24CAHM3_A/H is AEC-Q101 qualified, confirming its reliability for automotive applications.
The maximum reverse leakage current for this model is 1 µA, which minimizes losses during standby mode.
This model comes in a DO-214AB (SMC) surface mount package, facilitating compact integration into circuits.
This diode is RoHS compliant, ensuring safe usage in electronic manufacturing.
It is suitable for protecting ICs, MOSFETs, and signal lines in consumer, computer, telecommunication, and sensor units.
The minimum breakdown voltage for the SMC3K24CAHM3_A/H is 26.7 V, providing robust operational margins during use.
