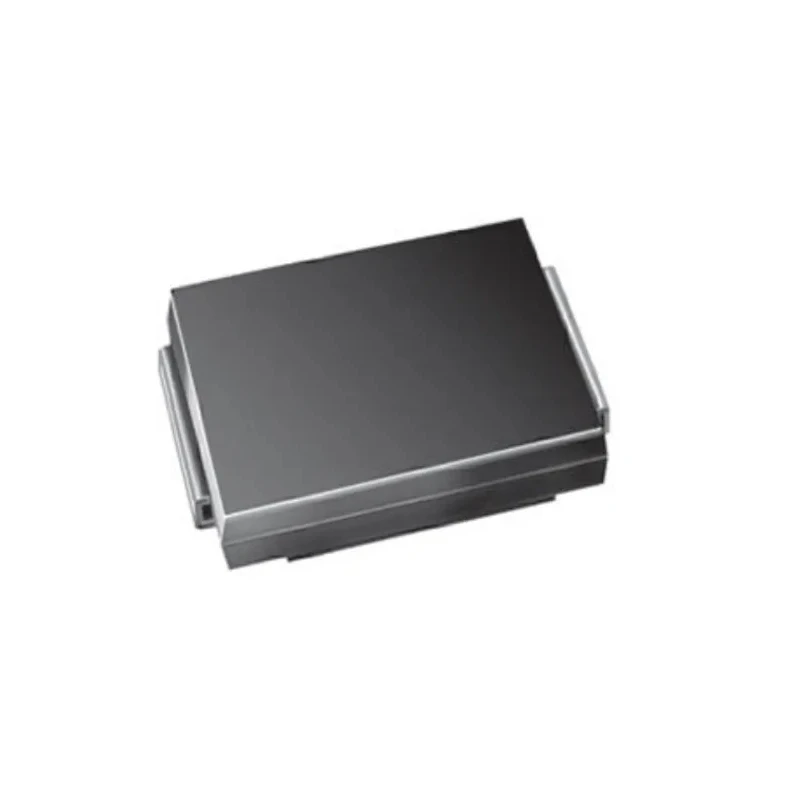

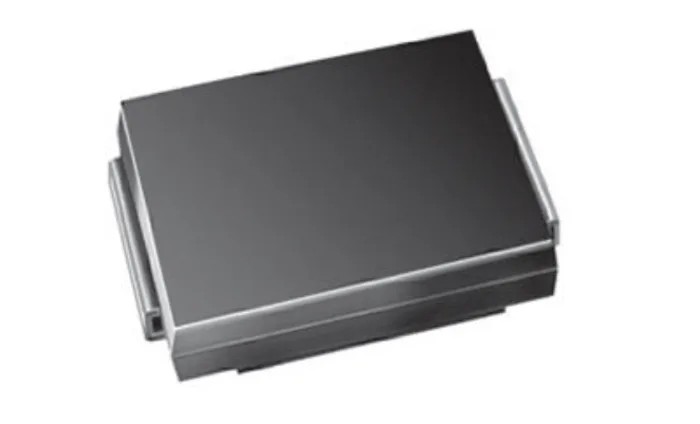

Vishay Bi-Directional TVS Diode DO-214AB, 3 kW, Surface Mount, SMC3K13CAHM3_A/H

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bi-Directional TVS Diode DO-214AB, 3 kW, Surface Mount, SMC3K13CAHM3_A/H

Name: Vishay Bi-Directional TVS Diode DO-214AB, 3 kW, Surface Mount, SMC3K13CAHM3_A/H
Brand: Vishay
SKU: 93482
Price: 1.52 USD
Availability: InStock



Category TVS Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	6.22mm
Length	7.11mm
Model	SMC3K13CAHM3_A/H
Width	2.62mm
Mount Type	Surface
Series	SMC3K
Maximum Operating Temperature	150°C
Package Type	DO-214AB (SMC)
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Clamping Voltage VC	21.5V
Automotive Standard	AEC-Q101
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	14.4V
Maximum Reverse Stand-off Voltage Vwm	13V
Peak Pulse Power Dissipation Pppm	3kW
Test Current It	1mA
Maximum Peak Pulse Current Ippm	140A
Maximum Reverse Leakage Current	1μA

Key Features

Bi-directional TVS diode for surge protection applications.
Peak pulse power dissipation rated at 3 kW for robust energy absorption.
Surface mount package DO-214AB (SMC) enables easy PCB integration.
Clamping voltage of 21.5V ensures safe suppression of voltage spikes.
Maximum reverse stand-off voltage of 13V, supporting sensitive circuit operation.
Wide operating temperature range from -55°C to +150°C.
Automotive AEC-Q101 qualified for demanding electronic environments.
RoHS-compliant, meeting industry environmental standards.

Product Description

Vishay SMC3K13CAHM3_A/H Bi-Directional TVS Diode is engineered to deliver high-efficiency transient voltage protection for advanced electronic systems. Featuring a 3 kW peak pulse power dissipation and housed in the DO-214AB (SMC) surface-mount package, it is ideal for use in consumer, industrial, automotive, and telecommunications electronic applications where safeguarding sensitive circuit elements and components against voltage transients is essential.

Bi-directional type allows for suppression of voltage spikes from both directions, reducing the risk of component damage. The diode supports a maximum reverse stand-off voltage of 13V and clamping voltage of 21.5V, critical for maintaining circuit stability during surges.

Designed for surface mount integration, minimizing PCB footprint and supporting automated production lines. Robust peak pulse current rating of 140A, making it suitable for applications requiring high surge absorption. Offers excellent ESD protection and fast response time, ensuring reliable performance against common electrostatic events.

Operates reliably across a wide temperature spectrum from -55°C to 150°C to suit demanding industrial and automotive environments. Automotive standard AEC-Q101 qualified for use in vehicle electronics safety-critical environments.

RoHS compliance ensures suitability for global manufacturing standards and environmentally conscious projects.

This TVS diode is especially appropriate for ICs, MOSFETs, sensor lines, and signal protection circuits in consumer electronics, computers, industrial machinery, automobile systems, and telecom equipment. It is not recommended for PCB bottom-side wave mounting.

Industrial, laboratory, automotive, and communications use cases benefit from this TVS diode’s reliable transient suppression performance, delivering enhanced equipment longevity and reduced maintenance.

Explore more TVS diodes and Vishay protection components in the TVS Diode category at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The peak pulse power dissipation of this model is rated at 3 kW, making it suitable for robust energy absorption in surge protection applications.

The maximum reverse stand-off voltage for this TVS diode is 13V, which is critical for supporting sensitive circuit operation.

The clamping voltage of this model is 21.5V, ensuring safe suppression of voltage spikes during operation.

It operates reliably across a wide temperature range from -55°C to 150°C, suitable for demanding industrial and automotive environments.

This diode is housed in a DO-214AB (SMC) surface-mount package, which facilitates easy integration into PCB designs.

The maximum peak pulse current rating for this model is 140A, allowing it to handle high surge absorption requirements.

Yes, this diode is automotive AEC-Q101 qualified, making it suitable for use in safety-critical electronic environments in vehicles.

The height of this model is 6.22mm and its width is 2.62mm, which are important dimensions for PCB layout considerations.

The minimum breakdown voltage for this diode is 14.4V, which is relevant for its operation under transient conditions.

This model is suitable for applications in consumer electronics, industrial machinery, automotive systems, and telecommunications equipment where voltage transients need to be managed.
