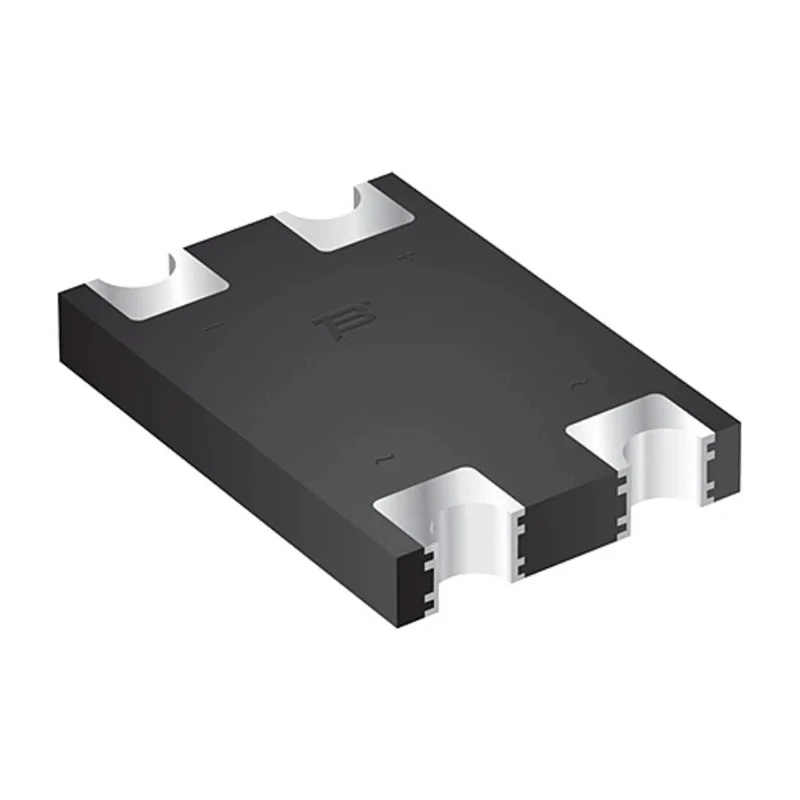

Bourns Bridge Rectifier 1000V 150A 4-Pin Surface Mount Single CD-DF410S
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 1.55mm |
| Length | 10.6mm |
| Model | CD-DF410S |
| Width | 8.2mm |
| Mount Type | Surface |
| Series | CD-DF4 |
| Configuration | Single |
| Maximum Operating Temperature | 175°C |
| Package Type | SMT |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Forward Current If | 4A |
| Peak Forward Voltage Vf | 950mV |
Key Features
- Operates with a peak reverse repetitive voltage of 1000V.
- Features a forward surge current rating of up to 150A.
- Surface mount package type allows for compact PCB layouts.
- 4-pin SMT configuration and single-phase design.
- Maximum continuous forward current of 4A for reliable performance.
- Wide operating temperature range from -55°C up to 175°C.
- Automotive standard not supported for this model.
Product Description
Bourns CD-DF410S Bridge Rectifier, 1000V 150A, 4-Pin Surface Mount Single is engineered for demanding electronics applications, offering robust conversion of AC input into consistent DC output. The CD-DF410S is part of the CD-DF4 series and features a low-profile SMT (Surface Mount Technology) package, which is ideal for modern compact circuit designs in industrial, commercial, and laboratory electronics.
The device supports a peak reverse repetitive voltage (Vrrm) of 1000V for enhanced protection against voltage spikes. It provides a peak forward surge current (Ifsm) of up to 150A, allowing tolerance to high inrush currents typical in power conversion circuits.
Standard continuous forward current (If) rating is 4A, ensuring reliable steady-state operation for various load conditions. Its compact structure (10.6mm x 8.2mm x 1.55mm) supports efficient PCB space utilization, making it suitable for densely populated boards.
This bridge rectifier employs four diodes in a bridge configuration, guaranteeing polarity consistency regardless of AC input orientation.
Key technical features include surface mountability for automated assembly, a wide operating temperature range from -55°C to 175°C, and minimal forward voltage drop (950mV), optimizing power conversion efficiency. The unit is not intended for automotive compliance, focusing instead on general-purpose industrial applications.
The Bourns CD-DF410S is ideal for the industrial electronics sector, such as power supplies for automation equipment, control panels, laboratory instruments, and manufacturing systems. It is also suitable for commercial AC to DC conversion requirements in HVAC controls, lighting systems, and consumer electronics. Its rugged performance makes it a reliable choice for environments where space-saving and efficient assembly are critical.
For further technical integration, the rectifier’s single-phase configuration and 4-pin layout make it straightforward to mount onto standard PCBs. Its high surge capability is valuable for systems subject to power fluctuations or startup currents.
Explore more high-performance bridge rectifiers and semiconductor products from Bourns in the Bridge Rectifier Module category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns CD-DF410S has a peak reverse repetitive voltage of 1000V, providing enhanced protection against voltage spikes.
This model supports a maximum continuous forward current rating of 4A, ensuring reliable operation under various load conditions.
The peak forward surge current rating for the CD-DF410S is up to 150A, allowing it to tolerate high inrush currents typical in power conversion applications.
The dimensions of the Bourns CD-DF410S are 10.6mm in length, 8.2mm in width, and 1.55mm in height.
It operates within a wide temperature range from -55°C to 175°C, making it suitable for various environments.
The CD-DF410S features a surface mount package type, which allows for compact PCB layouts and automated assembly.
This model has a 4-pin configuration, facilitating easy integration into standard PCB designs.
The peak forward voltage drop for the CD-DF410S is 950mV, optimizing power conversion efficiency.
No, the Bourns CD-DF410S is not intended for automotive compliance and is focused on general-purpose industrial applications.
It employs a single-phase configuration, ensuring polarity consistency regardless of AC input orientation.
This model is suitable for industrial electronics, such as power supplies for automation equipment, control panels, and laboratory instruments.
The Bourns CD-DF410S is part of the CD-DF4 series, which includes various bridge rectifiers designed for demanding applications.
