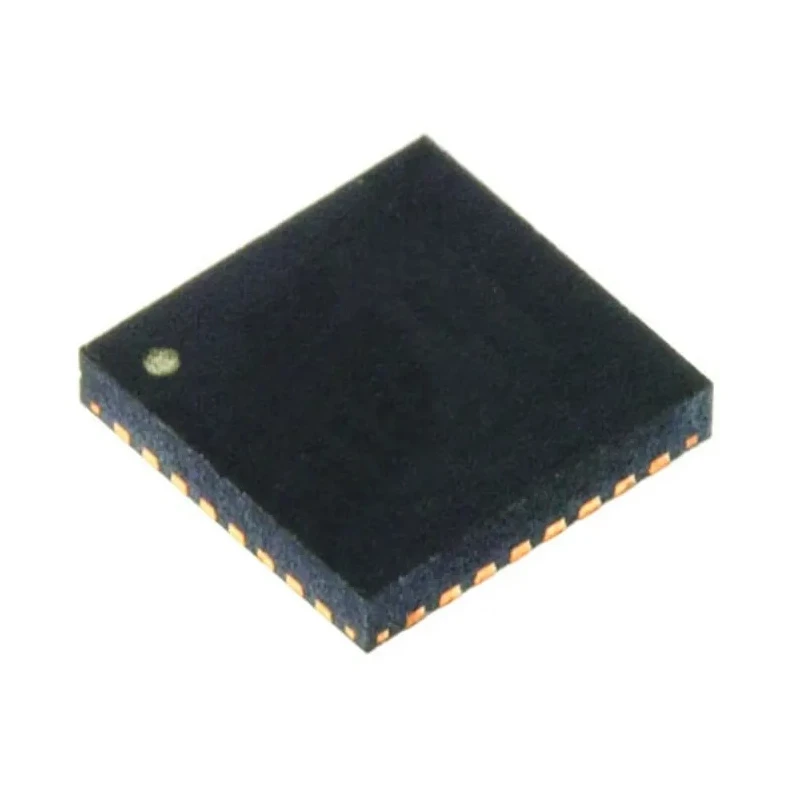

Infineon CMOS System-On-Chip, 32-Pin QFN, 24MHz, 8kB Flash, 3-5.25V CY8C23533-24LQXI
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 0.53mm |
| Length | 5mm |
| Model | CY8C23533-24LQXI |
| Technology | CMOS |
| Width | 5mm |
| Mount Type | Surface |
| Series | CY8C23xxx |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 32 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 3V |
| Program Memory Size | 8kB |
| Program Memory Type | FLASH |
| Clock frequency | 24MHz |
| Number of I/Os | 26 |
| Processing Unit | Microprocessor |
Key Features
- Based on M8C microcontroller core with configurable analog and digital blocks.
- Supports surface mount installation with QFN package and 32 pins.
- Features 24MHz clock frequency for reliable embedded applications.
- Program memory type is FLASH with 8kB capacity.
- SRAM data RAM with 256 bits for quick access and execution.
- Operates between 3V and 5.25V supply voltage.
- Suitable for industrial and commercial embedded systems and electronics.
- Absolute max operating temperature is 85°C and min is -40°C.
Product Description
Infineon CY8C23533-24LQXI CMOS System-On-Chip offers advanced integration for embedded and industrial controls, utilizing the M8C microcontroller core and configurable analog and digital blocks. Designed with a compact QFN package featuring 32 pins, it is ideal for space-constrained designs.
Based on M8C microcontroller core with configurable analog and digital logic blocks, allowing flexible hardware adaptation. Clock frequency of 24MHz provides performance suitable for a range of applications from industrial controllers to consumer electronics.
Extensive program memory of 8kB FLASH and 256bit SRAM enables robust program storage and fast data access. Supports a supply voltage range from 3V to 5.25V, ensuring compatibility with various power sources. Surface mount QFN package type for efficient PCB assembly and high-density layouts.
Operating temperature range from -40°C to 85°C addresses industrial and laboratory environments. Offers 26 I/O channels for interacting with external peripherals and sensors. RoHS compliant for safety, environmental responsibility, and international standards alignment.
Series: CY8C23xxx, well known for programmable system-on-chip versatility. Compact design: 5mm x 5mm footprint with 0.53mm height, perfect for miniaturized PCBs. Appropriate for industrial automation, laboratory instrumentation, and commercial projects requiring highly integrated system solutions.
Typical use cases include manufacturing controls, data acquisition, smart devices, and custom embedded applications across industries. Explore more Microcontrollers and system-on-chips from Infineon and other leading brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The CY8C23533-24LQXI operates at a clock frequency of 24MHz, suitable for various embedded applications.
It features an 8kB FLASH program memory, allowing for robust program storage.
The supply voltage range for the CY8C23533-24LQXI is from 3V to 5.25V, ensuring compatibility with different power sources.
The QFN package has a compact footprint of 5mm x 5mm and a height of 0.53mm, making it ideal for space-constrained designs.
It provides 26 I/O channels for interfacing with external peripherals and sensors.
The operating temperature range is from -40°C to 85°C, suitable for industrial and laboratory environments.
This model supports surface mount installation with its QFN package.
It is based on CMOS technology, which is common in microcontroller applications.
Yes, this microcontroller is RoHS compliant, aligning with safety and environmental standards.
The minimum operating temperature is -40°C and the maximum is 85°C.
The CY8C23533-24LQXI belongs to the CY8C23xxx series, known for its programmable system-on-chip versatility.
It has a SRAM data RAM capacity of 256 bits, allowing for quick access and execution.
