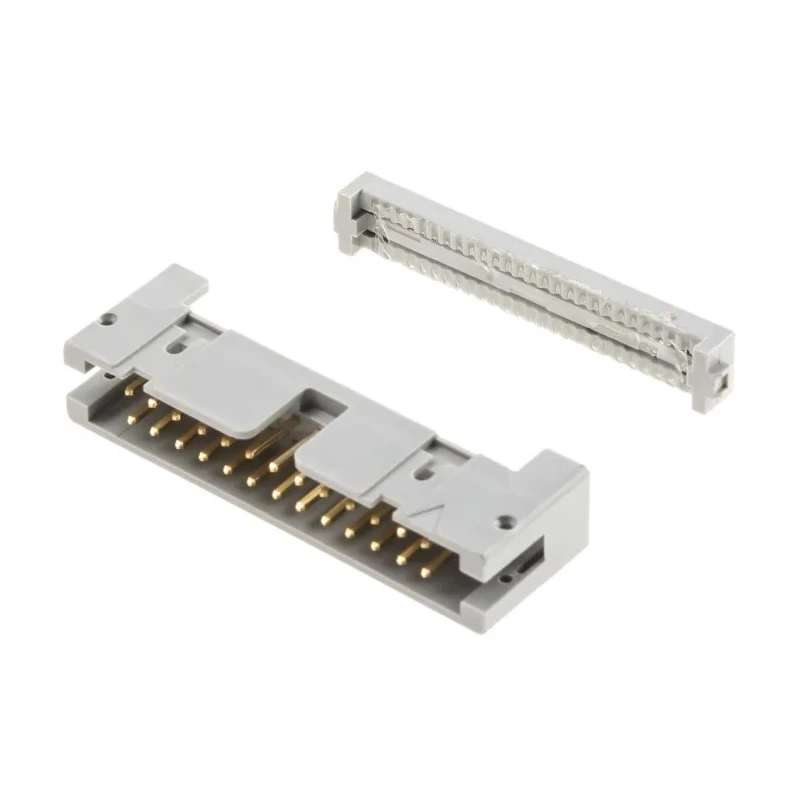

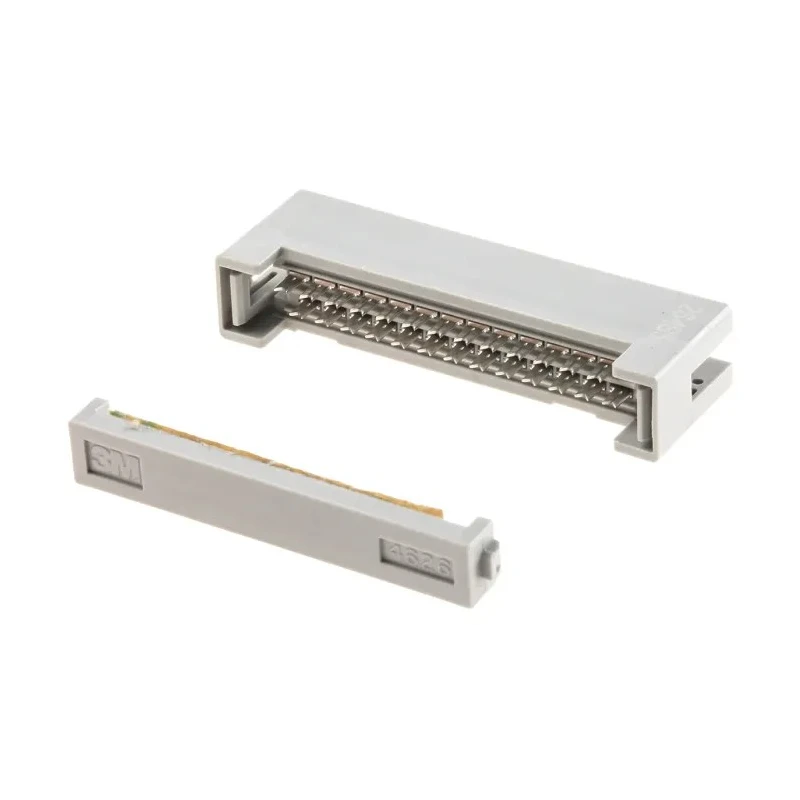

3M 26-Way IDC Connector Male for Cable Mount, Shrouded, 2 Row, 125V, 1A Current, Series 4600, Model 4626-6001

3M 4626-6001 IDC Connector Male is a 26-way, 2-row cable mount connector part of the 4600 series designed for effective and secure insulation displacement contact (IDC) applications. Operating with a voltage rating of 125V and a current capacity of 1A, it is ideal for industrial, telecommunications, and commercial computing applications requiring robust electrical connections.

The connector incorporates a shrouded design that protects delicate pins from physical and chemical damage while maintaining easy access for wiring. Its gold-plated copper contacts ensure excellent electrical conductivity, accurately transmitting signals in harsh environments. This connector supports flat ribbon cables and discrete solid or stranded wires sized between 26 and 28 AWG.

With a standard 2.54mm pitch, the connector is poised to fit industry-standard 1.27mm-pitch ribbon cables, facilitating straightforward integration into existing systems. The right-angle orientation helps save space in system assemblies, while the durable glass-filled polybutylene terephthalate housing combines mechanical strength with superior dielectric properties.

The operational temperature range of -55°C to +105°C allows for reliable performance across a broad spectrum of environmental conditions. This makes the 3M IDC connector well-suited for rugged industrial and commercial installations.

Shrouded connector design guards pins from damage. Gold plating on copper contacts improves conductivity and signal integrity. Supports 26 to 28 AWG solid and stranded wire termination. Right-angle form factor enhances space-saving designs.

Glass-filled PBT housing provides mechanical robustness and dielectric strength. Temperature tolerance from -55°C to +105°C ensures durability in harsh conditions. Easy IDC termination reduces assembly time by avoiding wire stripping.

Complies with the 4600 series for standardized application use. Recommended for telecommunications and commercial networking equipment.

This 3M IDC Connector is an excellent choice when reliable, space-efficient wiring solutions are needed in industrial, telecommunications, and commercial settings. For comprehensive product line details and tooling support, refer to 3M's official documentation and datasheets.
