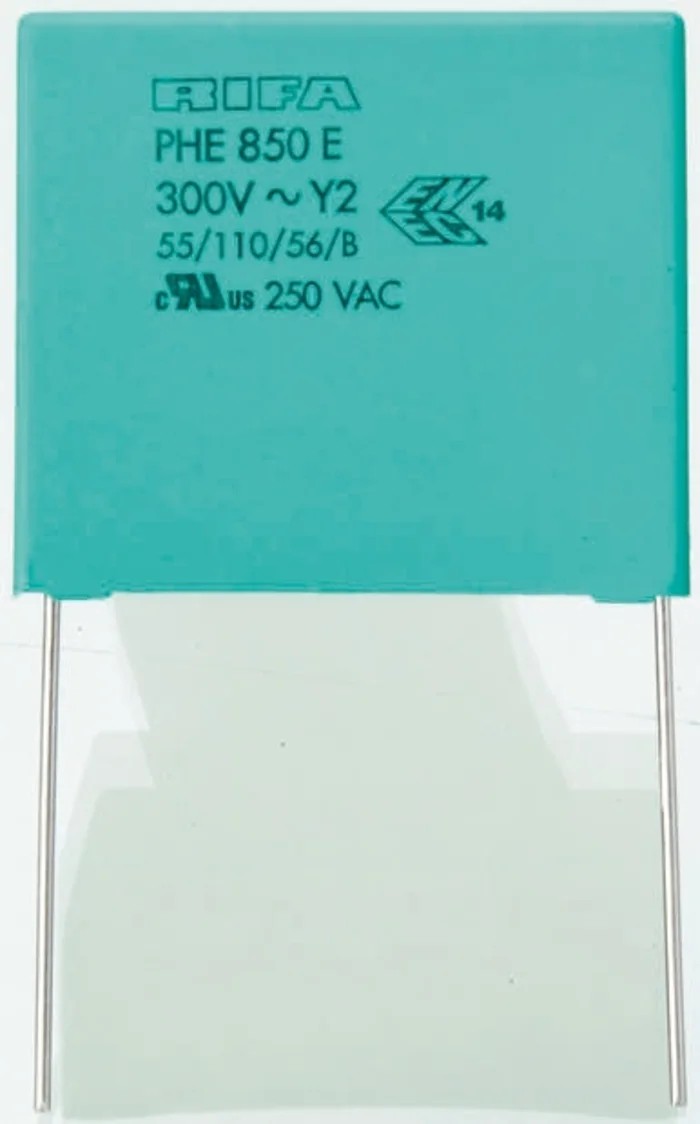

KEMET PHE850 Film Capacitor Y2, ±20%, 1 nF, 1.25 kV DC, 300V AC, Through Hole PHE850

Name: KEMET PHE850 Film Capacitor Y2, ±20%, 1 nF, 1.25 kV DC, 300V AC, Through Hole PHE850
Brand: KEMET
SKU: 99999
Price: 0.25 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	Indonesia
Brand	KEMET
Height	8mm
Length	13mm
Model	PHE850
Width	4mm
Mount Type	Through Hole
Series	PHE850
Maximum Operating Temperature	110°C
Tolerance	±20 %
Capacitance	1nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.3%
Lead Length	17mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	300V ac
Rated DC Voltage	1.25kV dc
Lead Pitch	10mm
Lead Diameter	0.6mm
Suppression Class	Y2

Key Features

Features metallised polypropylene film construction encapsulated in self-extinguishing material.
Suitable for EMI suppression and interference applications in Y2 line-to-earth configurations.
Compact dimensions with 13mm length, 8mm height, and 4mm width for versatile PCB use.
Radial terminal type with a 10mm lead pitch and 17mm lead length for reliable soldering.
Operates reliably from -55°C to 110°C ambient temperature range.
Dissipation factor of 0.3% ensuring low energy loss in circuits.
Complies with RoHS standards and meets UL 94V-0 flammability requirements.
Designed for direct connection across mains supply with safety warnings against shock risk if capacitor fails.

Product Description

KEMET PHE850 Film Capacitor Y2, model PHE850, offers a 1 nF capacitance with ±20% tolerance and is rated for 1.25 kV DC and 300V AC voltage. This through-hole mounted capacitor utilizes a winding metallised polypropylene film construction encapsulated in self-extinguishing material compliant with UL 94V-0 requirements.

Designed primarily for EMI suppression and interference reduction in Y2 applications (line-to-earth), the capacitor is compact and low profile with dimensions of 13 mm length, 8 mm height, and 4 mm width. Its radial terminal type with a 10 mm lead pitch and 17 mm lead length ensures stable installation on printed circuit boards.

Operating reliably within the temperature range of -55°C to 110°C, the capacitor features a dissipation factor of 0.3%, contributing to efficient energy utilization and circuit reliability. It meets RoHS standards, ensuring environmental compliance, and carries approvals from ENEC, UL, and CSA.

This capacitor is suitable for industrial electronics, power supplies, HVAC controls, manufacturing equipment, and other applications requiring electromagnetic interference suppression and line-to-earth safety protection.

Warning: While designed for direct connection across mains supply, it must not be used in applications where failure could expose users to electric shock risks, necessitating careful circuit design and safety compliance.

Metallised polypropylene film construction ensures stability and reliability. Encapsulation in self-extinguishing material provides enhanced safety. Compact size enables integration in space-restricted PCB assemblies. Wide operating temperature range supports various industrial environments.

Low dissipation factor minimizes energy loss. Meets international safety and environmental standards. Suitable for Y2 EMI suppression applications in electrical systems. Radial terminal type and lead dimensions optimize installation.

For those seeking high-quality capacitors for electronic and industrial applications, browse KEMET Film Capacitors in the Electronics Components category on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The capacitance value of this model is 1 nF with a tolerance of ±20%.

It is rated for a maximum DC voltage of 1.25 kV and an AC voltage of 300V.

This unit operates reliably within a temperature range of -55°C to 110°C.

The dissipation factor is 0.3%, which contributes to low energy loss in circuits.

This model features a through-hole mounting type with a radial terminal configuration.

The dimensions are 13 mm in length, 8 mm in height, and 4 mm in width.

The lead pitch is 10 mm, and the lead length is 17 mm.

It is suitable for EMI suppression and interference reduction in Y2 line-to-earth configurations.

This capacitor complies with RoHS standards and meets UL 94V-0 flammability requirements.

It features a metallised polypropylene film construction encapsulated in self-extinguishing material.

This model has 2 pins, which are used for its radial terminal connection.

While designed for direct connection across mains supply, it must not be used in applications where failure could expose users to electric shock risks.
