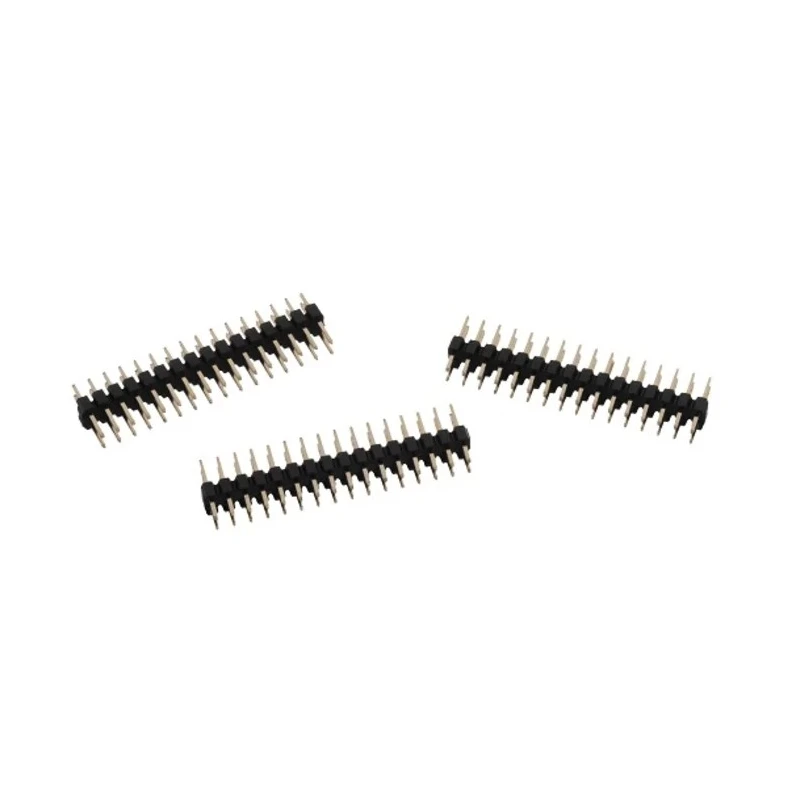

Wurth Elektronik WR-PHD Series Straight PCB Header, 20 Contacts, 2 mm Pitch, 2 Row, 200V, 2A 62002021121
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 200V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 2A |
| Housing Material | Polyamide 9T |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Durability | 25 mating cycles |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Standards/Approvals | REACh Approval Conform or declared, RoHS Approval, UL Approval E323964 |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Mating Pin Length | 4mm |
Key Features
- Offers durable and robust 2-row header design for high-density electronic circuits.
- Gold-plated copper alloy contacts provide excellent conductivity and corrosion resistance.
- Supports a rated voltage up to 200V and a current of 2A per contact, suitable for various power and signal PCB applications.
- Polyamide 9T housing ensures high mechanical strength and heat resistance with an operating range from -40°C to 105°C.
- Features a 2 mm contact pitch, ideal for compact board layouts in industrial and electronic devices.
- Compliant with REACh, RoHS, and UL E323964 safety standards for global application compatibility.
- Straight orientation and THT (through-hole technology) mounting simplify assembly and enable secure board attachment.
- 25 mating cycle durability for reliable long-term operation in manufacturing and lab settings.
Product Description
Wurth Elektronik presents the WR-PHD Series Straight PCB Header, model 62002021121, engineered to deliver secure, high-density connections in printed circuit board applications. This robust connector features 20 gold-plated copper alloy contacts arranged in two straight rows with a precise 2 mm pitch, making it ideal for compact and demanding electronic environments.
The WR-PHD series header supports voltages up to 200V and is rated for 2A current per contact, allowing it to handle power and signal lines for a wide range of industrial, laboratory, and commercial electronics systems. Its male contacts and straight orientation cater to ease of mating and reliable interconnection between board assemblies.
Constructed with a Polyamide 9T (PA9T) insulator, this header is designed for high mechanical strength and excellent thermal stability, offering an operating temperature range from -40°C to 105°C. The gold-plated contacts minimize resistance and enhance long-term corrosion protection, supporting lasting signal quality throughout extended use.
20 contacts for efficient multi-line connectivity. 2 mm row and pitch for PCB space-saving applications. Copper alloy contacts with gold plating for superior conductivity. High durability with 25 specified mating cycles.
UL94 V-0 flammability rated housing material. THT (through-hole technology) mounting for secure, stable placement on PCBs.
Meeting REACh, RoHS, and UL E323964 standards, the WR-PHD series header is suitable for global design requirements and compliance-focused industries. The male contact gender enables standardized pin-receptacle arrangements for compatibility with a diverse range of PCB sockets and connectors.
This PCB Header is widely used across industrial automation, instrumentation, communication hardware, test and measurement equipment, consumer electronics, and other applications requiring high-density, reliable, and easy-to-integrate PCB interconnect solutions.
Explore more advanced electronic and connector components from Wurth Elektronik and related PCB technologies in our Electronics & Electricals categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a rated voltage of up to 200V, making it suitable for various power and signal PCB applications.
Each contact in this header is rated for a current of 2A, allowing for efficient power distribution in electronic circuits.
The contact pitch is 2 mm, which is ideal for compact board layouts in high-density electronic circuits.
The housing is made from Polyamide 9T, which provides high mechanical strength and heat resistance.
This model features 20 contacts arranged in two rows, facilitating efficient multi-line connectivity.
It operates within a temperature range of -40°C to 105°C, suitable for various environmental conditions.
It utilizes through-hole technology (THT) mounting, which simplifies assembly and ensures secure attachment to PCBs.
This header is rated for 25 mating cycles, ensuring reliable long-term operation in manufacturing and lab settings.
It complies with REACh, RoHS, and UL E323964 safety standards, making it suitable for global application compatibility.
The contacts are made from copper alloy and are gold-plated to enhance conductivity and corrosion resistance.
The contacts are arranged in a straight orientation, which facilitates ease of mating with compatible connectors.
This model is suitable for applications in industrial automation, instrumentation, communication hardware, and consumer electronics.
