| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-B12-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 100nA |
| Nominal Zener Voltage Vz | 12V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 150Ω |
| Typical Voltage Temperature Coefficient | 6mV/K |

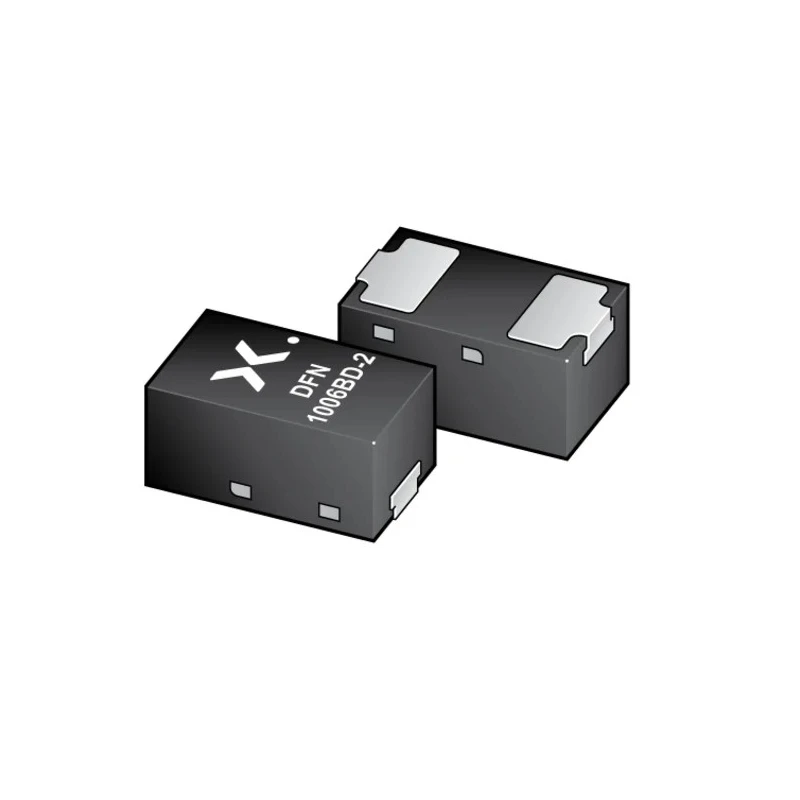

The Nexperia BZX884S-B12-QYL Zener Diode is engineered for reliable voltage regulation and protection in sensitive electronic circuits. With a nominal Zener voltage of 12V and a tight ±2% voltage tolerance, this diode delivers consistent performance for precision applications in industrial, automotive, and electronic systems.
Its compact DFN1006BD-2 surface mount package allows integration into high-density PCB layouts, saving valuable board space while maintaining electrical integrity. Supporting a maximum power dissipation of up to 365 mW, the BZX884S-B12-QYL is ideal for clamping, voltage reference, and transient suppression tasks where low-profile and reliable components are required.
The device offers a single-element configuration, with a maximum Zener impedance of 150Ω and a low reverse leakage current of 100 nA, ensuring efficient operation and minimal energy losses even at high frequencies or elevated temperatures. The Zener voltage temperature coefficient of 6 mV/K allows for predictable voltage behavior under changing thermal conditions, making it suitable for environments with significant temperature variation.
Nominal breakdown voltage of 12V for stable voltage reference and over-voltage protection tasks. 2-pin, DFN1006BD-2 package designed for automated surface mount assembly and reflow soldering. Qualified to AEC-Q101, making it suitable for mission-critical automotive systems.
Extensive operating temperature range from -55°C to +150°C ensures functionality in diverse climates. Meets RoHS compliance for environmentally responsible manufacturing and assembly processes. Maximum power rating of 365 mW ensures protection longevity in various design scenarios.
This general-purpose Zener diode is ideal for use in power supplies, voltage regulators, sensing circuits, automotive electronics, industrial controls, and signal conditioning modules where precise voltage management is necessary. Its robust construction supports high-reliability design in both commercial and automotive grade assemblies.
Browse more Zener Diodes and semiconductor components from Nexperia to equip your electronic designs with high-quality, dependable solutions, only on EnvMart.
