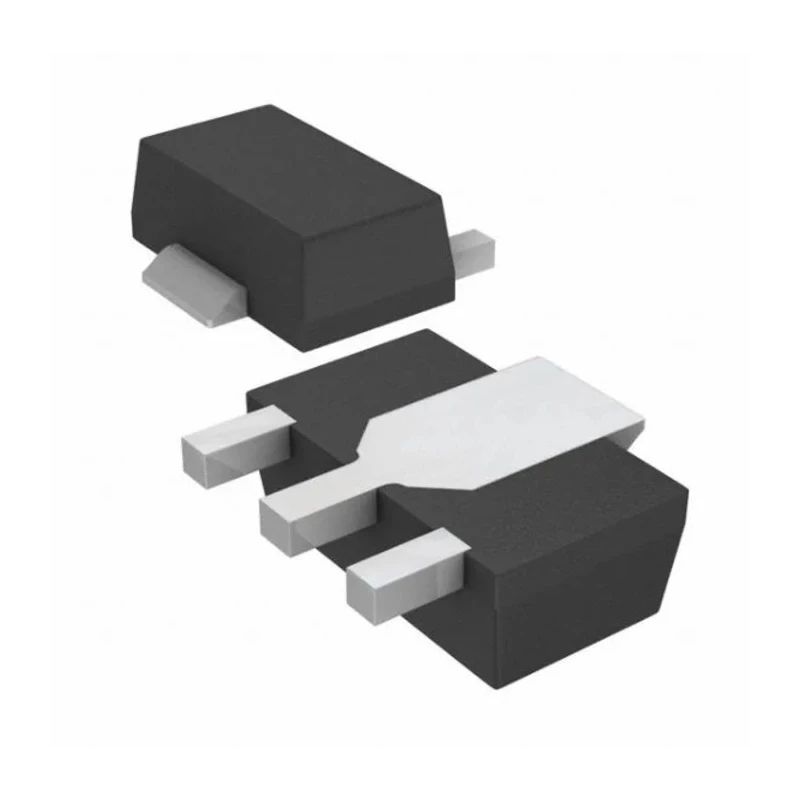

STMicroelectronics Voltage Regulator 18V, Low Dropout, 200mA Output, LDK320AU50R
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics LDK320AU50R, Voltage Regulator 18V RS Stock No |
| Brand | STMicroelectronics |
| Model | LDK320AU50R |
| Maximum Operating Temperature | 125°C |
| Maximum Input Voltage | 18V |
| Maximum Output Current | 200 mA |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 2.5V |
| Dropout Voltage | 100 mV |
Key Features
- Low dropout voltage regulator IC offering stable performance.
- Operates with input voltages from 2.5V to 18V.
- Maximum output current up to 200mA enables use in low power devices.
- Integrated ceramic capacitor stabilization for improved output.
- Enable logic control allows shutdown mode with very low quiescent current.
- High PSRR (88 dB at 120 Hz) minimizes output noise.
- Current, SOA and thermal protections ensure device safety.
- RoHS-compliant for environmental safety.
Product Description
STMicroelectronics LDK320AU50R Voltage Regulator IC combines high reliability and efficient power management for modern electronic applications. Designed for use in battery-powered devices and circuit boards, it is suitable for both commercial and industrial projects where stable voltage output is crucial.
This low drop voltage regulator provides a maximum output current of 200mA from input voltages ranging between 2.5V and 18V. It boasts a typical dropout voltage of just 100mV at 100mA load, making it an excellent choice for low power situations.
The LDK320AU50R offers high PSRR of 88 dB at 120 Hz, guaranteeing low noise operation and consistent performance. Its quiescent current is typically 60μA, dropping to below 1μA in shutdown mode, which is ideal for energy-conscious designs.
Logic-controlled electronic shutdown and compatibility with ceramic capacitor (COUT = 1μF) further enhance flexibility and integration possibilities. Built-in current, SOA and thermal protections safeguard both the regulator and connected components.
Low dropout voltage ensures stable regulation. Wide input voltage range (2.5V - 18V) supports numerous power sources. Maximum output current 200mA handles various low-power loads. Enable logic control reduces power consumption in standby mode.
RoHS compliant for safe, sustainable electronic design.
Industrial, laboratory and commercial electronics benefit from these robust Voltage Regulator ICs, which can be used in sensor circuits, embedded controllers, automotive and power management assemblies.
Explore EnvMart’s full range of STMicroelectronics integrated circuits and voltage regulation components for your next design or maintenance project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LDK320AU50R operates with input voltages ranging from 2.5V to 18V.
This voltage regulator can provide a maximum output current of 200mA.
The typical dropout voltage for this model is 100mV at a 100mA load.
In shutdown mode, the quiescent current drops to below 1μA, making it suitable for energy-efficient designs.
The LDK320AU50R includes built-in current, SOA, and thermal protections to ensure device safety.
Yes, the LDK320AU50R is RoHS compliant, ensuring it meets environmental safety standards.
The maximum operating temperature for this voltage regulator is 125°C.
This model is compatible with ceramic capacitors, specifically designed for COUT = 1μF.
It is suitable for various applications including sensor circuits, embedded controllers, automotive, and power management assemblies.
The LDK320AU50R has a high Power Supply Rejection Ratio (PSRR) of 88 dB at 120 Hz, minimizing output noise.
The minimum input voltage for the LDK320AU50R is 2.5V.
The enable logic control allows the regulator to enter a shutdown mode, significantly reducing power consumption in standby mode.
