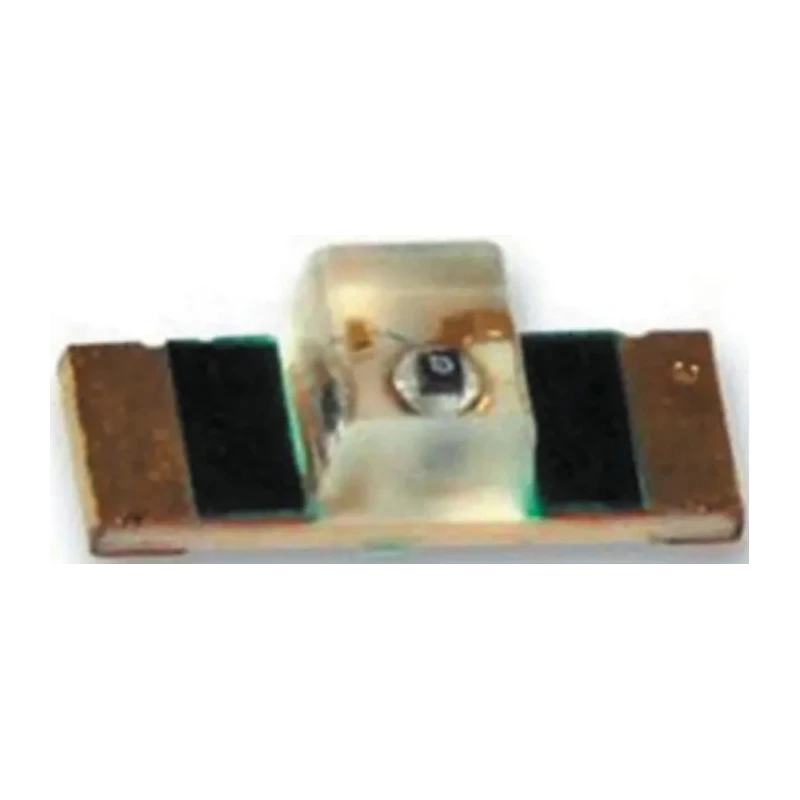

Broadcom 2.2 V Green LED 3412 Surface Chip LED HSMG-C265
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HSMG-C265 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | Chip LED |
| Maximum forward current | 25mA |
| Viewing angle | 170 ° |
| Package Type | 3412 |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 572nm |
| Forward Voltage | 2.2V |
| Number of Pins | 2 |
| LED Luminosity | 15 mcd |
| Maximum Power Dissipation | 65mW |
| Lens Dimensions | 3.4 x 1.25 x 1.1 mm |
| Lens Shape | Rectangular |
| Lens Finish | Non-Diffused |
Key Features
- This LED features a compact 3412 surface mount package suitable for automated assembly.
- Boasts a maximum forward current of 25mA and forward voltage of 2.2 V for efficient operation.
- Designed with a wide viewing angle of 170 degrees for excellent visibility.
- Its dominant wavelength is 572 nm, providing a bright green light output of 15 mcd.
- The LED lens is rectangular with non-diffused clear finish for focused light emission.
- Complies with RoHS standards ensuring environmental safety and quality.
- Ideal for LCD backlighting, keypad, push-button backlighting, and front panel indicators.
- Operates reliably in temperatures ranging from -40°C to +85°C.
Product Description
Broadcom HSMG-C265 2.2 V Green LED 3412 Surface Chip LED is a high-quality surface mount LED designed for a variety of industrial and electronic applications. This LED features a compact 3.4 x 1.25 x 1.1 mm package with a rectangular lens providing a bright 15 mcd green light with a dominant wavelength of 572 nm. With a wide 170° viewing angle, it ensures excellent visibility making it ideal for LCD backlighting and side-lighting applications.
This model supports a maximum forward current of 25 mA and dissipates up to 65 mW of power, while operating at a forward voltage of 2.2 V. Its non-diffused clear lens delivers focused illumination, suitable for keypad backlighting, push-button illumination, symbol backlighting, and front panel indicators in various industrial and commercial environments.
Engineered to the Avago HSMx-C265 series standards, the chip LED uses a surface mount technology footprint compatible with IR soldering, ensuring ease of assembly and long-term reliability. The operating temperature range of -40°C to +85°C ensures stable performance in harsh conditions.
The packaging is done in Tape & Reel format for efficient integration into automated production lines. Additionally, the LED complies with RoHS environmental directives, guaranteeing a safe and quality component.
Compact 3412 surface mount LED package. Maximum forward current of 25mA and forward voltage of 2.2 V. Wide 170° viewing angle with bright 15 mcd green light output. Rectangular, non-diffused clear lens for precise illumination.
RoHS compliant for environmental safety. Ideal for LCD backlighting and panel indicator applications. Operating temperature from -40°C to +85°C for industrial reliability. Includes Tape & Reel packaging for manufacturing efficiency.
Industry-standard footprint compatible with IR soldering. Part of the Avago HSMx-C265 series chip LEDs.
This Broadcom green chip LED is perfectly suited for industrial, commercial electronics, automotive indicators, and manufacturing applications requiring reliable and consistent LED lighting components. Browse more LED components and related electronic parts on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this model is 25 mA.
The forward voltage of this LED is 2.2 V.
It features a wide viewing angle of 170 degrees.
The dominant wavelength of this LED is 572 nm, producing a bright green light.
The LED luminosity is rated at 15 mcd.
The lens dimensions are 3.4 x 1.25 x 1.1 mm.
This model is packaged in Tape & Reel format, suitable for automated assembly.
It operates reliably within a temperature range of -40°C to +85°C.
Yes, the HSMG-C265 complies with RoHS standards for environmental safety.
This model supports surface mounting technology.
It is ideal for applications such as LCD backlighting, keypad illumination, and front panel indicators.
The HSMG-C265 has 2 pins.
