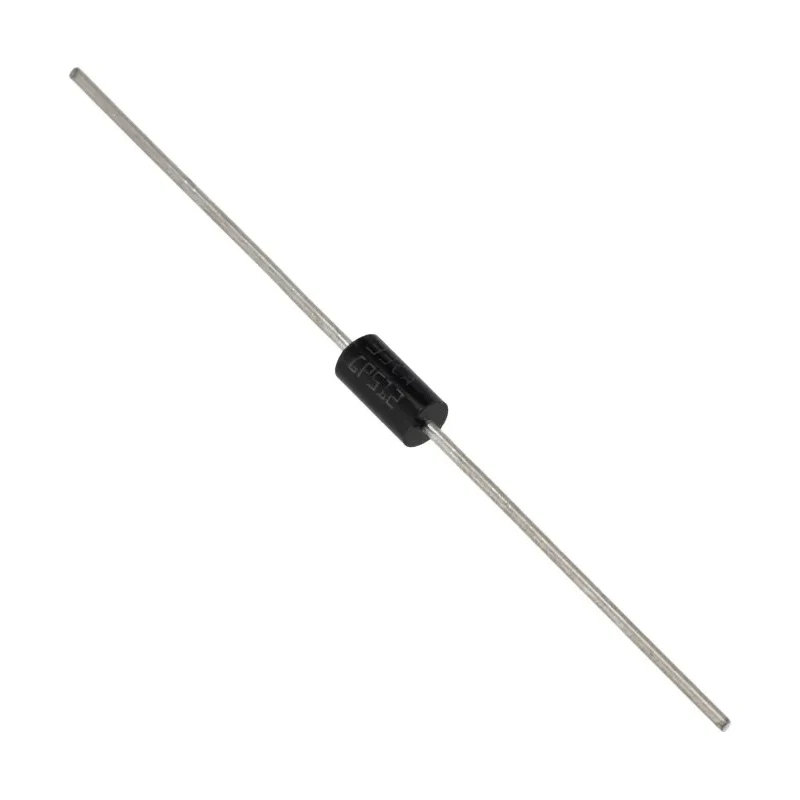

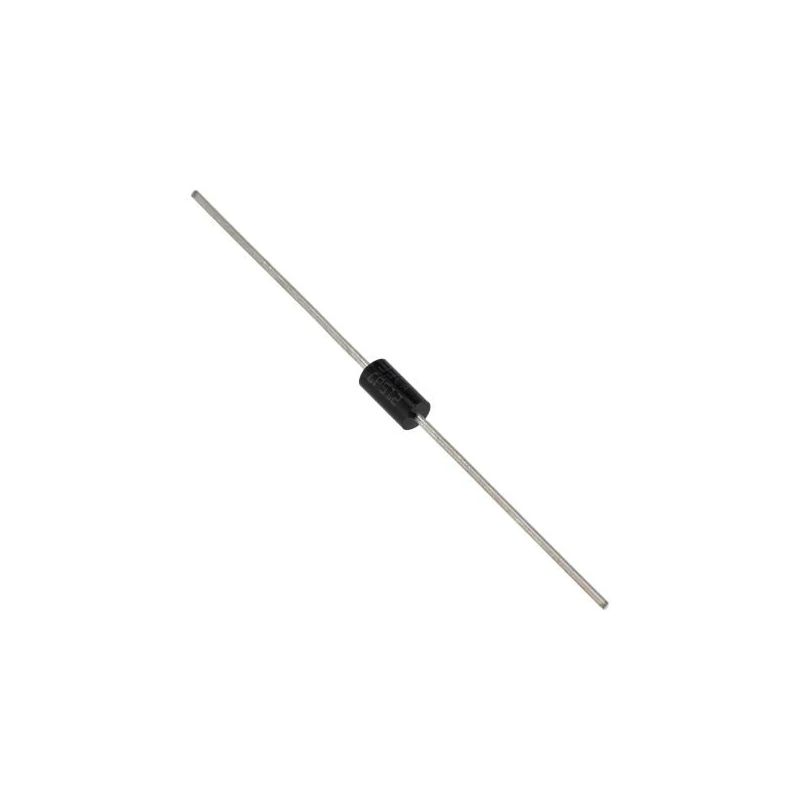

STMicroelectronics 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-15 P6KE33CA

STMicroelectronics P6KE33CA is a 1-element bi-directional Transient Voltage Suppressor (TVS) diode engineered to protect electronic circuits from transient voltage spikes. It delivers a robust peak pulse power dissipation of 600 W and is housed in a compact DO-15 axial through-hole package with 2 pins, making it ideal for a variety of electronic applications requiring reliable voltage transient protection.

This TVS diode features a single diode configuration with bi-directional voltage clamp capability, suitable for protecting sensitive circuitry in automotive, industrial, and consumer electronics environments. It operates efficiently over a wide temperature range from -65°C up to 175°C, ensuring consistent performance in extreme thermal conditions.

The device offers a minimum breakdown voltage of 31.4 V with a maximum reverse stand-off voltage of 28.2 V, effectively safeguarding components against voltage surges. Its clamping voltage of 59 V and maximum peak pulse current of 68 A provide strong transient suppression, minimizing damage risks during voltage spikes or electrostatic discharge events.

Compact in size with dimensions approximately 3.53 mm in diameter, 6.75 mm in length, and 3.53 mm in height and width, the P6KE33CA TVS diode is suited for space-constrained PCB layouts. Its through-hole mount type facilitates easy and secure installation.

Single diode configuration for focused transient voltage protection. Bi-directional operation for versatile application in AC or DC circuits. High peak pulse power dissipation rating of 600 W for robust protection. Wide temperature operating range assures reliability across diverse environments.

Standard DO-15 axial package with 2 pins for versatile mounting options. Clamping voltage and breakdown voltage optimized for effective surge clamping. Low maximum reverse leakage current of 1 μA conserves power. Automotive standard not applicable, suitable for general electronic components.

This STMicroelectronics TVS Diode is an essential component for protecting power supplies, data lines, and sensitive semiconductor devices in industrial, commercial, laboratory, automotive, and manufacturing applications. Using the P6KE33CA ensures enhanced product reliability and longevity by mitigating the risk of transient voltage damage.
