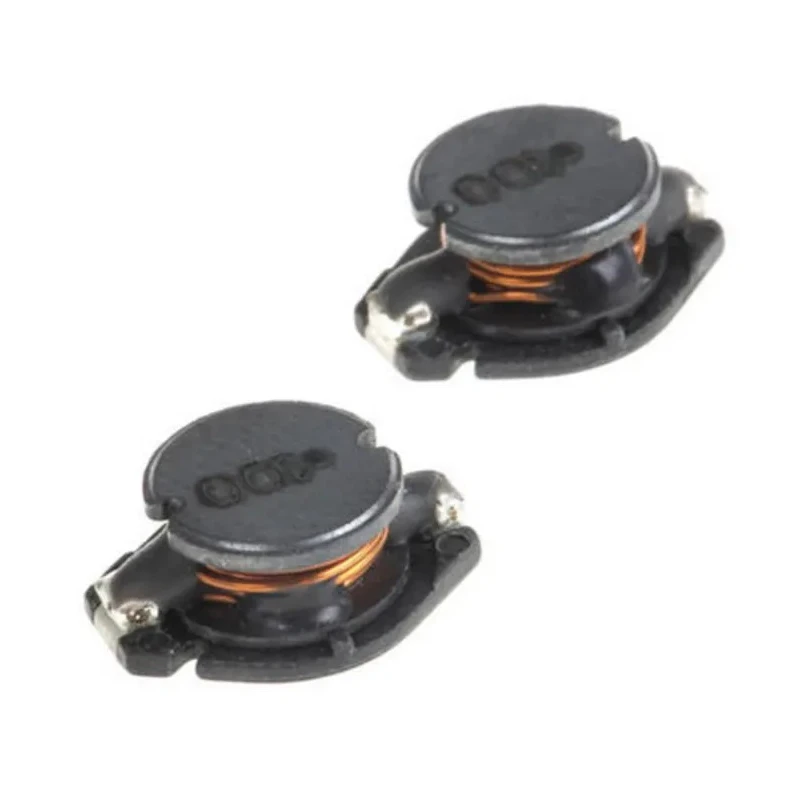

Wurth Elektronik WE-PD4 Unshielded Wirewound Surface Mount Inductor, Ferrite Core, 10μH ±20%, 3.3A 7445610
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 5mm |
| Length | 12.7mm |
| Model | 7445610 |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-PD4 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B |
| Maximum DC Current | 3.3A |
| Pin Count | 2 |
| Maximum DC Resistance | 45mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 23MHz |
| Inductor Construction | Wirewound |
Key Features
- Wirewound surface mount inductor designed for compact PCB layouts.
- Features a ferrite core for efficient energy storage and low losses.
- Inductance rated at 10μH with ±20% tolerance for stable operation.
- Maximum DC current of 3.3A suitable for power handling in SMPS circuits.
- Surface mount termination, supplied as tape & reel for automated assembly.
- Maximum DC resistance is 45mΩ and self-resonant frequency up to 23MHz.
- RoHS, REACH, and JEDEC JS709B compliant for quality assurance.
- Operating temperature range from -40°C to +125°C.
Product Description
Wurth Elektronik 7445610 WE-PD4 Unshielded Wirewound Surface Mount Inductor is engineered for high-efficiency power applications such as switch mode power supplies and interference suppression. This inductor utilizes a ferrite core for low energy losses and reliable performance across a wide range of frequencies up to 10MHz.
With an inductance rated at 10μH ±20% and a maximum DC current of 3.3A, the component is ideal for handling medium to high current demands in compact electronic circuits.
The surface mount design facilitates automated assembly, and its packaging format (tape and reel) improves production throughput for manufacturers. The physical dimensions - length 12.7mm, depth 10mm, and height 5mm - allow for space-saving integration into densely populated PCBs.
Wirewound construction for optimal inductive properties. Ferrite core reduces electromagnetic interference and energy losses. Maximum DC resistance rated at 45mΩ ensures efficiency in current flow. Self-resonant frequency up to 23MHz provides stability in high-frequency applications.
Complies with RoHS, REACH, and JEDEC JS709B standards for environmental and quality safety.
The WE-PD4 series provides reliable inductive performance in a broad operating temperature range from -40°C to 125°C. Its robust build is non-moulded and unshielded, optimizing cost while maintaining performance.
Applications include SMPSUs, energy storage, and interference suppression in industrial, commercial, and automotive electronics (where automotive standards are not required).
Ideal for electronics manufacturing, laboratory prototyping, and commercial PCB builds requiring precision inductors. Explore more passive components and surface-mount inductors under the Wurth Elektronik brand in the Surface Mount Inductor category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is rated at 10μH with a tolerance of ±20%.
This model can handle a maximum DC current of 3.3A, making it suitable for power handling in various applications.
The dimensions of this inductor are 12.7mm in length, 10mm in depth, and 5mm in height.
The maximum self-resonant frequency of this inductor is up to 23MHz, providing stability in high-frequency applications.
It utilizes a ferrite core, which helps reduce energy losses and electromagnetic interference.
The maximum DC resistance is rated at 45mΩ, ensuring efficient current flow.
The operating temperature range for this inductor is from -40°C to +125°C.
It is supplied in tape and reel packaging, which facilitates automated assembly processes.
This inductor complies with RoHS, REACH, and JEDEC JS709B standards for quality assurance.
It features a surface mount termination style, suitable for compact PCB layouts.
This inductor is suitable for applications in switch mode power supplies, energy storage, and interference suppression.
The construction type of this inductor is wirewound, which optimizes its inductive properties.
