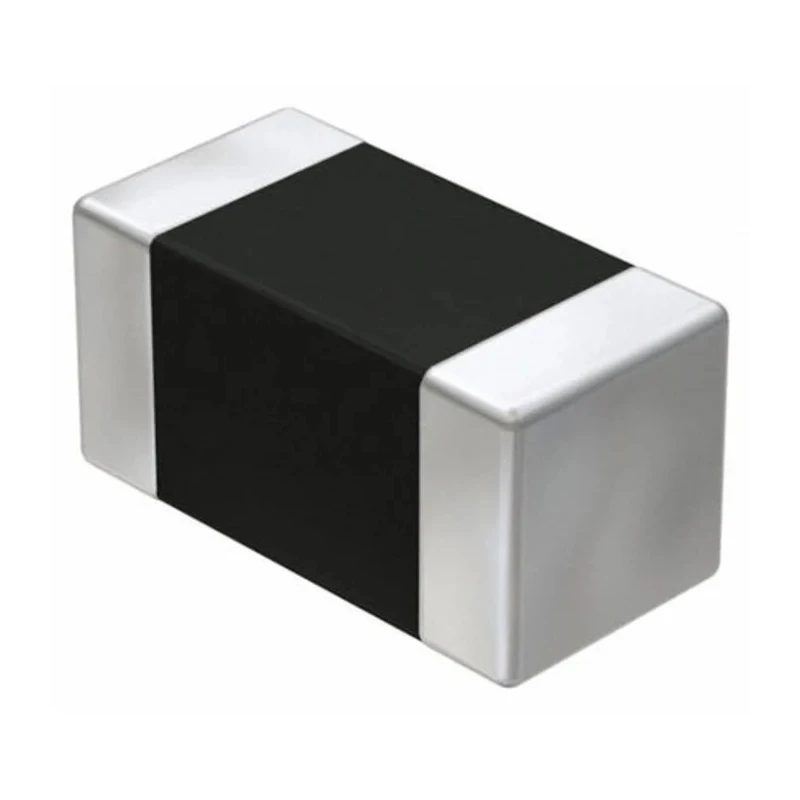

Wurth Elektronik WE-CBF 1812 Shielded Multilayer Surface Mount Inductor, Ferrite Core, 3A Idc 742792515
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.5mm |
| Length | 4.5mm |
| Depth | 3.2mm |
| Packaging | Tape & Reel |
| Series | WE-CBF |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Standards/Approvals | RoHS, REACH |
| Package/Case | 1812 |
| Maximum DC Current | 3A |
| Pin Count | 2 |
| Maximum DC Resistance | 50mΩ |
| Termination Style | Surface Mount |
| Inductor Construction | Multilayer |
| Automotive Standard | AEC-Q200 |
| High Current | Current supply, DC/DC converter etc |
| Wide Band | Control signals, RS232, RS422, DC/DC converter, etc |
Key Features
- Features a ferrite core for high performance and low DC resistance.
- Shielded multilayer construction supports a maximum DC current of 3A.
- Surface mount design enables compact PCB integration.
- Meets automotive AEC-Q200 standards for durability and reliability.
- Operating temperature from -55°C up to 125°C for versatile environments.
- RoHS and REACH compliant for global use.
Product Description
Wurth Elektronik 742792515 Shielded Multilayer Surface Mount Inductor is engineered for high efficiency and robust EMI suppression in modern electronic assemblies. Combining a ferrite core with multilayer shielding, this inductor is optimized for applications requiring high direct current support and minimal DC resistance.
The WE-CBF series employs advanced multilayer construction and Ni-Sn electrodes, ensuring enhanced anti-EMI properties and dependable surface-mount performance. The device is ideal for data line filtering, voltage de-coupling, and integration in signal circuits where reliable high current handling up to 3A is essential.
Features a ferrite core for high performance and low DC resistance. Shielded multilayer construction supports a maximum DC current of 3A. Surface mount design enables compact PCB integration. Meets automotive AEC-Q200 standards for durability and reliability.
Operating temperature from -55°C up to 125°C for versatile environments. RoHS and REACH compliant for global use.
The compact 1812 package (4.5mm x 3.2mm x 1.5mm) makes it suitable for high-density PCB layouts. Tape & Reel packaging allows easy machine insertion for production-scale deployments.
Typical industrial and commercial applications include USB 2.0, IEEE 1394, LVDS, control signal filtering (RS232, RS422), DC/DC converters, and current supply circuits in automotive, communications, and consumer electronics.
Compliant with RoHS and REACH standards, and verified for use in AEC-Q200 automotive environments, the WE-CBF 742792515 is a trusted choice for high-speed, wide-band, and high-current industrial electronics projects.
Explore more Wurth Elektronik inductors and passive components in the Surface Mount Inductor category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC current supported by this inductor is 3A.
The dimensions of this inductor are 4.5mm in length, 3.2mm in depth, and 1.5mm in height.
The operating temperature range for this model is from -55°C to 125°C.
This inductor features a ferrite core material.
This inductor is compliant with RoHS and REACH standards, and meets AEC-Q200 automotive standards.
The inductor is packaged in Tape & Reel format for easy machine insertion.
It is suitable for applications such as USB 2.0, IEEE 1394, LVDS, control signal filtering (RS232, RS422), and DC/DC converters.
The maximum DC resistance of this inductor is 50mΩ.
This inductor has a pin count of 2.
This inductor features a multilayer construction.
This inductor can filter control signals such as RS232 and RS422, as well as DC/DC converter signals.
AEC-Q200 compliance indicates that this inductor meets rigorous automotive industry standards for reliability and durability.
