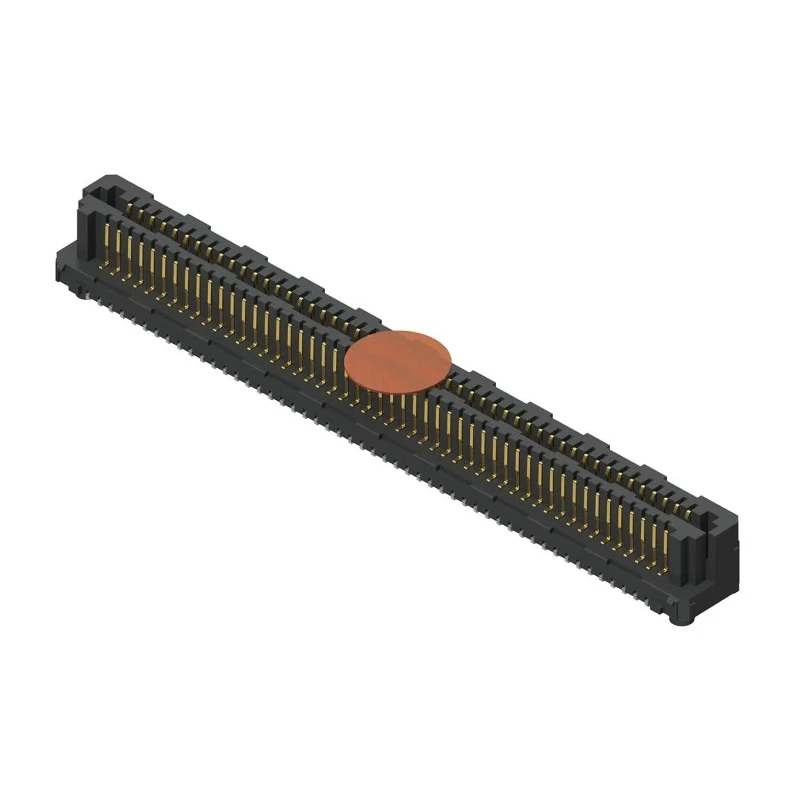

Samtec Straight Surface PCB Header, 100 Contacts, 0.8 mm Pitch, 2 Row, Shrouded LSEM-150-04.0-L-DV-A-N-K-TR

Samtec LSEM-150-04.0-L-DV-A-N-K-TR is a straight surface PCB header designed for advanced board-to-board connectivity. As part of the LSEM series, this connector provides high-speed, high-density electrical linking with 100 contacts arranged in two rows, featuring 0.8 mm pitch.

Suitable for high-speed, high-density PCB interconnections. Features a slim, ruggedized and shrouded housing for secure connections. Designed for surface mount installation with straight orientation. Gold-plated phosphor bronze contacts ensure reliable conductivity.

Operates within a wide temperature range from -55°C to 125°C. Supports stack heights between 6 mm and 12 mm for design flexibility. Liquid Crystal Polymer housing provides structural integrity. Hermaphroditic, self-mating design reduces inventory complexity.

Rated for up to 1.8A current and 225/318V AC voltage operation. This PCB header supports design flexibility for parallel, perpendicular, and coplanar applications, making it ideal for industrial, electronic, and laboratory environments.

The rugged design is well-suited for demanding board-to-board situations where high retention and reliable interconnections are required. Gold-plated contacts ensure low resistance and durability during frequent mating cycles.

Applications include electronic module assembly, embedded system development, prototyping, and deployment in commercial and industrial installations. The liquid crystal polymer housing offers excellent mechanical strength and thermal stability, enabling use in varied environments.

The hermaphroditic self-mating feature allows inventory simplification and easy stacking, which is essential for scalable manufacturing and design projects. Explore more PCB Headers and Samtec electronic connection solutions in the EnvMart Electronics Components category.
