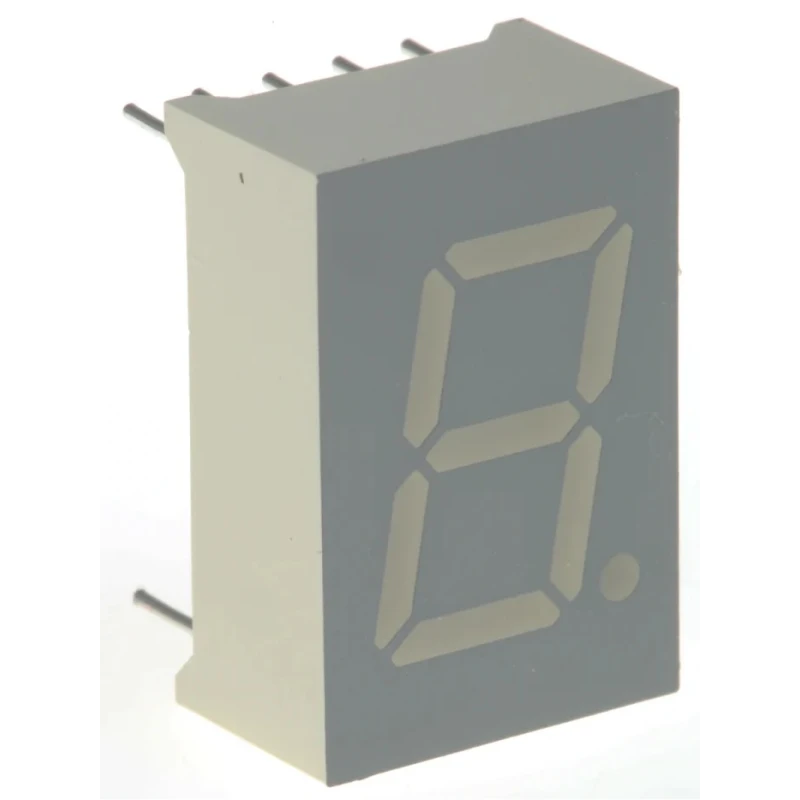

Kingbright 7 Segment LED Display, Green, 1 Digit, Anode, 12.7 mm, 10mcd, Through Hole SA05-11GWA
Specifications
| Country of Origin | India |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | SA05-11GWA |
| Mount Type | Through Hole |
| Character height | 12.7mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 12.7mm |
| External Depth | 8mm |
| External Height | 19mm |
| Power Dissipation | 105mW |
| Luminous Intensity | 10mcd |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 568nm |
| Colour of Face | Grey |
| Forward Voltage | 2.2V |
| Forward Current | 25mA |
| Number of Characters | 1 |
| Character Width | 7.3mm |

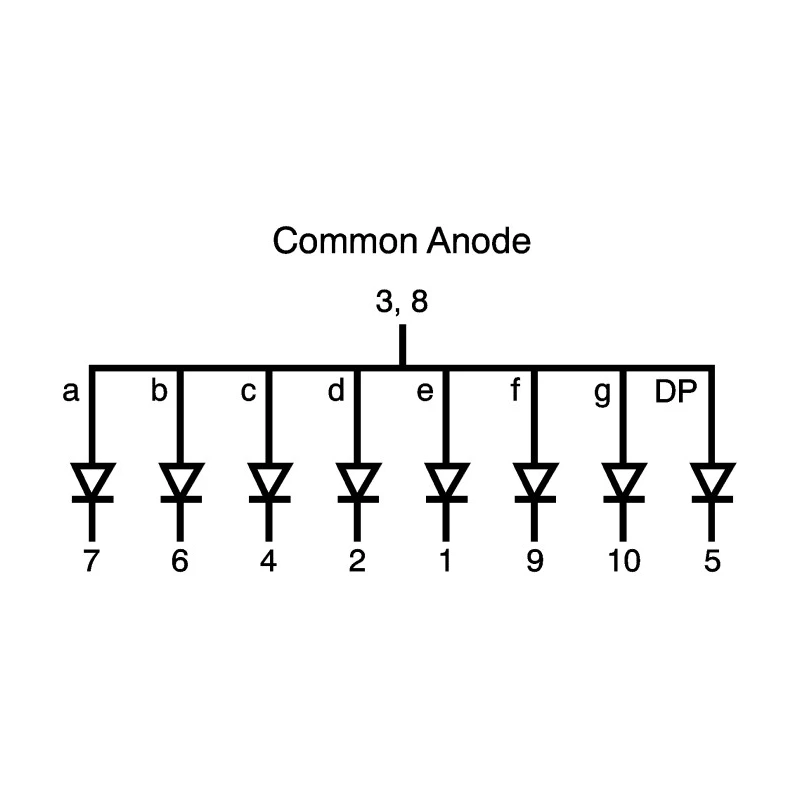

| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- 7 segment display type with 1 character per unit.
- Bright green LED color with 10mcd luminous intensity for clear visibility.
- Anode common connection for convenient circuit integration.
- Character height of 12.7 mm and width of 7.3 mm ensures readability.
- Through hole mount type suitable for robust PCB installation.
- Operates at a forward voltage of 2.2 V and forward current of 25 mA.
- Designed to withstand temperatures from -40°C to 85°C.
- Grey face with white segments enhances contrast and display clarity.
Product Description
The Kingbright SA05-11GWA 7 Segment LED Display offers high-visibility numeric display functionality for a range of applications in instrumentation, consumer electronics, and industrial control panels. Featuring a brilliant green emission driven by a 10mcd LED, this display provides clear digital readout, making it ideal for environments requiring reliable numeric indication.
With its 1-digit, 7-segment configuration, the SA05-11GWA enables precise display of numeric values in compact arrangements. The unit is designed with a common anode connection, allowing straightforward integration into diverse circuit designs, whether for standalone modules or integrated system solutions.
7-segment, 1-digit LED configuration for concise numeric representations. Character height of 12.7 mm and width of 7.3 mm promotes optimal readability even at distance. High luminance of 10mcd and dominant wavelength at 568nm delivers a vivid green output, enhancing attention and recognition.
Grey face and white segment design maximizes contrast and display clarity, especially in well-lit environments. Robust through-hole mounting ensures stable PCB installation, suitable for mass production and prototyping alike.
Supports temperatures from -40°C up to 85°C for dependable use across harsh industrial and laboratory conditions. Operates at 2.2V forward voltage and 25mA current, ensuring energy efficient performance with power dissipation of up to 105mW.
Decimal orientation is right side, ideal for displaying values with decimal points in compact devices.
This Kingbright 7-segment display meets RoHS compliance and can be widely applied in digital counters, frequency meters, voltmeters, timers, and other electronic instrumentation where reliable visual feedback is necessary. Suitable for industrial, laboratory, process control, test equipment, and commercial digital indicators.
Explore the full range of LED Displays and Kingbright components in the Electronics & Electricals section to enhance your electronic systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this display is 10 mcd, providing clear visibility for numeric indications.
The character height of the Kingbright SA05-11GWA is 12.7 mm, ensuring optimal readability.
It operates at a forward voltage of 2.2 V, which is essential for its functionality.
The maximum operating temperature for the Kingbright SA05-11GWA is 85°C, allowing it to function in various environments.
This model features a common anode connection, facilitating easy integration into circuit designs.
The external dimensions are 12.7 mm in width, 8 mm in depth, and 19 mm in height.
The minimum operating temperature for the Kingbright SA05-11GWA is -40°C, making it suitable for harsh conditions.
The power dissipation for the Kingbright SA05-11GWA is up to 105 mW.
The dominant wavelength of the LED light in this display is 568 nm, resulting in a vivid green output.
This model supports through-hole mounting, which is suitable for robust PCB installation.
This display is suitable for applications in digital counters, frequency meters, voltmeters, timers, and other electronic instrumentation.
The character width of the Kingbright SA05-11GWA is 7.3 mm, which contributes to its readability.
