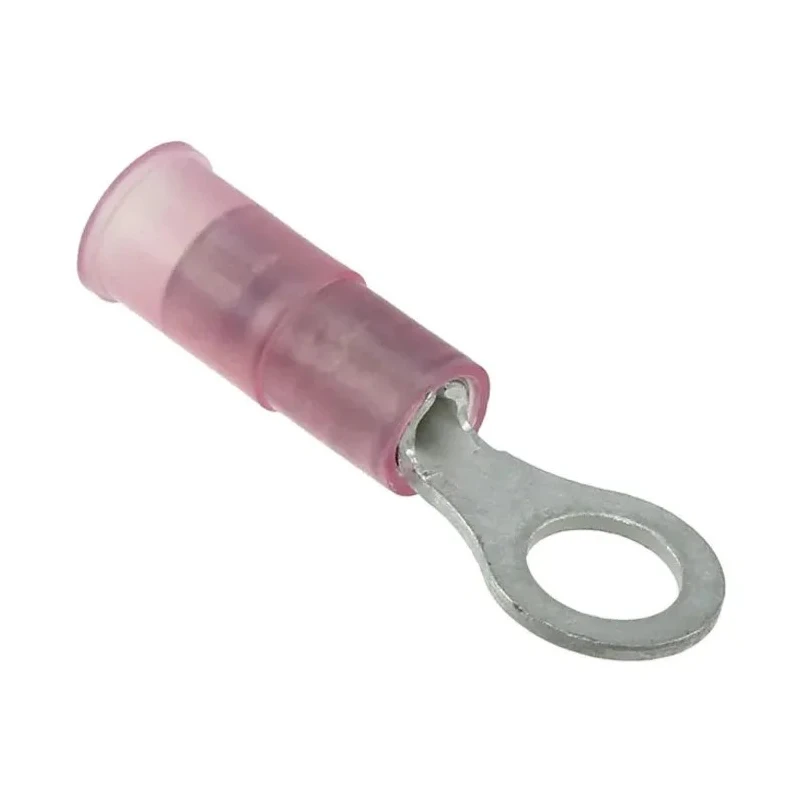

Molex Insulated Crimp Ring Terminal, 22 - 18 AWG, Nylon, M5 Stud, Red 190570011
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Colour | Red |
| Insulation | Insulated |
| Overall Length | 26.08mm |
| Contact Material | Copper |
| Series | 19057 |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | EU RoHS China RoHS, CSA LR18689, Halogen-Free Status Low-Halogen, UL E32244 |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Outer Ring Diameter | 8.31mm |
| Inner Ring Diameter | 5.02mm |
| Stud Size | M5 |
Key Features
- Provides reliable crimp termination for electrical wires.
- Compatible with 22 AWG to 18 AWG wire sizes.
- Nylon insulation offers electrical safety and mechanical protection.
- M5 stud size for a variety of industrial applications.
- Red color coding for circuit identification.
- Manufactured with copper contacts and tin plating for enhanced conductivity and corrosion resistance.
- Maximum operating temperature of 105°C for use in demanding environments.
- Meets EU RoHS and UL safety standards.
Product Description
The Molex 190570011 insulated crimp ring terminal delivers dependable and secure electrical connections in both industrial and commercial environments. Featuring a ring terminal design, it is ideal for termination of 22 AWG to 18 AWG wires to an M5 stud, ensuring a stable and low-resistance connection. The rugged nylon insulation enhances safety by providing protection against electrical shock and mechanical stress, while maintaining flexibility for easy installation.
This terminal is color-coded red for streamlined circuit tracing and differentiation, an essential feature for organized wiring in panels, assemblies, and fieldwork. The construction utilizes high-quality copper contacts with a tin-plated finish, delivering excellent conductivity and corrosion resistance, vital for long-term performance in various applications including automation, control panels, and HVAC systems.
Provides reliable crimp termination for electrical wires. Compatible with 22 AWG to 18 AWG wire sizes. Nylon insulation offers electrical safety and mechanical protection. M5 stud size for a variety of industrial applications.
Red color coding for circuit identification. Manufactured with copper contacts and tin plating for enhanced conductivity and corrosion resistance. Maximum operating temperature of 105°C for use in demanding environments.
Meets EU RoHS and UL safety standards.
The terminal is particularly suited for use in industrial control cabinets, machinery, automation wiring, HVAC equipment, commercial appliances, and automotive applications. It ensures reliable electrical distribution and secure fastening where vibrations, mechanical strain, or temperature fluctuations are present.
With outer ring diameter of 8.31mm and an inner ring diameter compatible with M5 studs, the terminal's compact size and compliance with global standards (EU RoHS, UL, CSA, Halogen-Free status) make it suitable for international projects and demanding electrical installations.
Browse more Molex ring terminals and industrial connectors in the Ring Terminal category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp ring terminal is compatible with wire sizes ranging from 22 AWG to 18 AWG.
The maximum operating temperature for this terminal is 105°C, making it suitable for demanding environments.
The contacts in this terminal are made of copper and are tin-plated for enhanced conductivity and corrosion resistance.
This terminal is designed for an M5 stud size, allowing for secure connections in various applications.
The overall length of the terminal is 26.08mm, with an outer ring diameter of 8.31mm and an inner ring diameter of 5.02mm.
This terminal features nylon insulation, which provides electrical safety and mechanical protection.
It meets several safety standards including EU RoHS, UL E32244, and CSA LR18689, and is classified as halogen-free.
This terminal is suitable for use in industrial control cabinets, machinery, automation wiring, HVAC equipment, commercial appliances, and automotive applications.
The red color coding of this terminal aids in circuit identification, making it easier to trace and differentiate circuits during installation and maintenance.
The tin plating on the contacts enhances conductivity and provides corrosion resistance, which is vital for maintaining long-term performance in various applications.
This insulated crimp ring terminal is manufactured in the United States.
The nylon insulation serves to protect against electrical shock and mechanical stress, while also maintaining flexibility for easy installation.
