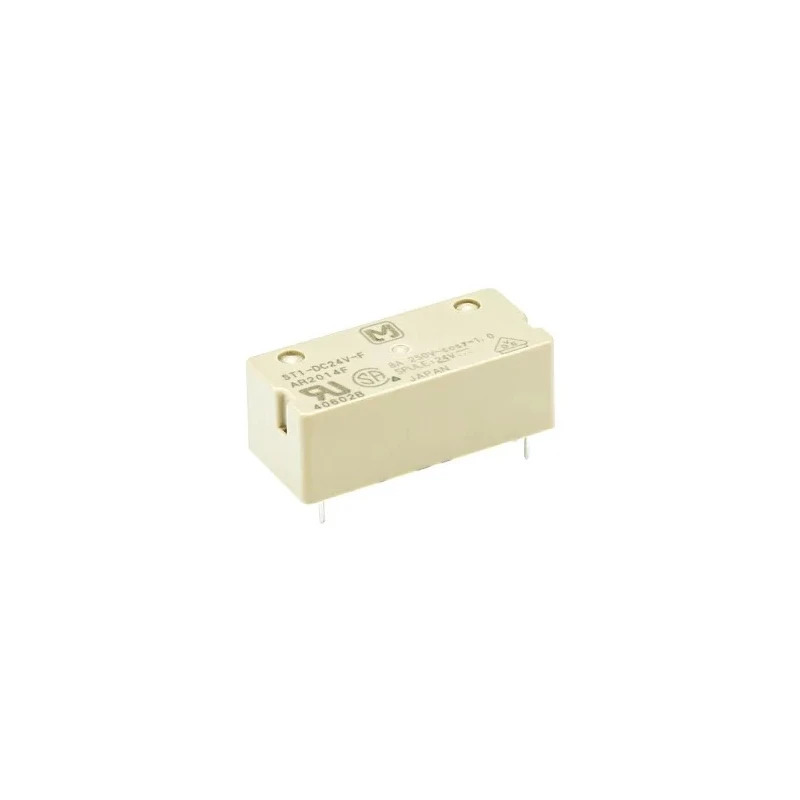

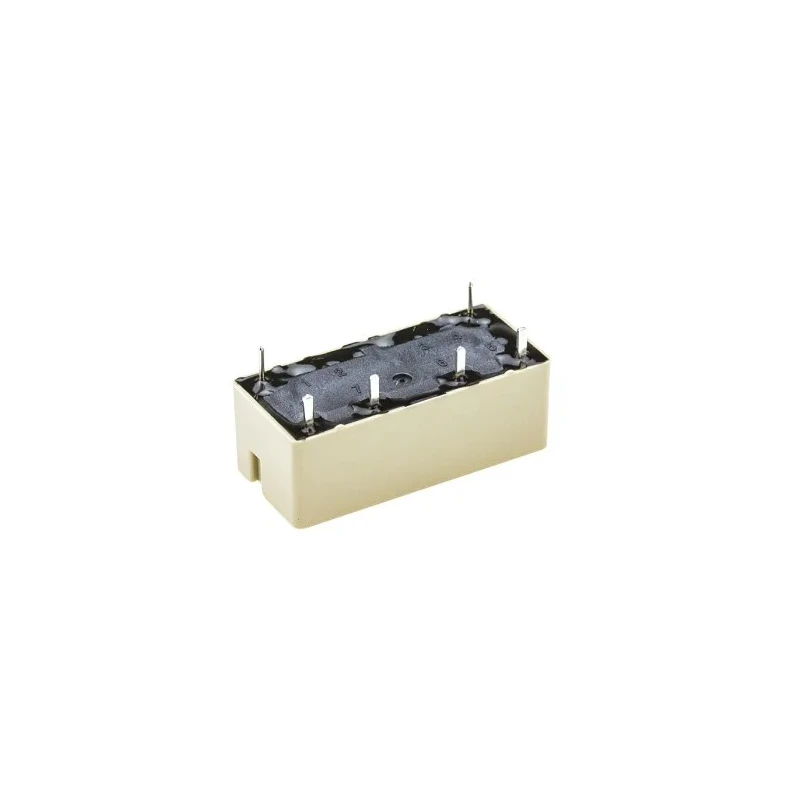

Panasonic PCB Power Relay 8A, 24V DC Coil, Gold Plated Contacts, ST1-DC24V-F
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 11mm |
| Length | 31mm |
| Model | ST1-DC24V-F |
| Width | 14mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | ST |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 2.4kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 240mW |
Key Features
- Designed for PCB mounting and solder terminal interface.
- Features a coil voltage of 24V DC and maximum switching current of 8A.
- Compact form factor with dimensions of 31 x 14 x 11 mm (L x W x H).
- Gold plated contacts ensure enhanced conductivity and durability.
- Operates over a wide temperature range from -40°C to 60°C.
- Offers high switching capability and breakdown voltage, suitable for inductive load applications.
- Sealed construction enables automatic cleaning and improved stability.
- RoHS compliant for environmental safety.
Product Description
The Panasonic ST1-DC24V-F is an advanced PCB power relay engineered for reliable switching operations in electronic, industrial, and automation control applications. It is capable of handling up to 8A of switching current with a 24V DC coil voltage, making it ideal for managing medium-power circuits within control boards and automation systems.
This relay features a compact footprint (31 x 14 x 11 mm) that facilitates easy integration into densely populated printed circuit boards. Gold plated contacts ensure low contact resistance, long-lasting performance, and stable operation even in demanding applications.
The relay's sealed construction supports automatic washing, simplifying assembly line cleaning procedures and reducing contamination risks.
The ST Series relays are IC drivable, allowing direct control by microcontrollers or logic circuits. They are designed for high switching capability and breakdown voltage, making them suitable for inductive lamp or load switching in automation panels, HVAC systems, industrial machinery, and power distribution circuits.
Operating reliably within a wide temperature range from -40°C to 60°C, this relay meets stringent industry and environmental requirements. RoHS compliance ensures safe installation in global applications, and the gold plated contact material further enhances stability across varied operational environments.
Use cases include industrial machinery, automation control circuits, HVAC units, manufacturing lines, and commercial power boards. The relay is a robust component for demanding applications where performance, reliability, and electrical isolation are paramount.
Explore more Power Relays and Panasonic automation solutions at EnvMart. Find matching relay sockets, accessories, and other control components to optimize your industrial and electronic systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 8A.
The coil voltage of this model is 24V DC.
This power relay has dimensions of 31mm in length, 14mm in width, and 11mm in height.
It supports PCB mounting with solder terminal type connections.
The relay operates reliably within a temperature range of -40°C to 60°C.
The contacts of this relay are made from gold plated material, ensuring enhanced conductivity.
The coil resistance for this relay is 2.4kΩ.
Yes, this relay is RoHS compliant, ensuring it meets environmental safety standards.
It can switch DC voltages up to 250V and AC voltages up to 250V.
This relay is suitable for applications in industrial machinery, automation control circuits, HVAC units, and power distribution circuits.
The coil power consumption for this relay is 240mW.
Yes, this relay is IC drivable, allowing direct control by microcontrollers or logic circuits.
