Pico Technology PicoScope 2000 Series PC Based Oscilloscope, 70 MHz, 4 Channel, USB, PicoScope 2407B

Pico Technology PicoScope 2407B is a high-performance PC-based oscilloscope, designed for professional engineers and technicians who require precise signal analysis and measurement. It belongs to the PicoScope 2000 Series and integrates seamlessly with laptops or desktops via USB, making it a compact and portable solution for laboratory, industrial, and electronic testing work.

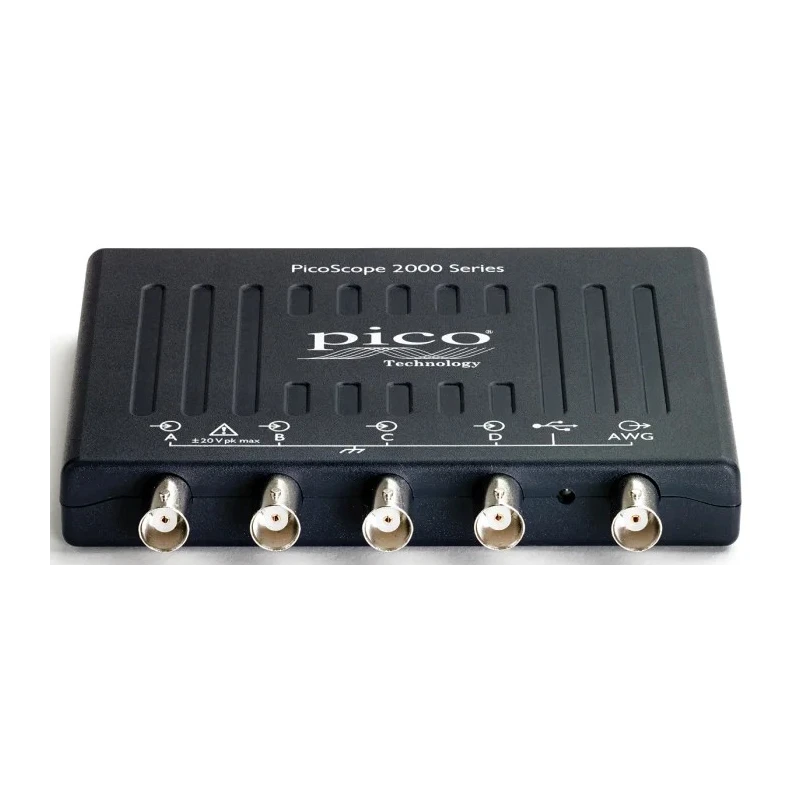

This oscilloscope is equipped with four independent analog input channels, supporting simultaneous acquisition of multiple signals. With a 70 MHz analog bandwidth, the PicoScope 2407B can accurately capture and analyze rapidly varying waveforms and frequencies encountered in digital and analog circuits. Its 1 GS/s maximum sampling rate ensures detailed signal representation, while a robust 64 MS buffer memory facilitates extended data logging and storage.

An integrated arbitrary waveform generator (AWG) allows users to produce and test variable signals, supporting essential tasks such as circuit simulation and waveform validation. The scope also offers a 1 MHz AWG signal generator for increased versatility, and fifteen automatic measurements in scope mode plus eleven in spectrum mode streamline routine analysis.

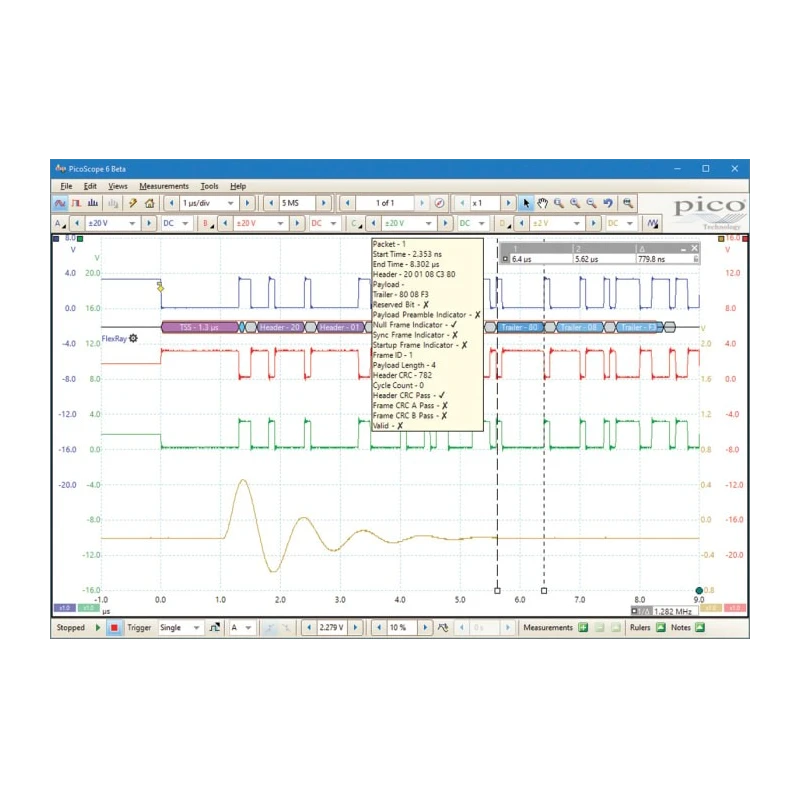

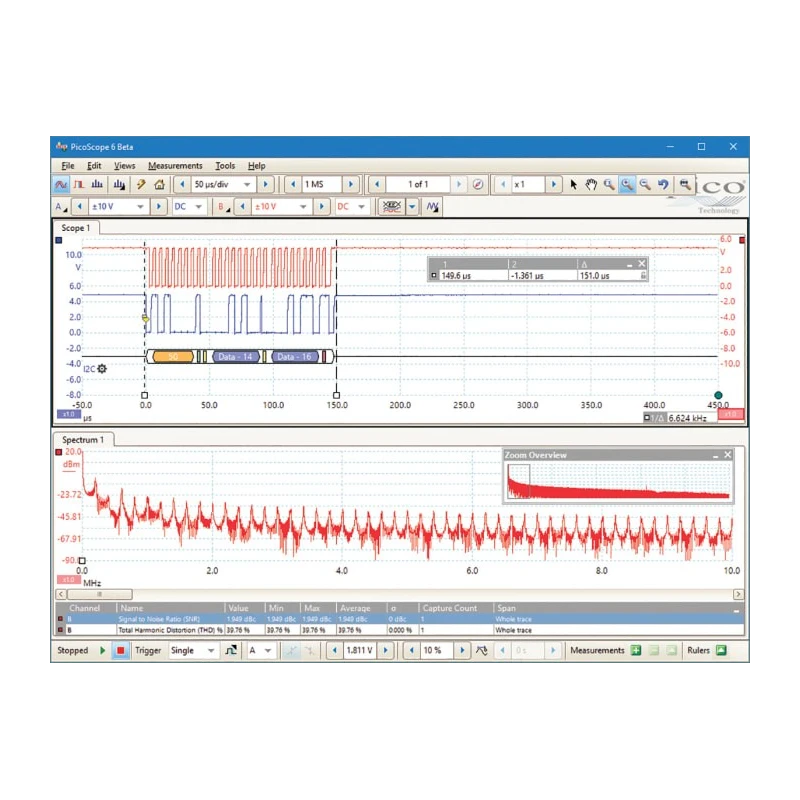

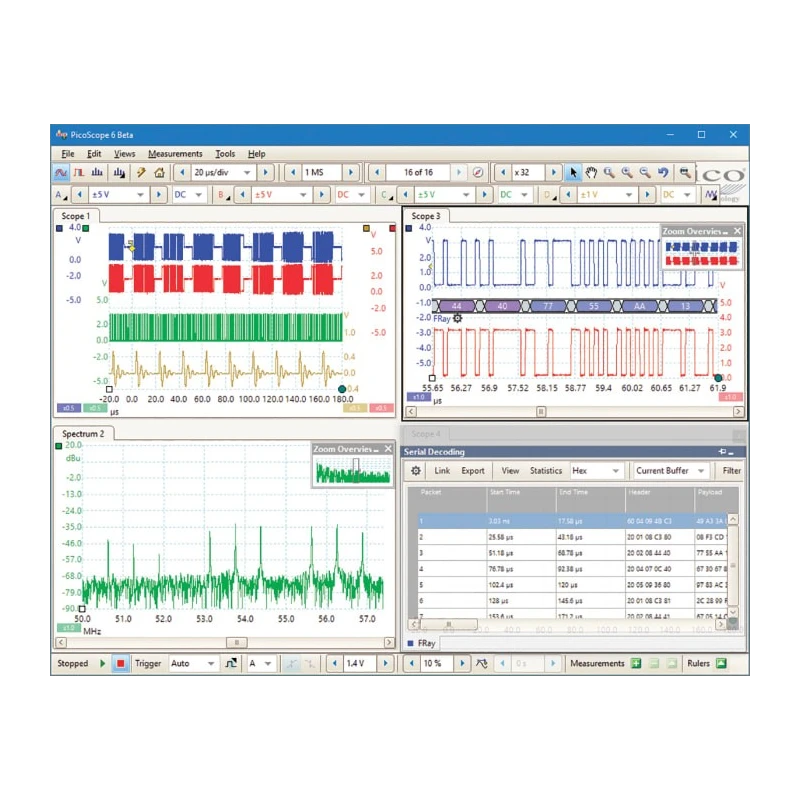

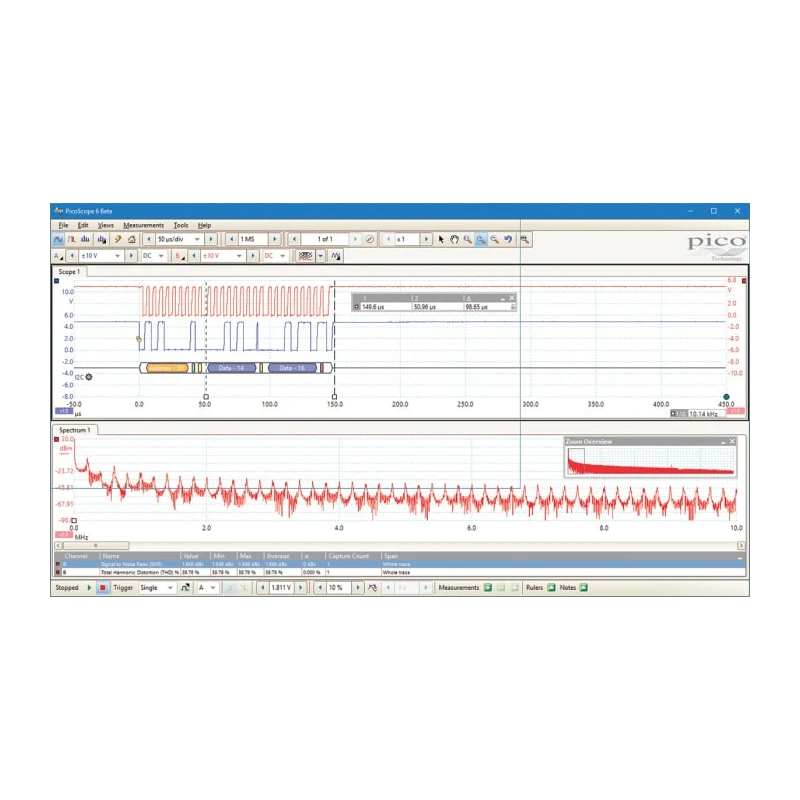

Serial bus analysis and decoding features are standard, supporting protocol analysis for CAN, IIC, LIN, RS232, SPI, UART, and USB, making the PicoScope 2407B ideal for embedded systems and communication bus debugging. Advanced waveform analysis includes FFT and other spectral tools, enabling frequency domain investigations and signal integrity verification.

Dimensions of 130 x 104 x 18.8 mm deliver a compact footprint, ideal for portable use. The software provides powerful visualization features, enabling pinch, zoom, and drag of waveform displays. Excellent signal integrity is achieved through high vertical resolution (8-bit), low rise time (5 ns), and sensitive voltage ranges from 4 mV/div to 4 V/div.

Applications include electronic design, industrial maintenance, laboratory research, education, and troubleshooting of communication buses and digital/analog circuits. The PicoScope 2407B is suitable for professionals seeking a reliable, flexible, and high-precision oscilloscope solution that leverages modern PC computing power.
