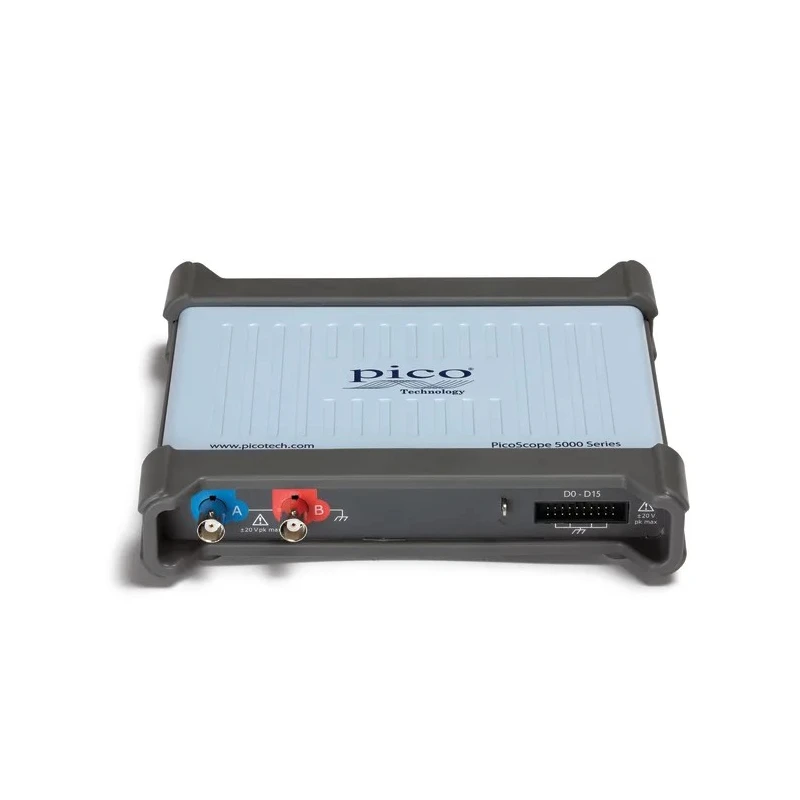

Pico Technology 200 MHz 16-Channel PC Based Oscilloscope PicoScope 5244D MSO

Pico Technology PicoScope 5244D MSO is a high-performance PC based oscilloscope from the renowned PicoScope 5000D Series, featuring a 200 MHz analogue bandwidth and 16 input channels for mixed signal analysis. It offers outstanding resolution options from 8 to 16 bits, making it a versatile tool for detailed signal capture and analysis in laboratory, industrial, and research environments.

This instrument supports a variety of interface standards including CAN, LIN, RS232, RS422, RS485, SPI, UART, and USB, enabling flexible data acquisition from diverse signal types. The built-in arbitrary waveform generator and digital debug features provide comprehensive testing capabilities beyond traditional oscilloscope functionality.

With sample rates of up to 1 GS/s at 8-bit resolution, 500 MS/s at 12-bit resolution, and 62.5 MS/s at 16-bit resolution combined with a large 256 MS buffer memory, users can capture complex waveforms accurately with high fidelity. A rapid waveform update rate of 100,000 wfms/s ensures real-time observation of signal changes and anomalies.

The PicoScope 5244D MSO offers high vertical resolution of 16 bits and fine vertical sensitivity ranges from 2 mV/div to 4 V/div, suitable for precise low-noise measurements. Its rise time of 1.75 ns facilitates the capture of fast transient events.

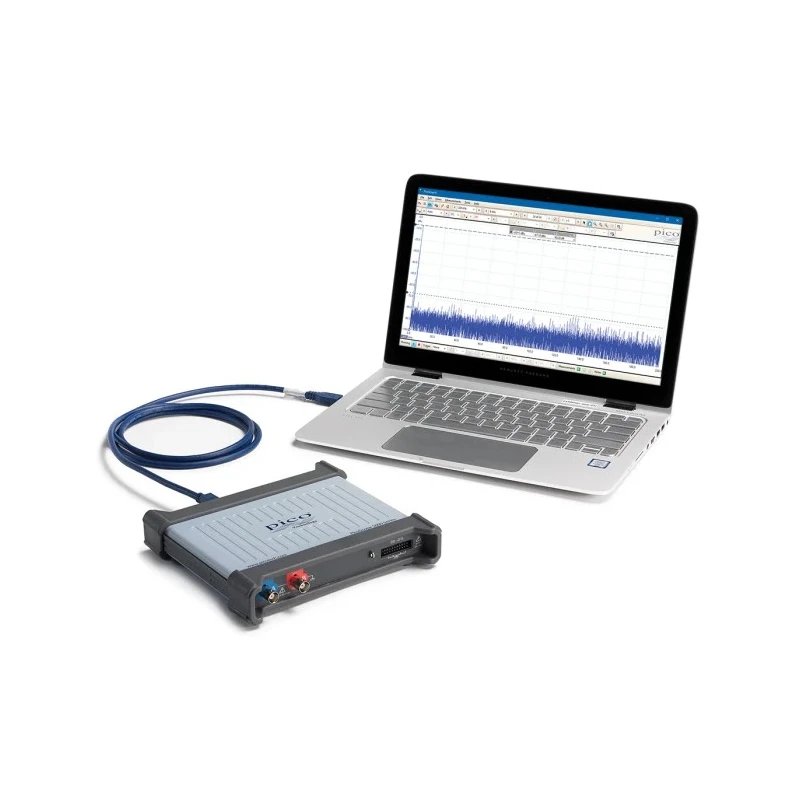

Designed for professional and scientific use, this oscilloscope supports Windows, Linux, and Mac operating systems, allowing integration into various computing environments. Typical use cases include scientific experiments, medical device testing, automotive diagnostics, telecommunications, and laboratory research.

Compact and benchtop-friendly with dimensions of 170 mm in height and 190 mm in width, it requires USB power supply simplifying setup without external adapters. The oscilloscope delivers reliable and detailed measurement results for advanced mixed signal applications.

Its broad interface compatibility makes it adaptable to many signal protocols in industrial and automotive fields. The built-in waveform generator extends its capability for custom signal creation and testing. Its software compatibility across major platforms ensures broad usability.

The compact and robust build makes it suitable for laboratory and field deployments.
