Pico Technology 25 MHz PC Based Oscilloscope 16-Channel Mixed Signal with Arbitrary Waveform Generator PicoScope 2205A MSO
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Pico Technology |
| Height | 18.8mm |
| Length | 130mm |
| Model | PicoScope 2205A MSO |
| Width | 104mm |
| Bandwidth | 25MHz |
| Sampling rate | is 500MSa/s with 48KS buffer |
| Series | PicoScope 2000 |
| Interfaces | USB connected and powered |
| Number Of Channels | 16 |
| Vertical Resolution | 8 bit |
| Rise Time | 14ns |
| Interface Type | CAN, IIC, LIN, RS232, SPI, UART, USB |
| Oscilloscope Type | PC Based |
| Digital Channels | 16 |
| Minimum Vertical Sensitivity | 4mV/div |
| Minimum Time Base | 2ns/div |
| Maximum Vertical Sensitivity | 4V/div |
| Maximum Time Base | 5000s/div |
| EN 61010-1 | 2010 |
Key Features
- The bandwidth is 25 MHz suitable for diverse electronic testing.
- 16 digital channels provide advanced logic analysis capabilities.
- Includes a built-in 1 MHz arbitrary waveform generator with 48 kS buffer memory.
- Supports serial bus decoding for SPI, I2C, CANbus, LINbus, FlexRay, and ARINC protocols.
- Compact and USB powered, ideal for portable or bench use.
- Advanced waveform visualization with fast update rates and spectrum analysis.
- Supports interfaces including CAN, IIC, LIN, RS232, SPI, UART, and USB.
- Compact dimensions of 130 x 104 x 18.8 mm for easy integration with PCs.
Product Description

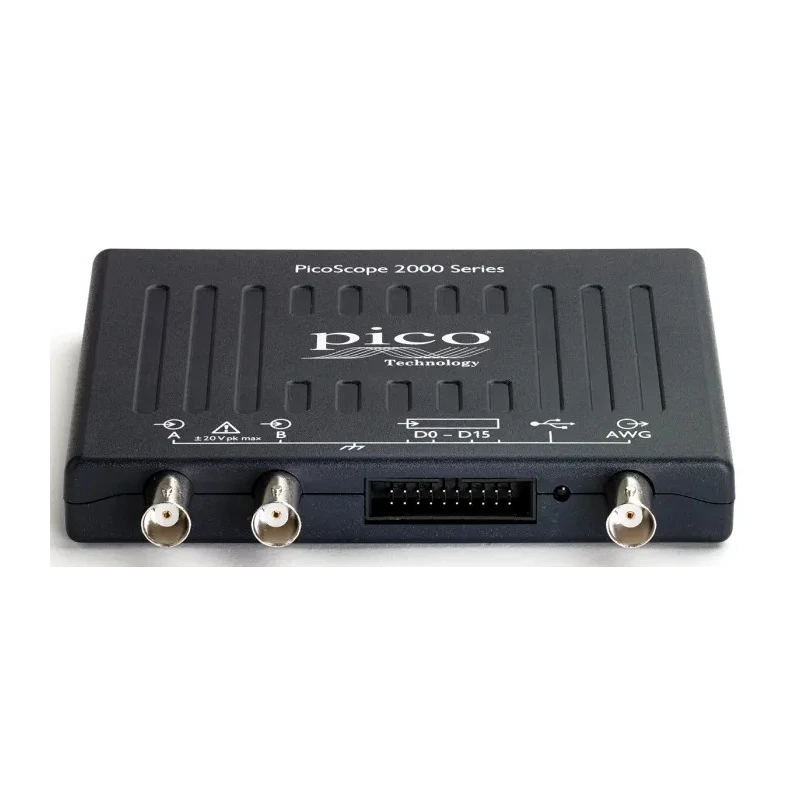

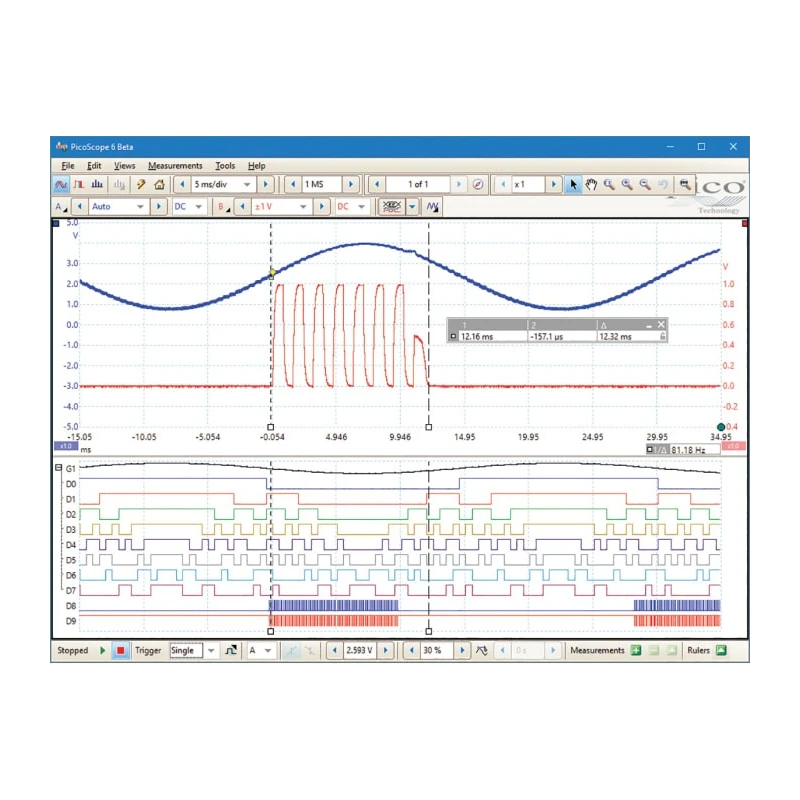

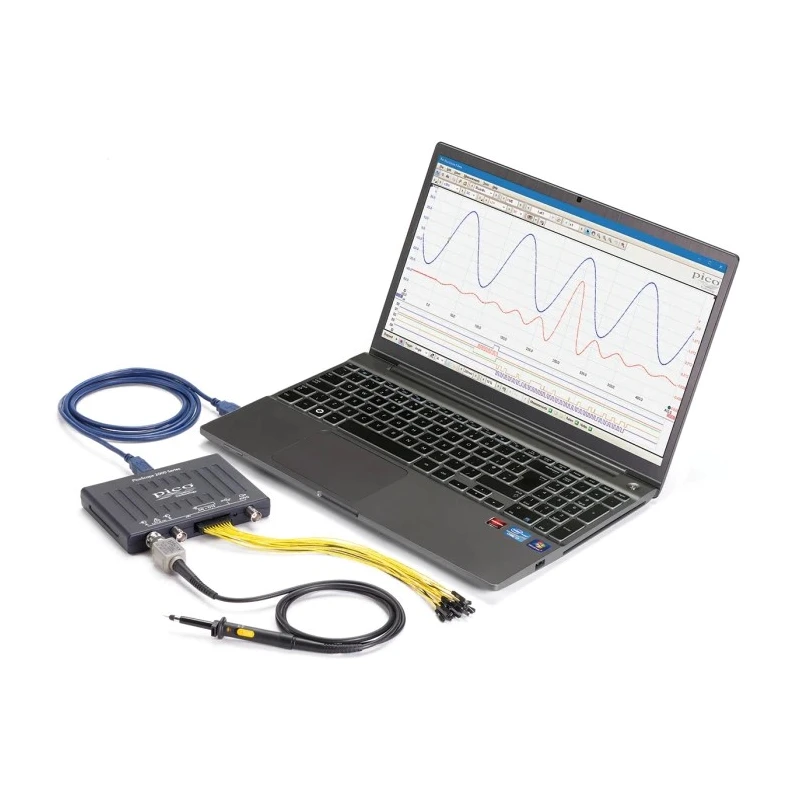

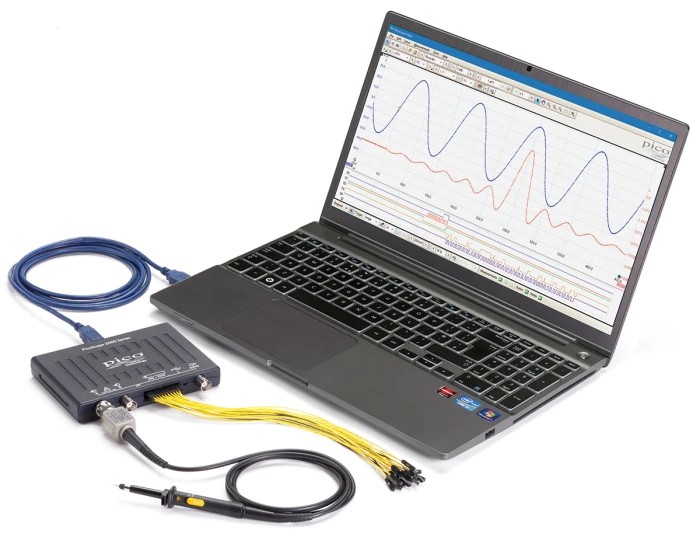

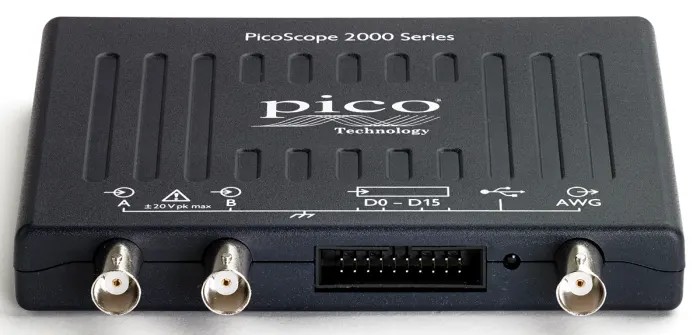

Pico Technology PicoScope 2205A MSO is a new, highly capable 25 MHz mixed signal oscilloscope that combines 2 analog channels and 16 digital logic channels. This PC-based oscilloscope leverages the computing power of a connected laptop or desktop for comprehensive waveform analysis and measurement, making it ideal for industrial, laboratory, electronics, and educational testing applications.
The device features a maximum sampling rate of 500 MS/s with a buffer memory of 48 kS, allowing detailed capture of signal behavior. It is equipped with a 1 MHz arbitrary waveform generator, enabling signal simulation for various testing scenarios. With interfaces supporting CAN, I2C, LIN, RS232, SPI, UART, and USB, the PicoScope 2205A MSO can decode a wide range of serial protocols, essential for modern automotive and embedded system diagnostics.
This oscilloscope includes built-in spectrum analysis and fast waveform update speeds, providing users a comprehensive toolset to visually analyze waveforms, measure system timing, and troubleshoot complex electronics.
The compact design (130 mm length, 104 mm width, 18.8 mm height) and USB power connection make this a portable, versatile solution that simplifies field and bench instrumentation. The bandwidth reaches 25 MHz, apt for testing diverse electronic signals with clarity.

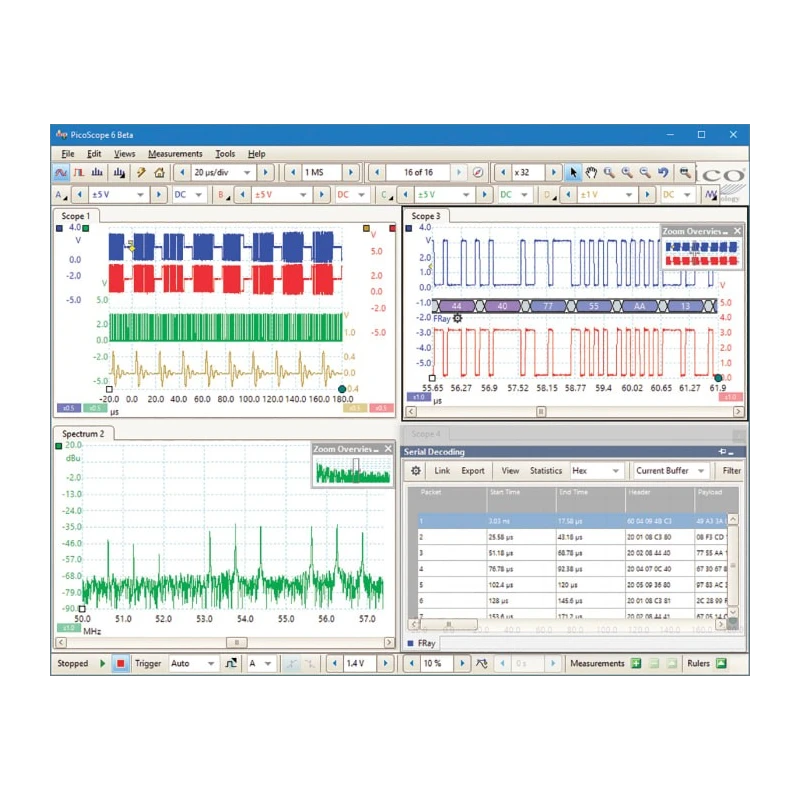

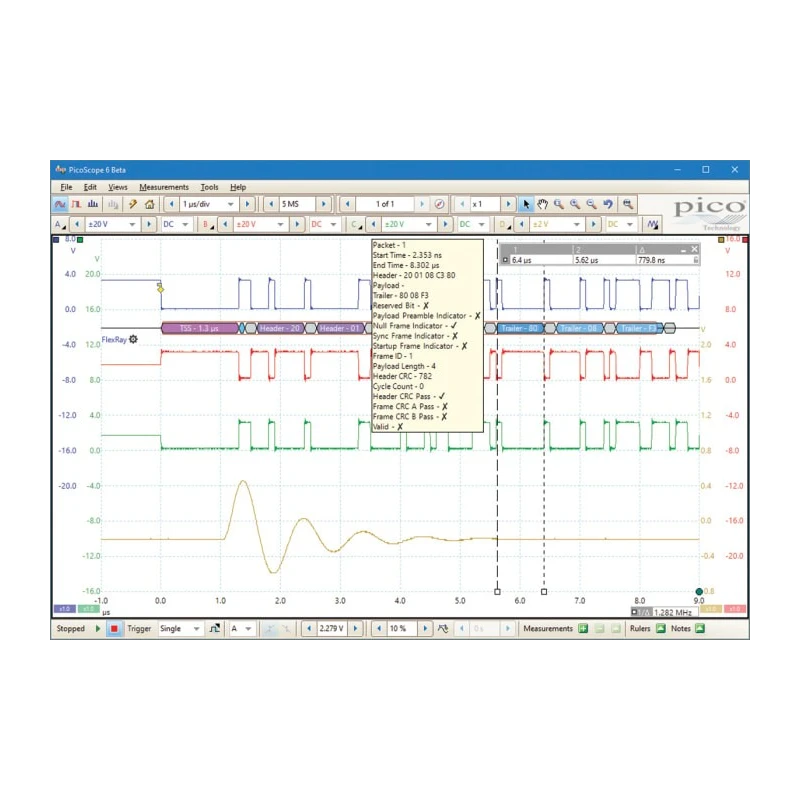

High channel count (16 digital + 2 analog) enhances mixed signal measurement capabilities. Built-in arbitrary waveform generator facilitates function generation and simulation. Serial protocol decoding supports SPI, I2C, CANbus, LINbus, FlexRay, and ARINC.
Compact form factor allows easy transport and deployment in tight spaces.
This oscilloscope is designed for use in industrial development, laboratory research, electronics manufacturing, HVAC diagnostics, and educational environments, providing reliable and precise measurement capabilities.
Choose the Pico Technology PicoScope 2205A MSO from the Oscilloscope category at EnvMart for a trusted, advanced test and measurement instrument backed by expert technical features.
