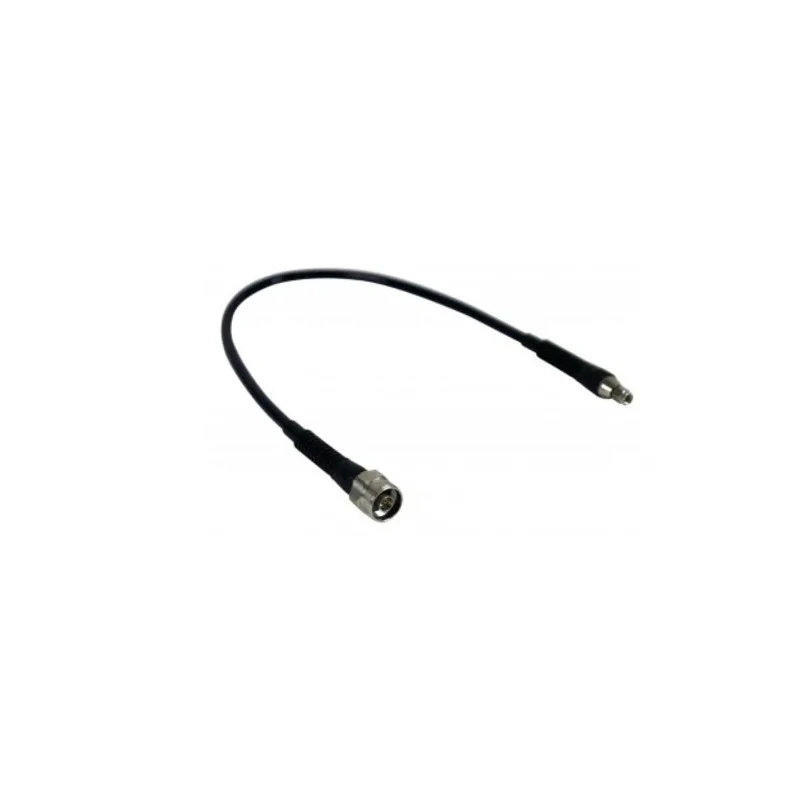

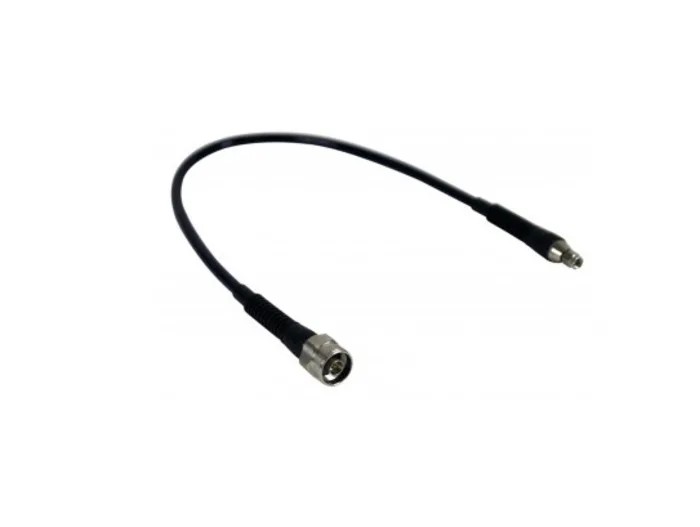

Pico Technology 600 mm Standard N Male to SMA Female Flexible Phase Stable Test Lead 0 to 8.5 GHz TA337 Standard N(m)-SMA(f)

Pico Technology TA337 Standard N(m)-SMA(f) test lead is a 600 mm length phase stable vector network analyser accessory designed for use with PicoVNA 106 and PicoVNA 108 devices. This lead supports measurements over a frequency range of 0 to 8.5 GHz, suitable for precise RF testing applications that demand both flexibility and high-performance signal integrity.

Constructed with a flexible cable that uses a low-density PTFE dielectric with a gauge of 170 μm, it ensures precise signal transfer with low dielectric loss. The cable’s outer diameter is 7.1 mm (0.28 inch), making it manageable and durable in laboratory and industrial environments.

Equipped with male N-type and female SMA connectors made from stainless steel, this lead guarantees robust mechanical and electrical connections essential for consistent test results. The cable provides excellent flatness and phase variation characteristics with 2 degrees phase stability at 6 GHz and 2.8 degrees at 8.5 GHz, supporting demanding RF measurement tasks.

Signal loss is minimal, with values of 0.7 dB at 6 GHz and 0.85 dB at the upper frequency of 8.5 GHz, ensuring accurate signal transmission and reduced measurement error. Connector protection caps are included for safeguarding the connectors during handling and storage.

The Test Lead is widely used in industries such as telecommunications, electronics manufacturing, and laboratory test environments for network analysis and RF signal integrity. Its flexible design allows for easy routing in tight setups without compromising performance.

Phase stability and amplitude flatness specifications make this product ideal for precision vector network analysers and RF test equipment.

Originating from Taiwan, Province of China, the lead maintains high quality standards expected in professional test and measurement environments. It supports technicians and engineers in maintaining accurate calibration and troubleshooting of RF systems.
