Pico Technology ADC-20 & TERM Voltage Data Logger USB 2.0 8 Channel 20bit High Resolution ADC-20 & TERM

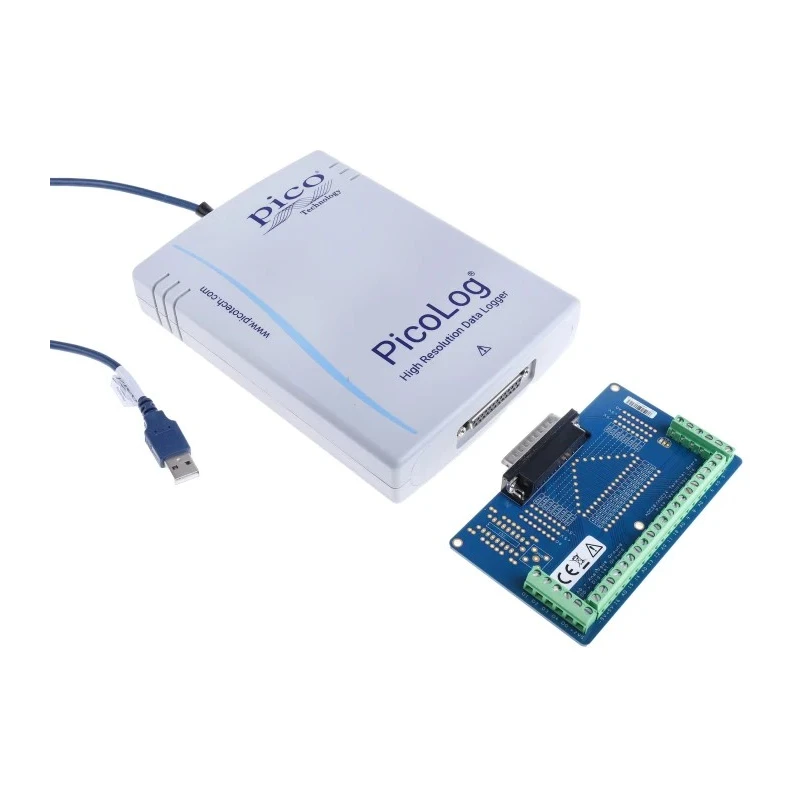

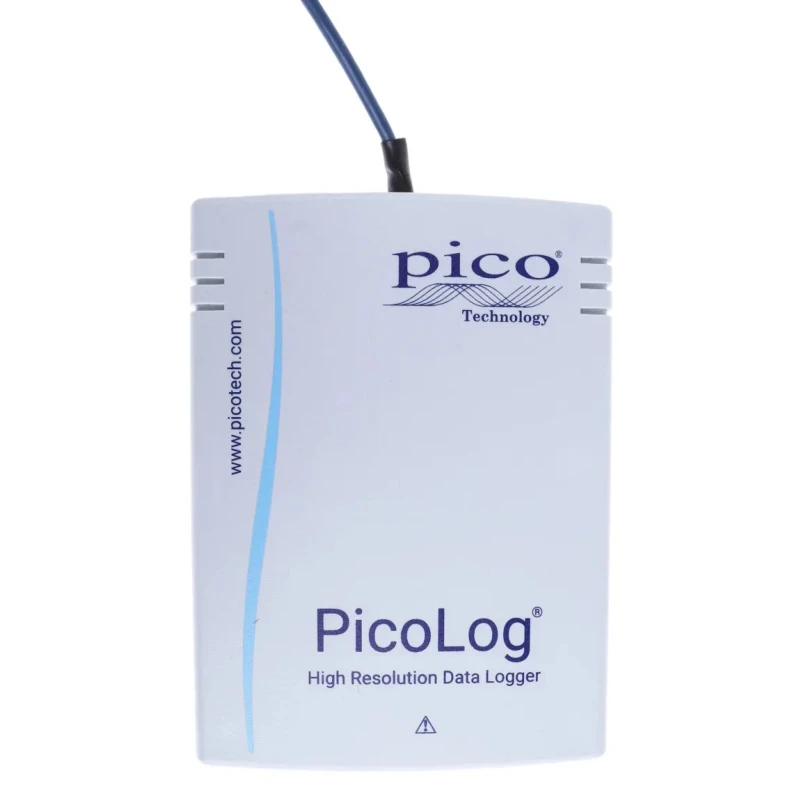

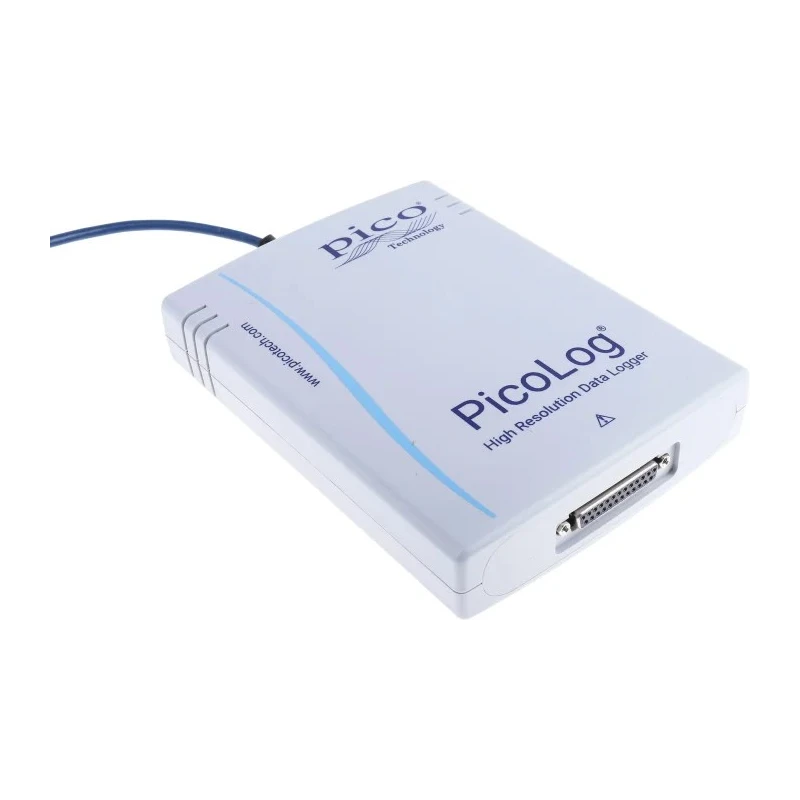

Pico Technology ADC-20 & TERM Voltage Data Logger ADC-20 & TERM is an 8-channel, 20-bit high-resolution data logger with USB 2.0 and USB 1.1 interface designed for accurate voltage measurement and recording. This device is powered through the USB port and supports multiple input ranges, configurable as single-ended or differential, to capture minute signal variations with accuracy up to ±0.2%.

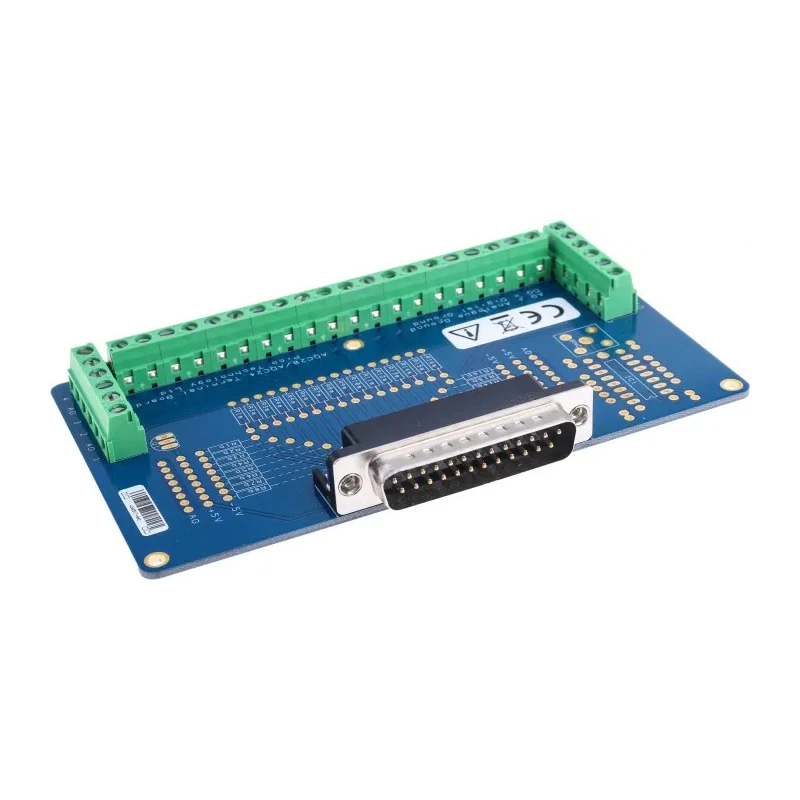

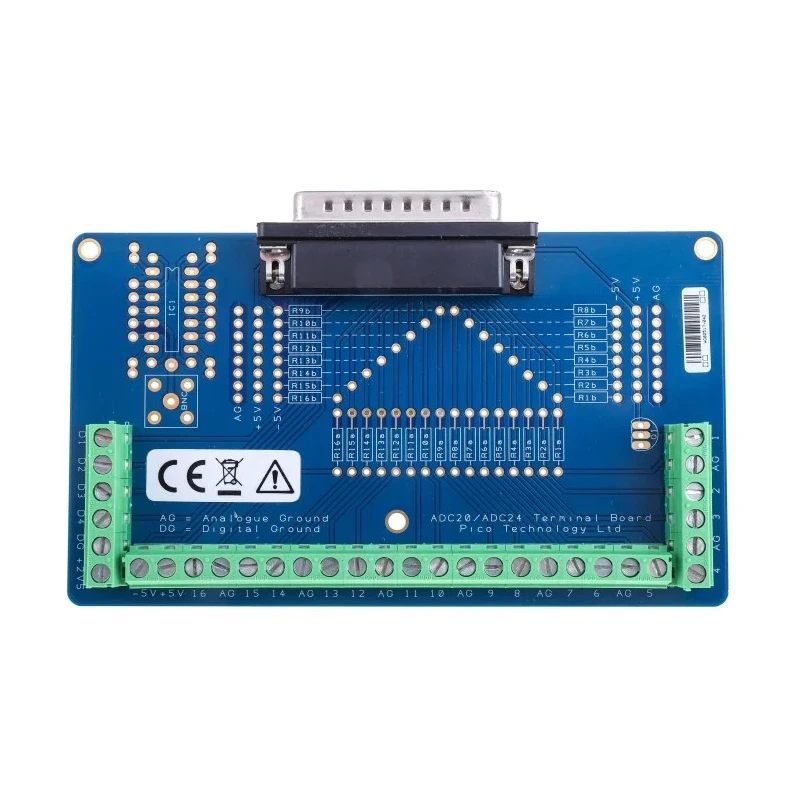

Equipped with USB isolation and digital control outputs, this data logger allows up to 15 readings per second, making it ideal for real-time monitoring in industrial, laboratory, HVAC, manufacturing, and research settings. The device comes supplied with the PicoLog data logging software, including 32-bit programming libraries and a screw terminal input adaptor board for easy connections.

Its compact form factor (184 mm wide, 135 mm long, and 36 mm high) and operational temperature range from 0°C to 45°C make it suitable for a variety of environments. The data logger's alarm feature enhances safety by monitoring measurement thresholds.

Supports multiple operating systems including Windows, macOS, Linux, and Raspberry Pi OS, with the free PicoLog 6 Cloud® software enabling data capture directly to local memory or streaming securely to the cloud. This facilitates sharing and integration of live data with third-party systems via API, expanding its use in modern data acquisition workflows.

Features up to 8 input channels with 20-bit resolution for high precision measurements. Inputs configurable as single-ended or differential for versatile data logging. Supports up to 7 input ranges from ±39 mV to ±2.5 V for detailed signal capture.

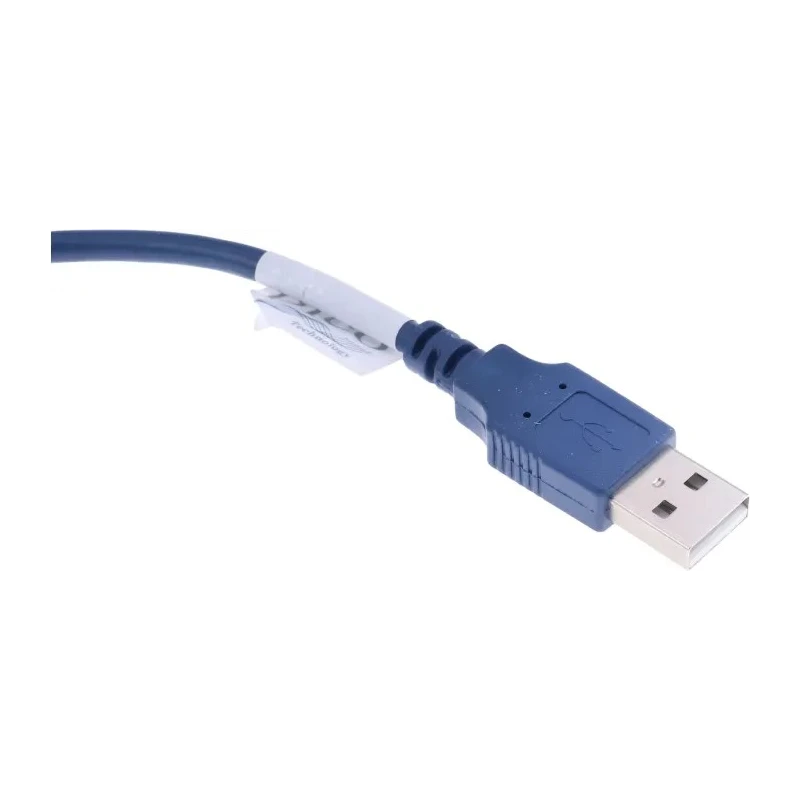

Equipped with USB isolation and powered directly from the USB port. Includes free PicoLog 6 Cloud® software compatible with multiple operating systems. Capable of up to 15 measurements per second enabling real-time data capture.

Compact size and reliable operation over a wide temperature range. Alarm function for enhanced measurement safety.

This Pico Technology ADC-20 & TERM Voltage Data Logger is an essential tool for precise voltage measurement tasks in industrial measurement, laboratory experimentation, environmental monitoring, and industrial automation. Discover the benefits and browse the full range of Data Loggers available on EnvMart to meet your specific application needs.
