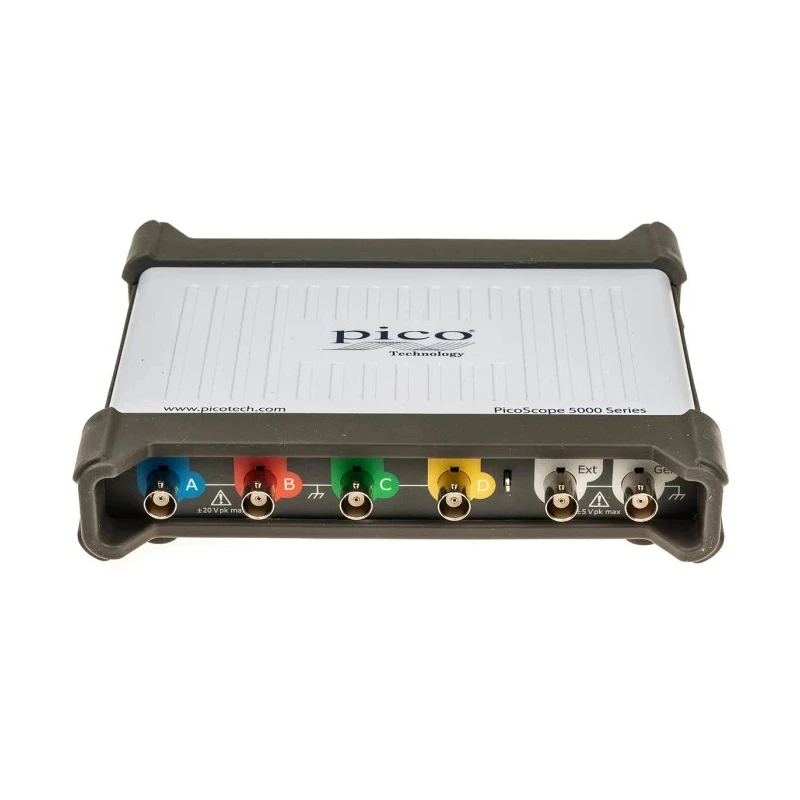

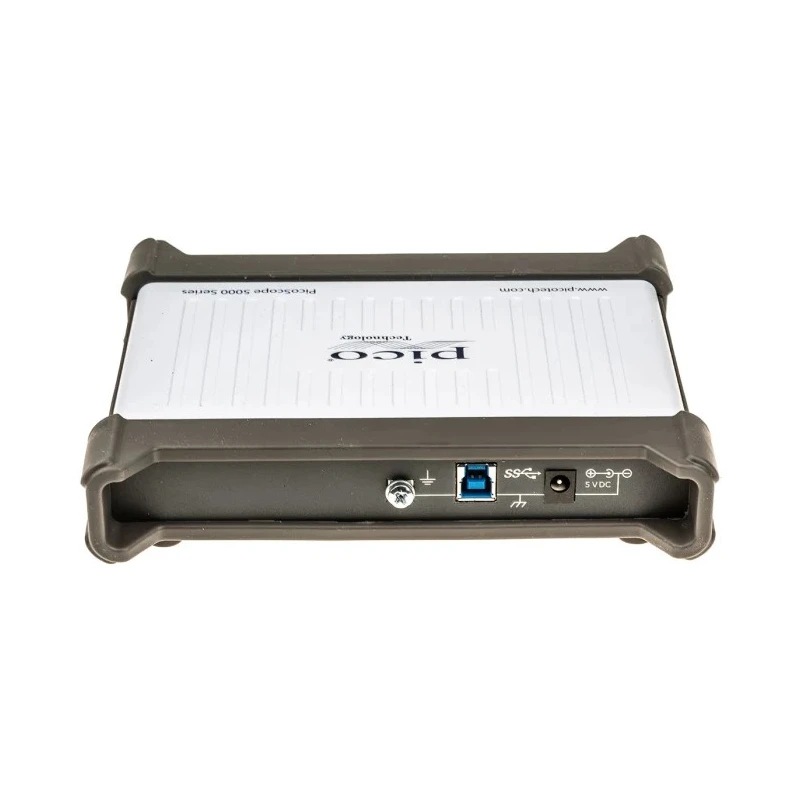

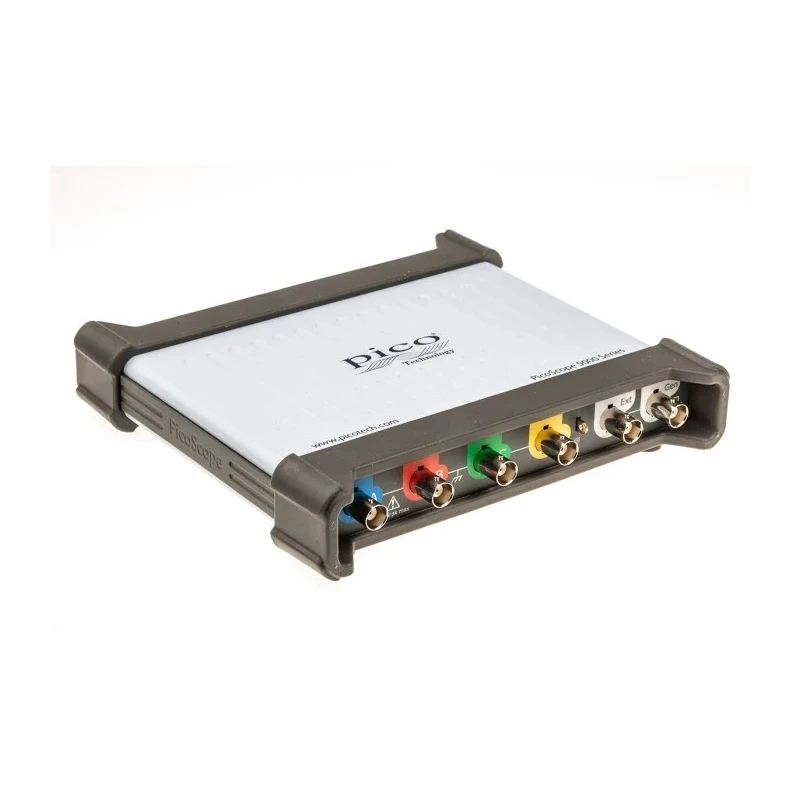

Pico Technology 100 MHz 4-Channel PC Based Oscilloscope PicoScope 5443D

Pico Technology PicoScope 5443D is a high-performance 100 MHz 4-channel PC-based oscilloscope engineered for advanced industrial, laboratory, and electronics diagnostic applications. Utilizing breakthrough ADC technology, it offers flexible hardware resolution ranging from 8 to 16 bits, allowing precise signal analysis across diverse environments.

This compact oscilloscope measures 190 mm in length, 170 mm width, and 40 mm height, making it suitable for benchtop use without occupying excessive space. It supports a minimum time base of 1 ns/div and a maximum time base of 5000 s/div, coupled with 16-bit vertical resolution and a rise time of 3.5 ns to capture fast transient events accurately.

With a maximum vertical sensitivity of 4 V/div and a minimum of 2 mV/div, the instrument provides granular control over signal display. Its interface supports various communication protocols including CAN, LIN, RS232, RS422, RS485, SPI, UART, and USB, enabling versatile connectivity options relevant in automotive, embedded, and communication electronics diagnostics.

The 512 MS large buffer memory can store high-resolution waveforms, while the device offers high sampling rates: 1 GS/s at 8-bit, 500 MS/s at 12-bit, and 62.5 MS/s at 16-bit resolutions. Features such as 100,000 waveforms per second acquisition rate, 200 MS/s arbitrary waveform generator, serial decoding, and mask limit testing expand its utility for mixed-signal designs, embedded systems development, and educational laboratories.

Flexible 8-16 bit hardware resolution for precision measurements. Up to 100 MHz analogue bandwidth for diverse signal testing. High sampling rates for detailed waveform capture. Large waveform buffer supporting extended data capture.

Multi-instrument functionalities including waveform generation and serial decoding. Compatible across Windows, Linux, and Mac platforms. Compact benchtop form factor for easy integration. Supports numerous communication interface protocols.

This PicoScope model is commonly employed in industrial environments for embedded electronics design, automotive system analysis, video and mixed signal troubleshooting, and general electronics test and measurement.

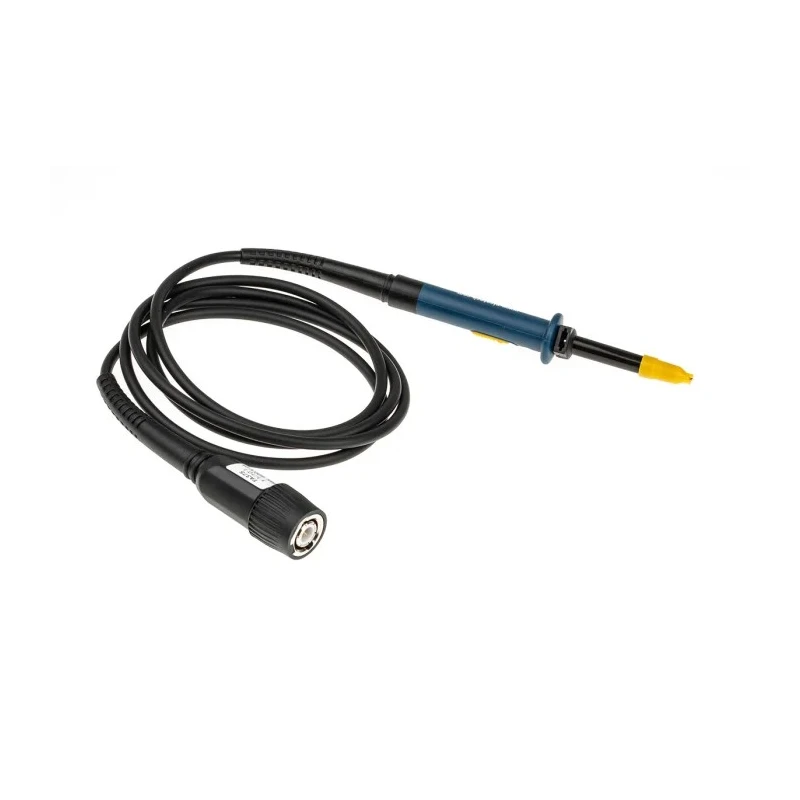

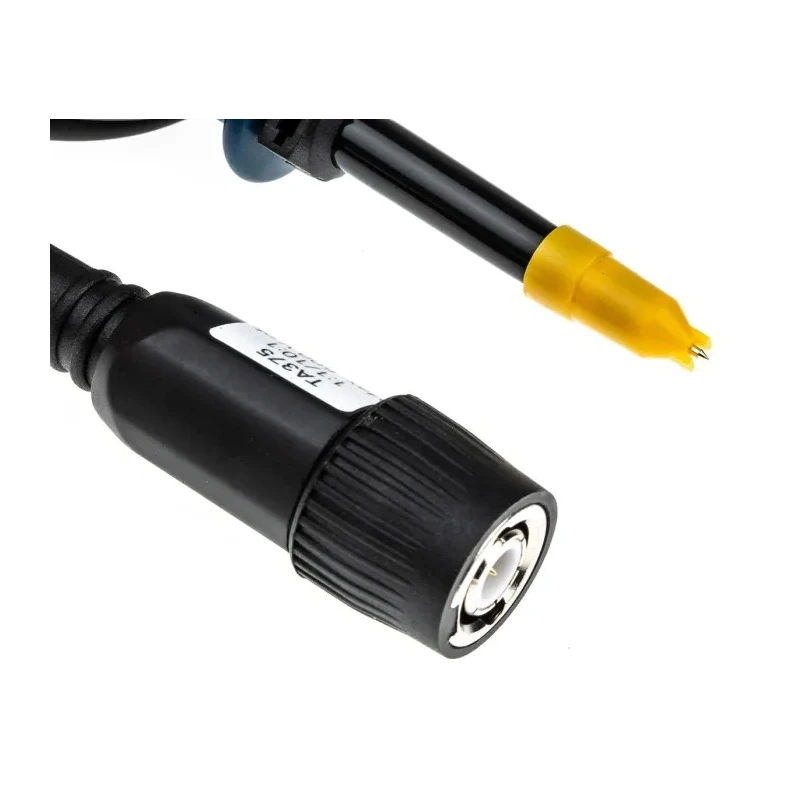

For related products, users can explore other oscilloscopes in the PicoScope 5000 series or accessories for signal probing and software extensions. This model is proudly made in the United Kingdom, embodying quality and precision in test instrumentation.
