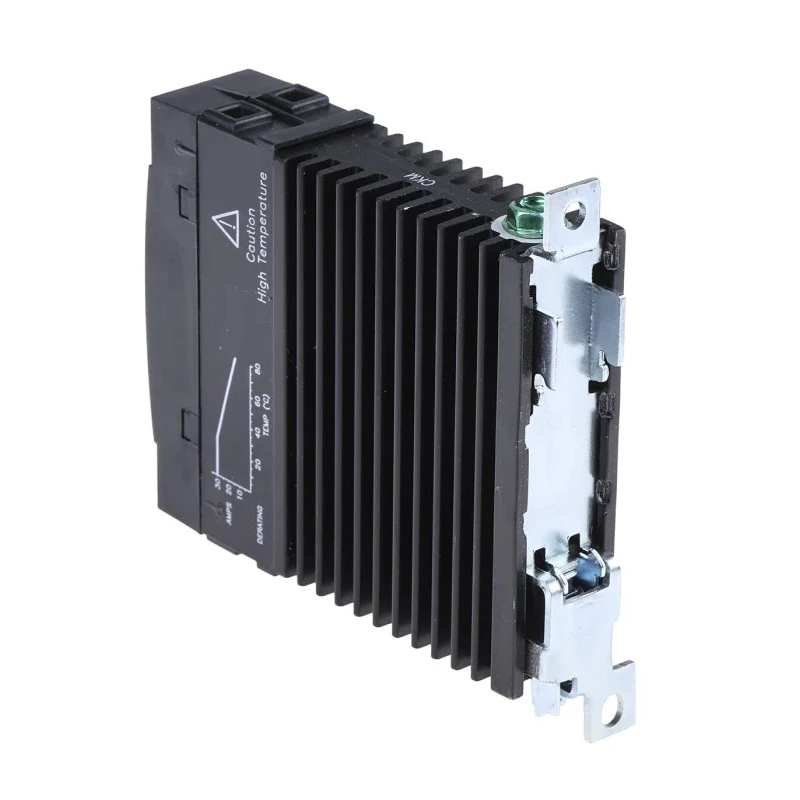

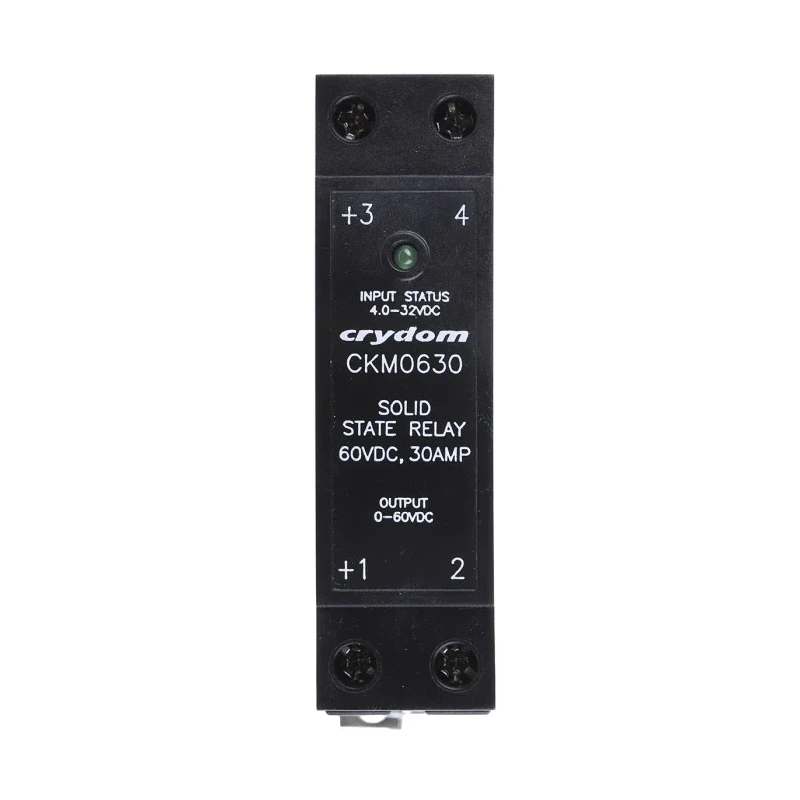

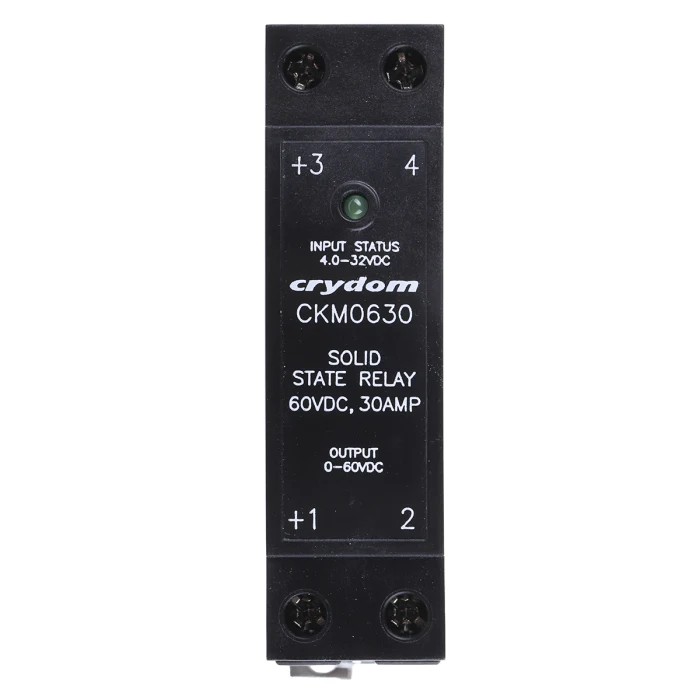

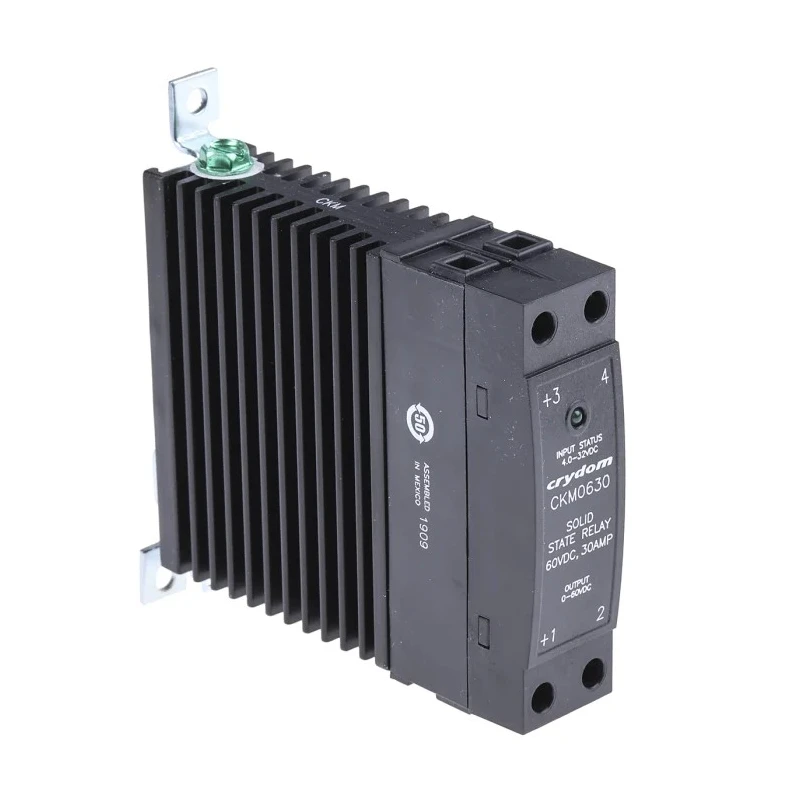

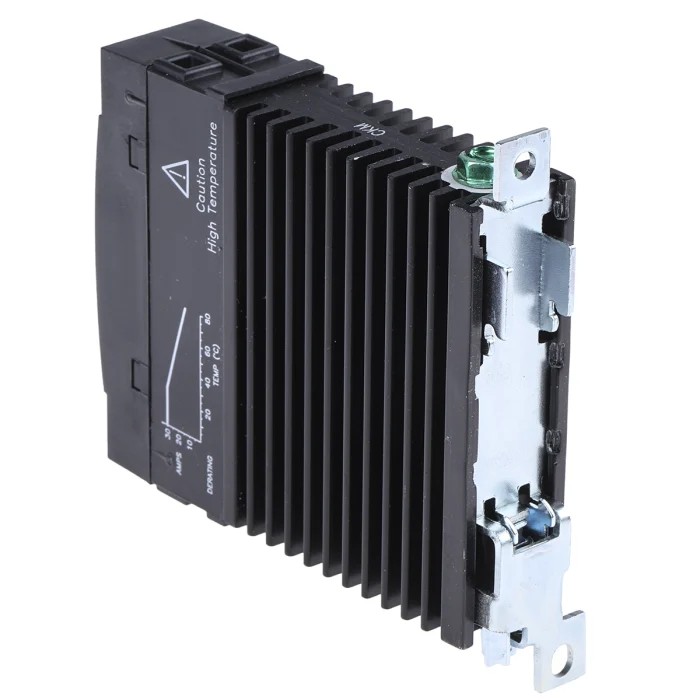

Crydom Solid State Relay CKM0630, 30A Load 60V DC Output, DIN Rail Mount, 32V DC Control, IP20
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 81.9mm |
| Length | 81.3mm |
| Model | CKM0630 |
| IP Rating | IP20 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Output type | SCR |
| Series | CKM0630 |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Box Clamp |
| Maximum Load Current | 30A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 60V |
| Minimum Load Voltage | 0V dc |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 0.1mA |
| On State Resistance | 16mΩ |
Key Features
- This relay supports maximum load current of 30A for heavy-duty DC applications.
- Flexible input control voltage ranges from 4V to 32V DC for wide compatibility.
- Compact DIN rail mounting eases integration into industrial panels and setups.
- Epoxy encapsulation offers high thermal conductivity and insulation.
- Broad operating temperature from -40°C to 80°C allows performance in harsh environments.
- Fast switching response times of 1ms help in precise control.
- Box clamp terminals provide secure wiring connections.
- Includes IP20 protection for safety in electrical environments.
Product Description
Crydom CKM0630 is a robust solid state relay engineered for fast and reliable DC switching in industrial environments. Designed for DIN rail mounting, it enables efficient transfer of DC power from control circuits to load circuits, supporting heavy-duty operations such as lighting systems, motors, and automation equipment.
With its maximum load current capability of 30A and output voltage tolerance up to 60V DC, this relay is an effective solution for medium- to high-power requirements. The relay accepts control voltage from 4V to 32V DC, making it compatible with a broad range of controllers and PLCs.
Epoxy encapsulation enhances heat dissipation and insulation, supporting stable operation under demanding conditions. The CKM0630 responds rapidly to input signals, delivering on/off switching times of just 1ms for precise circuit control.
The relay features box clamp terminals that ensure secure and stable cable connections, contributing to simplified installation and maintenance. Its compact size - measuring 81.3mm in length, 22.5mm in width, and 81.9mm in height - optimizes panel space and supports dense layouts.
Built to operate reliably between temperatures of -40°C and +80°C, the CKM0630 is suitable for harsh industrial, automation, and laboratory settings. Its IP20 protection rating ensures electrical safety and dust resistance.
Common applications include industrial controls, process automation, laboratory equipment, lighting, and motor actuation. The relay’s solid state switching eliminates mechanical wear and improves service life and system reliability.
Maximum load current handling of 30A for demanding DC circuits. DIN rail mounting for streamlined integration into control cabinets. Compatible with control voltage range from 4V to 32V DC. Encapsulated in thermally conductive epoxy for effective heat management.
Operational temperature window from -40°C to 80°C for industrial reliability. Secure box clamp terminals and fast 1ms switching. IP20 rated for basic safety in electrical installations. Explore more similar Solid State Relays and Crydom solutions in EnvMart’s Electronics & Electricals catalogue.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this relay is 30A, suitable for heavy-duty DC applications.
This model accepts a control voltage range from 4V to 32V DC, making it compatible with various controllers and PLCs.
The output voltage tolerance of the CKM0630 is up to 60V DC, allowing it to handle medium- to high-power requirements.
The relay measures 81.3mm in length, 22.5mm in width, and 81.9mm in height, optimizing panel space for installation.
The CKM0630 has an IP20 rating, providing basic safety and dust resistance in electrical installations.
This model features box clamp terminals, which ensure secure and stable cable connections for simplified installation.
The operational temperature range for the CKM0630 is from -40°C to 80°C, making it suitable for harsh industrial environments.
The relay has a fast switching response time of 1ms, allowing for precise control in circuit operations.
Yes, this relay complies with RoHS standards, ensuring it meets environmental safety regulations.
The CKM0630 is encapsulated in thermally conductive epoxy, which enhances heat dissipation and insulation.
This relay is commonly used in industrial controls, process automation, laboratory equipment, lighting, and motor actuation.
The on-state resistance for this relay is 16mΩ, contributing to its efficient performance in switching applications.
