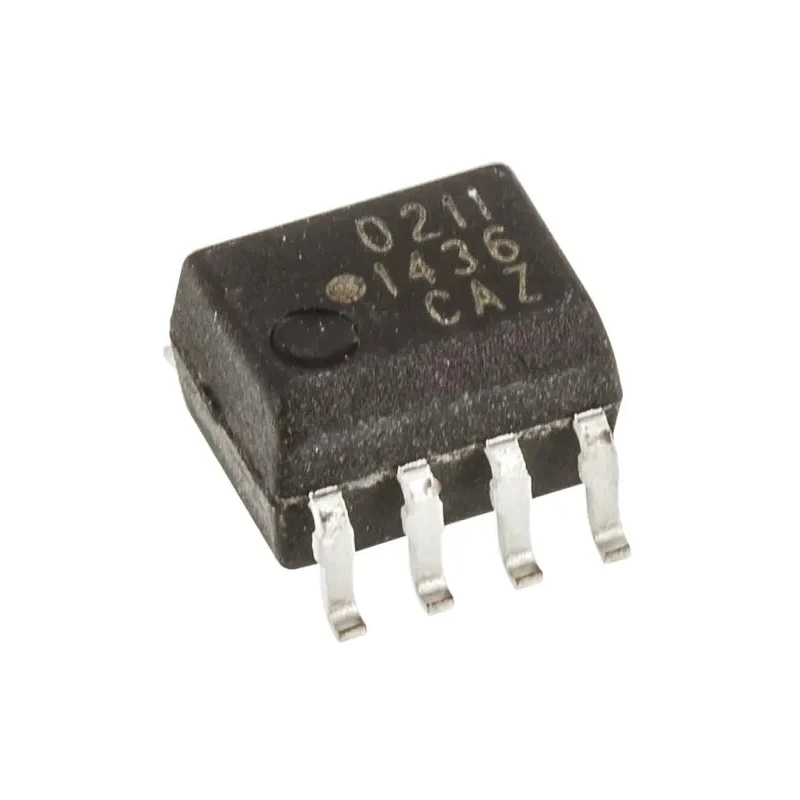

Broadcom DC Input Optocoupler Through Hole SOIC 8-Pin 1.85V Isolation Logic-Gate Output HCPL-0211-000E

The Broadcom HCPL-0211-000E is a high-performance DC input optocoupler designed for electrical signal isolation in electronic circuits. Combining robust isolation of 3.75 kVrms with fast digital switching speeds, this optocoupler is engineered for industrial, automotive, and commercial applications where reliable transmission of logic signals is essential.

Equipped with logic-gate output, the HCPL-0211-000E operates efficiently with a maximum input current of 10 mA and a forward voltage of 1.85V, making it suitable for digital interface applications requiring enhanced noise immunity and electrical safety. The optocoupler's typical rise and fall times (30 ns, 7 ns respectively) ensure swift data propagation, supporting applications in high-speed communication and signal processing.

This device is provided in a compact SOIC package with eight pins and a single channel, ideal for PCB integration in both automated and manual assembly workflows. Through hole mounting and tube packaging allow for straightforward insertion in production environments, enhancing efficiency and reliability during manufacturing.

The wide operating temperature range from -40°C to 85°C enables the device to perform effectively in challenging conditions, including automotive and industrial automation systems. Certified to IEC, CSA, EN, and UL safety standards and compliant with automotive AEC-Q100 requirements, the HCPL-0211-000E ensures dependable performance in safety-critical and regulated contexts.

Applications include logic-level signal isolation in power supplies, motor drives, data communication interfaces, and microcontroller circuits. The product's compact footprint and electrical parameters make it ideal for use in displays, optoelectronic modules, and photodetector assemblies.

3.75 kVrms isolation voltage provides robust protection against electrical surges and transients. SOIC 8-pin through hole design simplifies PCB assembly in production and prototyping environments. High-speed logic-gate output accommodates demanding digital interface requirements.

Automotive standard compliance (AEC-Q100) broadens suitability for vehicle electronics and harsh environments. Wide operating temperature range ensures reliable performance from cold storage to elevated ambient conditions.

Certified by IEC, CSA, EN, and UL for global standards conformity. Typical tube packaging supports process automation and efficient supply chain integration. Explore more Broadcom Optocouplers and displays & optoelectronics in Electronics & Electricals category at EnvMart.
