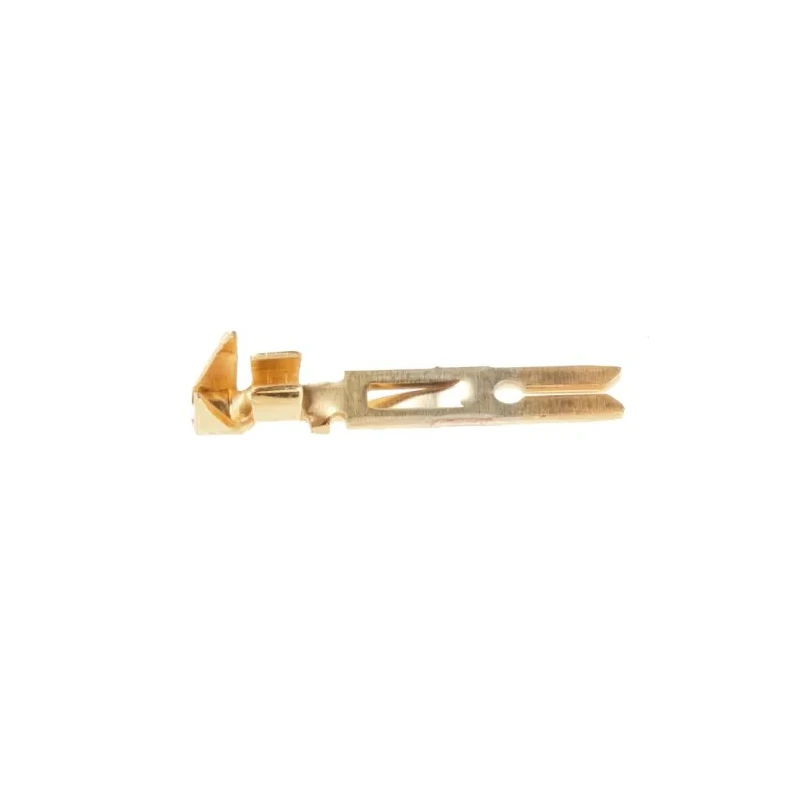

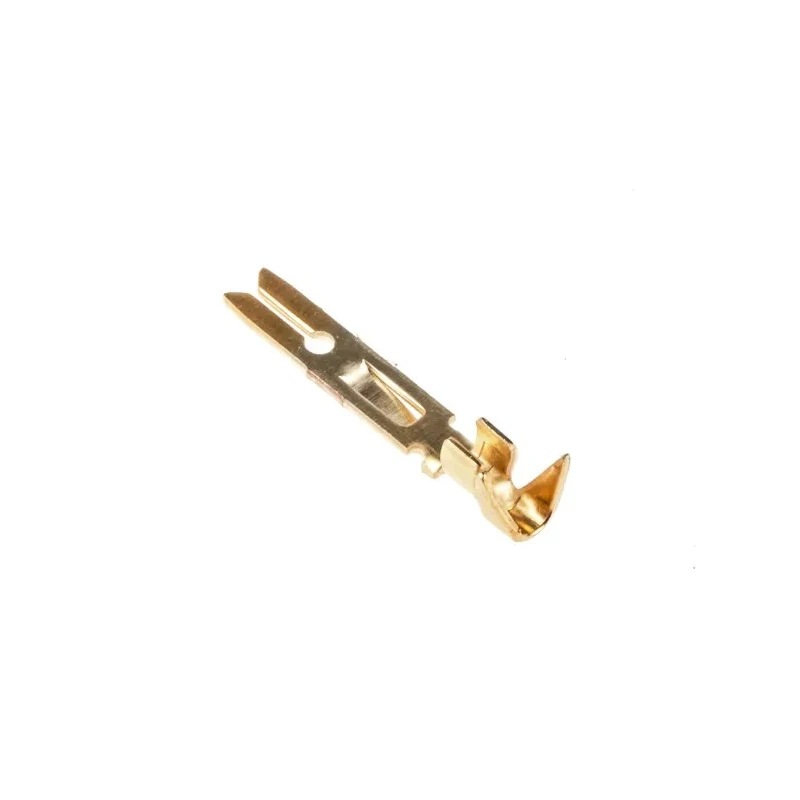

EDAC 290 Way Straight D-Sub Connector, Female, Crimp, Polarizing, 8.5A, Phosphor Bronze, Gold over Nickel, 516-290-590
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | EDAC |
| Orientation | Straight |
| Current | 8.5A |
| Contact Material | Phosphor Bronze |
| Series | 516 |
| Mounting Hardware | Polarizing |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 290 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Contact Gender | Female |
| Connector Gender | Female |
| EDAC Solder Tag, Phosphor Bronze Contacts, Gold over NickelBrand | EDAC |
Key Features
- Provides 290 contacts for comprehensive multipole connectivity.
- Features a straight connector orientation and female crimp contact gender.
- Rated for 8.5A current, supporting both industrial and high-reliability applications.
- Utilizes phosphor bronze contacts with gold over nickel plating for improved conductivity and durability.
- Equipped with polarizing hardware to ensure secure and correct mating alignment.
- Designed to operate reliably from -65°C to 125°C for harsh environments.
- Suitable for panel or cable-to-cable applications in automation, railway, broadcast, and process control.
- Hermaphroditic metal-to-metal contact design ensures a secure electrical connection.
Product Description
The EDAC 516-290-590 is a 290-way, straight D-Sub connector designed for reliable and high-density electronic interfacing in various industrial and automation environments. Its female crimp-type contacts make it suitable for complex wiring requirements, delivering a versatile solution for both cable-to-panel and cable-to-cable connections.
This connector is engineered with phosphor bronze contacts plated in gold over nickel, which significantly enhances electrical conductivity, corrosion resistance, and signal integrity. With a robust current rating of 8.5A, it is ideal for mission-critical applications where resourceful multipole connectivity and dependable performance are paramount.
The straight configuration and secure polarizing mounting hardware not only simplify installation but also prevent incorrect mating. Hermaphroditic metal-to-metal contact design adds further assurance of a secure and stable electrical connection, which is vital in high-vibration industrial or transport settings. The connector’s construction allows it to perform effectively across a wide temperature range from -65°C to 125°C, making it suitable for both extreme cold and high-heat industrial processes.
Typical use cases include industrial automation, railway signaling, audio broadcasting, oil and gas industry control systems, and complex automotive control and test systems. The high contact count provides extensive wiring options for intricate control systems, while the high-reliability design supports applications that demand both safety and performance.
Certifications such as ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 ensure compliance with electrostatic discharge management in sensitive electronic environments, enhancing suitability for laboratory, manufacturing, and critical infrastructure contexts.
Overall, the EDAC 516-290-590 D-Sub connector is a robust, versatile, and compliant component perfect for advanced industrial, laboratory, broadcast, and transportation control applications requiring secure, reliable, and high-capacity connectivity.
Explore more D-Sub Connector products from EDAC and compare technical solutions for your electrical and control panel needs in the Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector is rated for a current of 8.5A, making it suitable for various industrial and high-reliability applications.
The contacts of this connector are made from phosphor bronze, which is plated with gold over nickel to enhance conductivity and corrosion resistance.
It is designed to operate reliably in a temperature range from -65°C to 125°C, suitable for harsh environments.
This model features 290 contacts, providing extensive wiring options for complex applications.
This connector utilizes a crimp termination type, which is suitable for secure and reliable connections.
Yes, it comes with polarizing mounting hardware to ensure secure and correct mating alignment during installation.
This connector complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 for electrostatic discharge management in sensitive environments.
The connector has a straight orientation, which simplifies installation in various applications.
It is suitable for panel or cable-to-cable applications in automation, railway, broadcast, and process control environments.
This model features a female connector gender, designed for use with female crimp contacts.
The country of origin for this connector is Taiwan.
The hermaphroditic metal-to-metal contact design ensures a secure and stable electrical connection, particularly in high-vibration environments.
