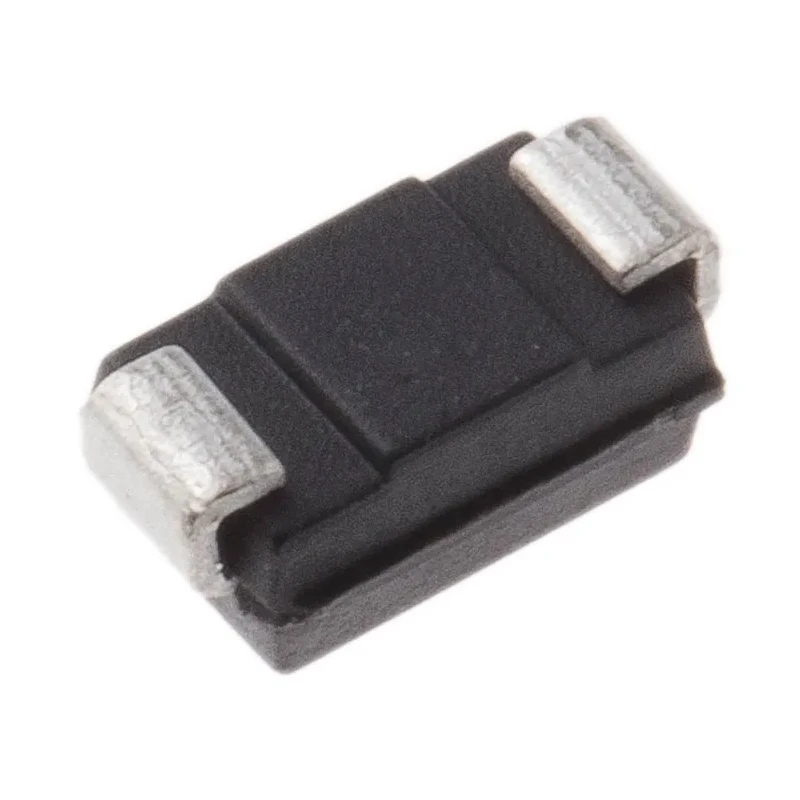

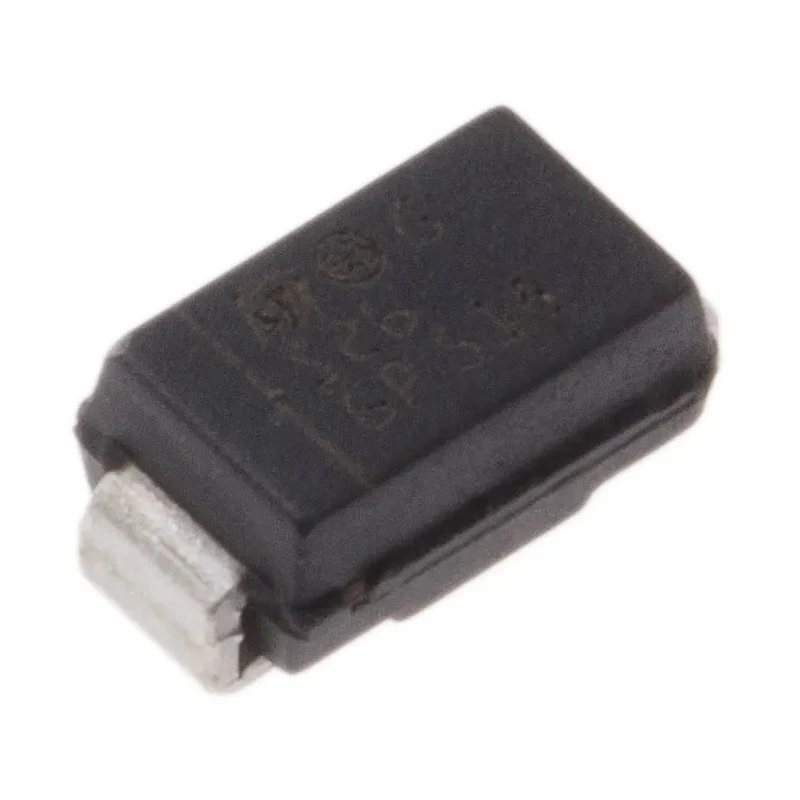

STMicroelectronics Schottky Diode 60 V 2 A DO-214AC Surface Mount STPS2L60A
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.03mm |
| Length | 4.6mm |
| Model | STPS2L60A |
| Width | 2.95mm |
| Mount Type | Surface |
| Series | STPS2L60 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 0.51V |
Key Features
- Efficient Schottky diode construction provides low forward voltage drop.
- Capability for continuous forward current up to 2 A.
- Qualified for peak reverse repetitive voltages up to 60 V.
- Surface mount DO-214AC package enables easy PCB integration.
- Low maximum forward voltage of 0.51 V enhances energy efficiency.
- Supports a broad operating temperature range, from -65°C to 150°C.
- Handles peak forward surge currents up to 75 A.
- Compact physical dimensions are suitable for dense circuit layouts.
Product Description
The STMicroelectronics STPS2L60A Schottky Diode is engineered for surface mount applications requiring reliable power rectification and high efficiency. This single rectifier device features advanced Schottky barrier technology, making it ideal for use in switching power supplies, DC-DC converters, and high-frequency circuits.
With a maximum continuous forward current rating of 2 A and the capability to handle peak reverse repetitive voltages up to 60 V, the STPS2L60A ensures optimal performance in demanding power management environments. Its low forward voltage drop (maximum 0.51 V) significantly reduces conduction losses, improving overall energy efficiency and thermal performance.
The diode comes in a DO-214AC surface mount package, simplifying integration into modern PCB layouts. The compact form factor (4.6 mm length, 2.95 mm width, 2.03 mm height) allows for dense circuit board design and fast automated assembly. The device operates reliably across a temperature range from -65°C to 150°C, supporting both industrial and commercial requirements.
Engineered for wide-ranging electronic applications, the STPS2L60A exhibits a peak non-repetitive forward surge current tolerance of up to 75 A, providing robust protection against power transients and surges. The maximum reverse current is rated at 100 μA, confirming excellent leakage performance.
Key industrial use cases include power supply rectification, DC-DC conversion, voltage clamping, reverse polarity protection, and RF signal applications, making the STPS2L60A suitable for electronics manufacturing, automation, energy systems, and laboratory designs.
Explore the complete range of Schottky Diode solutions from STMicroelectronics in the Semiconductor category at EnvMart to optimise your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating for this model is 2 A.
It can handle peak reverse repetitive voltages up to 60 V.
The maximum forward voltage drop is 0.51 V, which enhances energy efficiency.
This model operates reliably across a temperature range from -65°C to 150°C.
The dimensions are 4.6 mm in length, 2.95 mm in width, and 2.03 mm in height.
It comes in a DO-214AC surface mount package, facilitating easy PCB integration.
It can handle peak non-repetitive forward surge currents of up to 75 A.
The maximum reverse current is rated at 100 μA, indicating excellent leakage performance.
This model is a single Schottky rectifier, suitable for various electronic applications.
It is suitable for applications such as power supply rectification, DC-DC conversion, and reverse polarity protection.
This diode has a pin count of 2.
The country of origin for this model is India.
