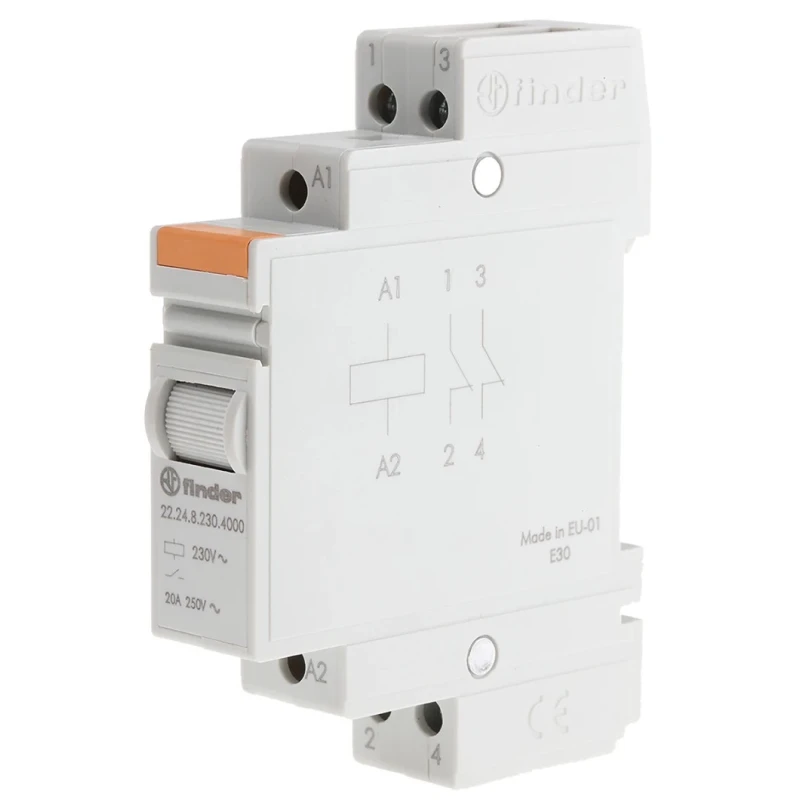

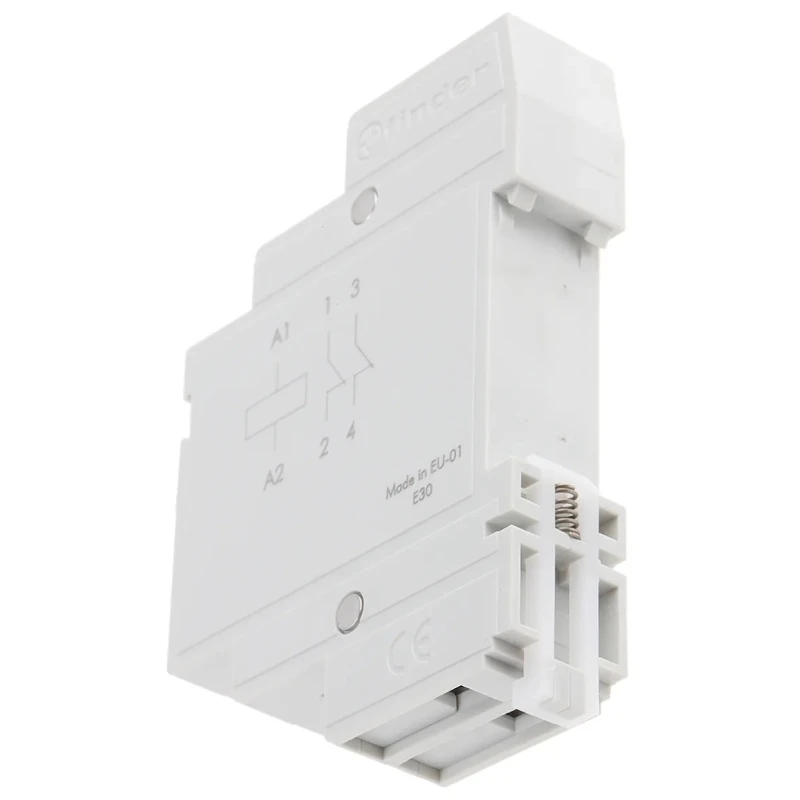

Finder DIN Rail Power Relay, 230V AC Coil, 20A, DPST, Silver Alloy Contacts, Series 22 22.24.8.230.4000

Finder 22.24.8.230.4000 DIN Rail Power Relay is a high-performance relay solution engineered for reliable operation in demanding environments. Designed for 35mm DIN rail mounting, it is suitable for integration in industrial panels and automation systems. With a coil voltage of 230V AC and DPST (Double Pole Single Throw) contact configuration, this relay is capable of simultaneously switching two circuits, making it ideal for complex control scenarios.

The relay can manage a switching current up to 20A and supports a maximum switching voltage of 400V AC, providing robust control for lighting, motors, pumps, and other high-power loads. Silver alloy contact material ensures dependable conductivity and minimizes resistance, while the secure screw terminals allow for easy and stable wire attachment.

Built to withstand extreme temperatures, it operates from -40°C up to +40°C, ensuring reliability even in harsh installations. The device is rated for a mechanical life of 50,000 cycles, supporting long-term use in applications such as hotel energy management, garden and night lighting, streetlight automation, office lighting, and industrial pump control. It also supports DC loads with a maximum switching voltage of 24V DC, offering flexibility for diverse circuit types.

The relay's Series 22 design incorporates a compact form factor (84mm length, 58.4mm height and width) that makes it easy to install in standard enclosures, while the RoHS compliance ensures environmental safety. The coil resistance of 4.3kΩ is optimized for efficient activation and power consumption.

For engineers and facility managers, this relay simplifies control tasks and enhances electrical safety for both commercial and industrial settings. Its solid construction, high load capacity, and flexible configuration promote error-free operation and extended service life.

Compact power relay designed for DIN rail mounting. Operates with a 230V AC coil voltage, suitable for direct connection to standard electrical supply. DPST contact configuration enables effective dual circuit control. Handles switching currents up to 20A, making it ideal for high-load applications.

Robust silver alloy contact material ensures durability and enhanced conductivity. Easy screw terminal connections for secure and straightforward wiring. Supports maximum switching voltage of 400V AC for versatile circuit management.

Wide operating temperature range from -40°C to +40°C for reliability in diverse environments. Rated mechanical life of 50,000 cycles for long-term use. Ideal for lighting control, pump regulation, and other industrial automation tasks.

This relay is commonly used in industrial, commercial, and facility automation projects, including lighting controls, pump systems, HVAC circuits, street lighting, and office energy optimization. Browse more Power Relays and Discover Finder’s full relay catalog on EnvMart.
