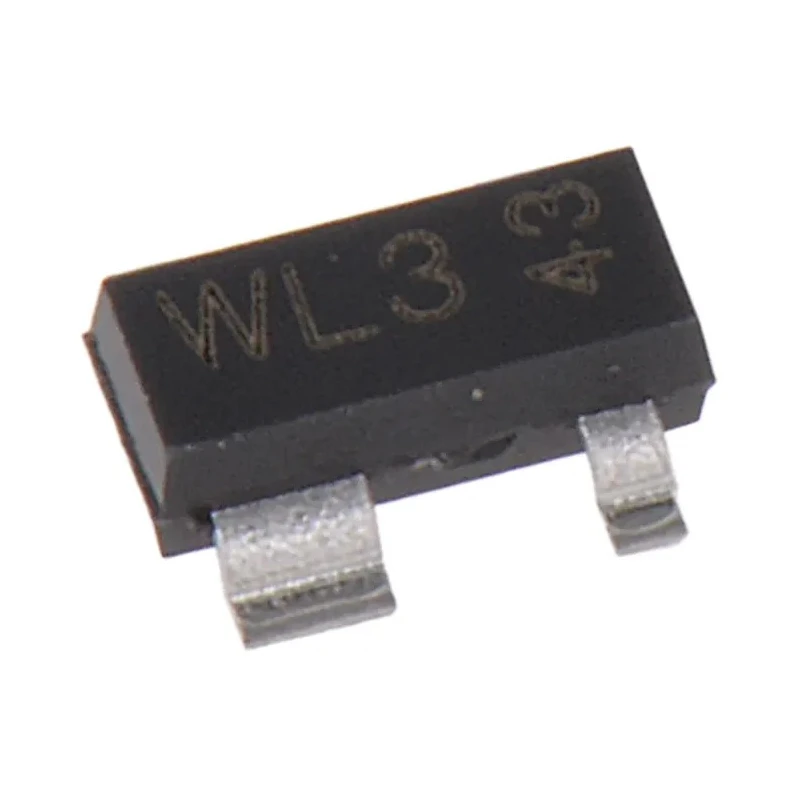

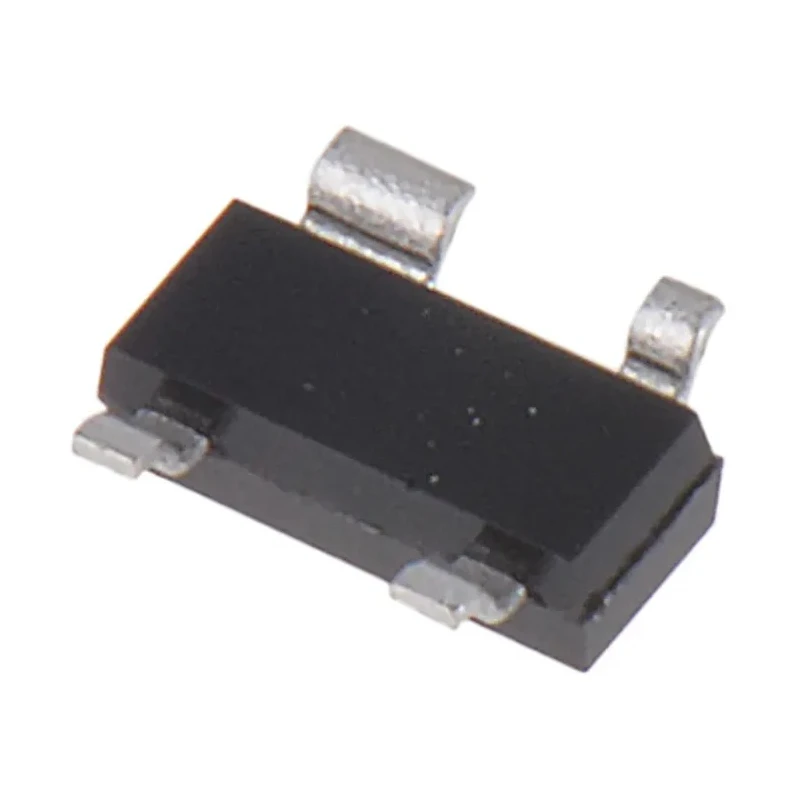

Nexperia Small Signal Switching Diode 250 V 225 mA SOT-143 Surface Mount BAV23,215

Nexperia BAV23,215 is a small signal switching diode engineered to deliver reliable performance in signal switching and rectification circuits. With a maximum continuous forward current of 225 mA and a peak reverse repetitive voltage of 250 V, this diode is optimized for demanding electronic applications where fast switching and precision are vital.

Housed in a compact SOT-143 surface mount package, the BAV23,215 enables high-density circuit assembly while maintaining electrical integrity and mechanical reliability. The device features an isolated configuration and belongs to the BAV23 series, supporting customized circuit designs that require low leakage and high-voltage operation.

This diode achieves high switching speeds with a peak reverse recovery time of 50 ns, making it ideal for high-frequency signal circuits and digital logic transitions. Its peak non-repetitive forward surge current of 9 A ensures resilience to transient events, protecting sensitive electronics during unexpected power fluctuations.

The maximum forward voltage is specified at 1.25 V, and the diode maintains a peak reverse current of only 100 nA, promoting energy efficiency and minimizing signal distortion. With a wide operating temperature range from -65°C to 150°C, the BAV23,215 is suited for applications in environments with significant thermal variation, such as industrial, automotive (non-standard), and advanced manufacturing systems.

Physical dimensions are tightly controlled at 3 mm length, 1.4 mm width, and 1 mm height. These compact proportions facilitate integration into modern PCB layouts where board space is limited or high-density mounting is required.

Engineered for signal switching and rectification in high-frequency circuits. Reliable surface mount construction in SOT-143 package for automated assembly lines. Suitable for use in industrial, manufacturing, and laboratory electronic systems.
