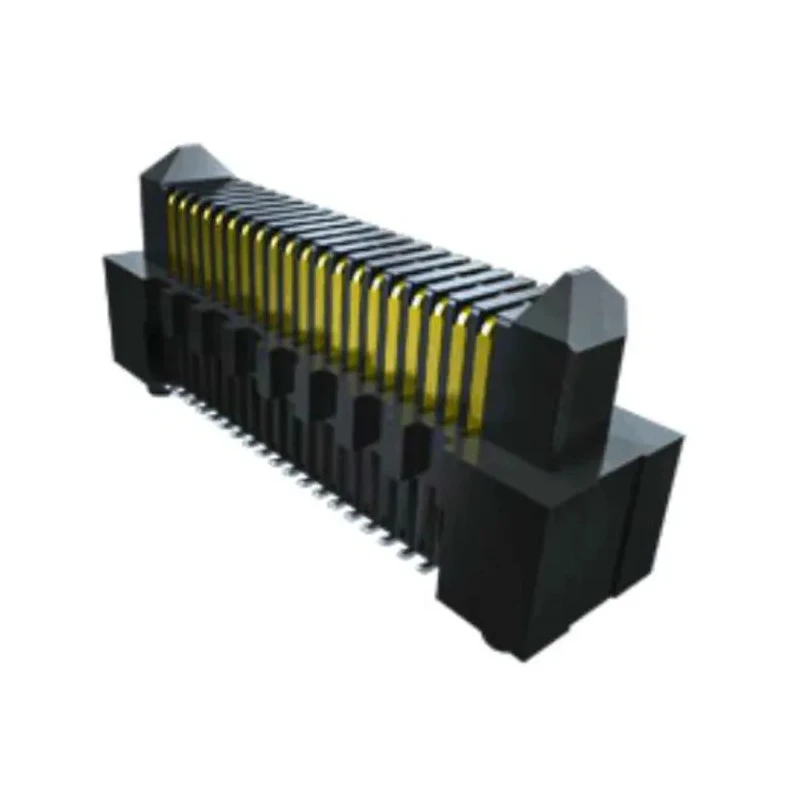

Samtec Vertical Surface PCB Header, 120 Contacts, 0.8 mm Pitch, 2 Row, Shrouded, Liquid Crystal Polymer, Edge Rate ERM8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 318V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 1.4A |
| Model | ERM8 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ERM8 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 120 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
| Contact System | Edge Rate |
Key Features
- Provides 120 contacts with 0.8 mm pitch for dense board-to-board connections.
- Features two rows and shrouded construction for secure mating.
- Surface mount orientation with solder termination ensures reliable installation.
- Constructed with liquid crystal polymer housing and gold-plated phosphor bronze contacts.
- Edge Rate contact system supports high mating cycles and 56Gbps PAM4 performance.
- Operates across an extended temperature range of -55°C to 125°C.
- Male contacts with broad milled surfaces for increased wear life.
Product Description
The Samtec ERM8-060-05.0-L-DV-TR is a vertical surface mount PCB header designed for high-speed, high-density board-to-board connections. With 120 contacts arranged in two rows at a precise 0.8 mm pitch, this shrouded header addresses the requirements of advanced electronic systems, enabling secure mating and consistent signal transmission.
This device features the Edge Rate contact system, optimized for frequent mating cycles and demanding signal requirements such as 56Gbps PAM4, making it suitable for applications in data communications, industrial control, instrumentation, and advanced embedded systems. The contacts are made from phosphor bronze and finished with 0.25 μm gold plating, ensuring both conductivity and long-term durability.
The housing is crafted from liquid crystal polymer, providing excellent dimensional stability and resistance to extreme temperatures ranging from -55°C to 125°C. Surface mount installation simplifies integration onto modern PCBs, while solder termination ensures robust mechanical and electrical connections.
With a rated voltage of 318 V and a maximum current of 1.4A per contact, this header is engineered to meet stringent safety and electrical standards. The shrouded design helps prevent damage and enhances connection precision, while the male contact gender supports a wide range of mating PCB header applications.
Industrial and commercial use cases include advanced automation systems, laboratory electronics, test and measurement boards, network infrastructure, and embedded computing platforms where high-density, high-reliability connections are essential. The smooth broad milled contact surfaces further contribute to increased wear life, making this header an excellent choice for environments involving frequent reconfiguration or maintenance.
For engineers and designers seeking a reliable, high-performance PCB header solution, the Samtec ERM8-060-05.0-L-DV-TR combines precision, durability, and robust electrical characteristics to enable innovation in industrial and electronic systems. Explore more PCB Headers and board-to-board connectors from Samtec and related categories on EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a pitch of 0.8 mm and provides 120 contacts arranged in two rows.
The maximum current rating for each contact is 1.4A.
It operates across an extended temperature range of -55°C to 125°C.
The housing is made from liquid crystal polymer, while the contacts are constructed from phosphor bronze and finished with gold plating.
It uses solder termination for reliable connections.
This unit is designed for vertical surface mount orientation.
The rated voltage for this header is 318V.
It features the Edge Rate contact system, which supports high mating cycles and demanding signal requirements.
It is suitable for applications in data communications, industrial control, instrumentation, and advanced embedded systems.
The contacts are male, which supports a wide range of mating PCB header applications.
The shrouded design enhances connection precision and helps prevent damage.
The country of origin for this product is India.
