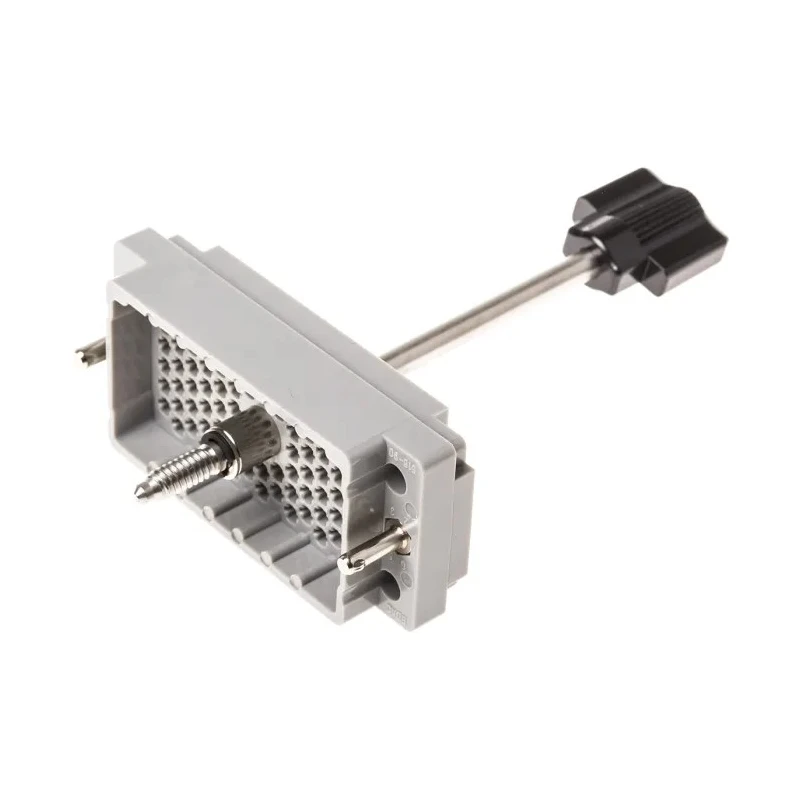

EDAC D-Sub Connector, 90 Way, Straight, Male, 3.81 mm Pitch, 8.5A, Plastic Housing, 516-090-000-301

Name: EDAC D-Sub Connector, 90 Way, Straight, Male, 3.81 mm Pitch, 8.5A, Plastic Housing, 516-090-000-301
Brand: EDAC
SKU: 84067
Price: 32.1 USD
Availability: InStock



Category D-Sub Connector Brand EDAC Condition New

Specifications

Country of Origin	China
Brand	EDAC
Orientation	Straight
Current	8.5A
Housing Material	Plastic
Contact Material	Phosphor Bronze
Series	516
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Pitch	3.81mm
Contact Plating	Gold
Number of Contacts	90
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Contact Gender	Male
Connector Gender	Male

Key Features

Robust D-Sub connector with 90 contacts for high-density electronic connections.
Straight orientation, ideal for panel and chassis applications.
Features solder termination and hermaphroditic metal-to-metal contact design.
Rated for up to 8.5A current, supporting demanding power and signal environments.
Constructed with a durable plastic housing and phosphor bronze contacts with gold plating for reliable performance.
Operating temperature ranges from -65°C to 105°C for industrial and automotive applications.
3.81 mm pitch enables compact installation in control systems.
Male plug suitable for use in railway signaling, broadcast, oil and gas industry control, and general industrial test systems.

Product Description

EDAC 516-090-000-301 is a heavy duty D-Sub connector featuring a straight male plug configuration with 90 contacts and a 3.81 mm pitch. Designed for reliability and safety, it utilizes hermaphroditic metal-to-metal contacts housed in a robust plastic body, ensuring secure connections in high-density applications. This connector is adapted for solder termination and is capable of handling current ratings up to 8.5A, which makes it suitable for both power and signal transmission across a range of electronic and industrial environments.

The 516 series is engineered to withstand challenging operating conditions, supporting an extended temperature range from -65°C to 105°C. The phosphor bronze contacts are gold-plated to promote optimal conductivity and minimize contact resistance, while the plastic housing is formulated for structural strength and electrical insulation. Designers benefit from the flexibility this connector offers, as it can function as either the fixed or free half in modular board and panel layouts.

Common use cases include industrial automation control systems, railway signaling, broadcast equipment, oil and gas industry platforms, automotive electronic control units, and laboratory test setups. Its straight orientation facilitates integration into chassis and panels, while the 90-way configuration meets the requirements for high signal or power line density.

Solder termination is particularly preferred in permanent installations with demanding electrical and mechanical reliability standards. The connector's pitch of 3.81 mm allows for space-efficient designs, especially where board real estate is limited. Crimp, solder, and wire wrap contact options are available for the housing, enhancing adaptability to system requirements.

EDAC D-Sub Connectors comply with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007. While the specific product does not carry additional standards/approvals, it is built for consistent electrical performance and safe operation.
