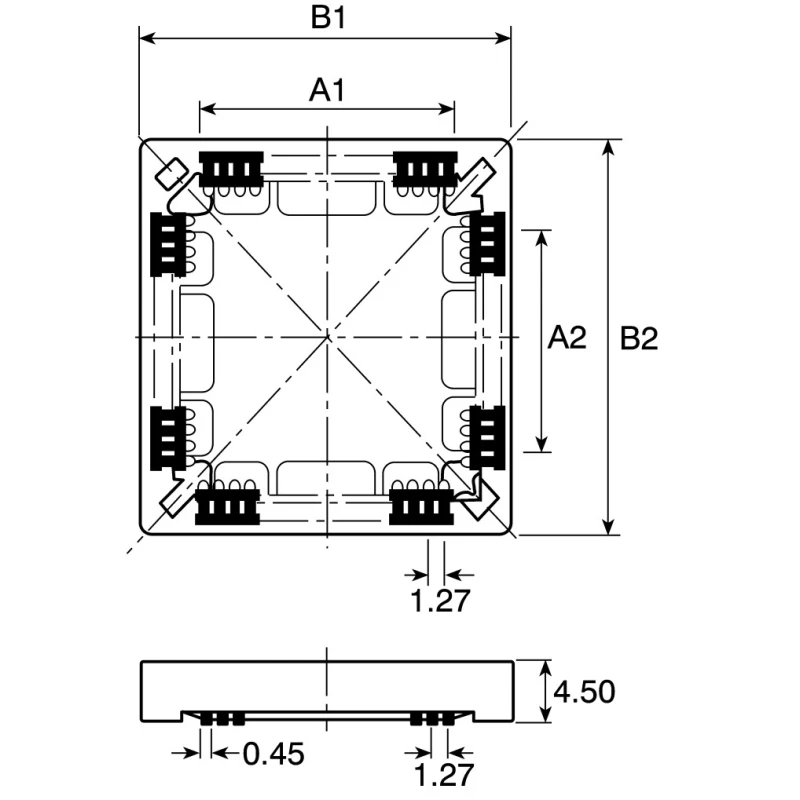

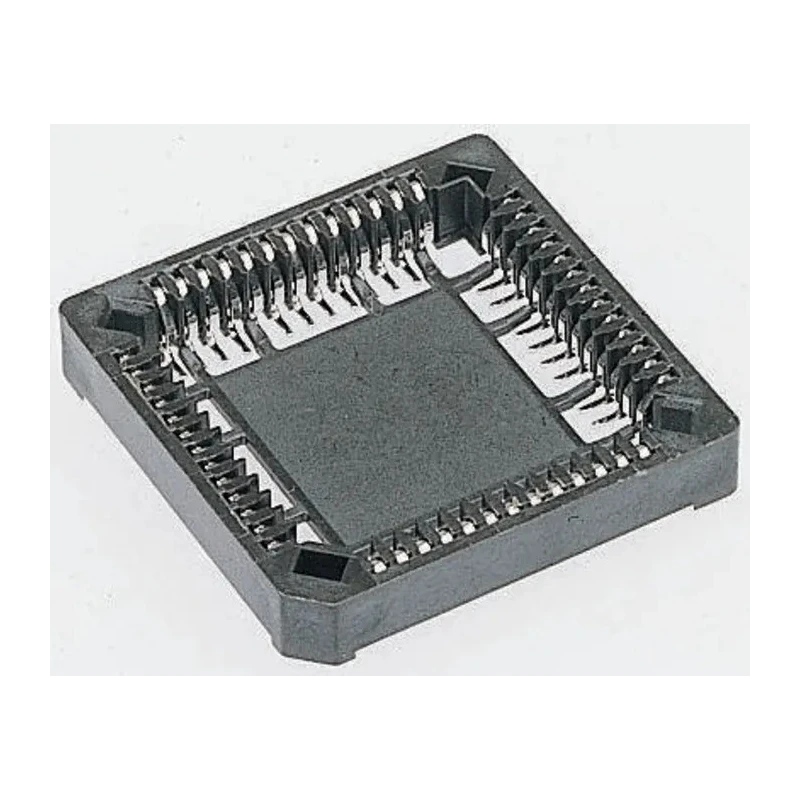

Winslow PLCC Socket 1.27mm Pitch 28 Way, Through Hole, Straight, Phosphor Bronze Contacts, Tin Plated, 150V DC WPLCC028-ST1RC

Winslow WPLCC028-ST1RC is a precision-engineered PLCC socket, offering a 1.27mm pitch and 28-way connectivity in a straight, through-hole configuration. Designed for secure and reliable integration of PLCC-type ICs within electronic circuits, this socket is built for high-performance PCB applications in commercial, industrial, and laboratory environments.

The contacts are fabricated from phosphor bronze, ensuring superior electrical conductivity and resilience, while tin over copper plating enhances connection reliability and mitigates potential corrosion. The through-hole termination allows for stable mechanical fastening and electrical contact with circuit boards, critical for professional electronic assembly and maintenance.

The socket’s housing is made of polyphenylene sulphide, delivering remarkable thermal and chemical resistance, suitable for both high- and low-temperature operation. Operating safely from -55°C to 105°C, this socket meets stringent industrial design requirements. With a voltage rating up to 150V DC and 1A current capacity, the device handles a diverse range of electronic demands.

Key physical features include standoffs to facilitate efficient PCB cleaning and a window for easy solder joint inspection, allowing for streamlined quality checks and maintenance. Polarizing features guarantee correct chip carrier orientation, preventing insertion errors and improving system reliability. Contacts are organized on a 0.1 inch grid, adhering to JEDEC industry pattern standards.

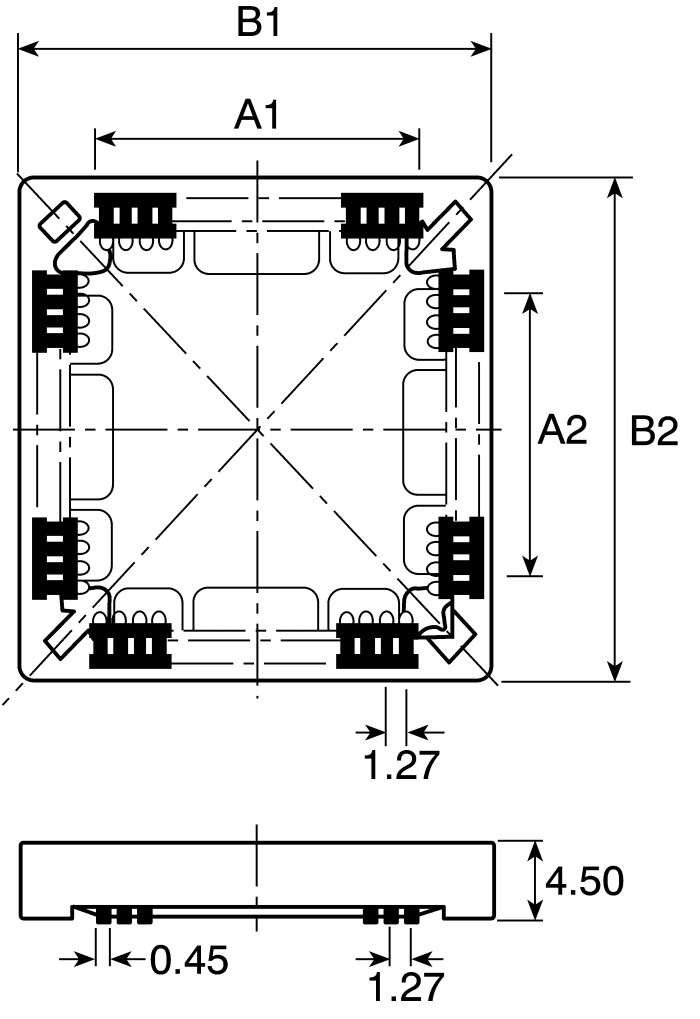

Winslow’s WPLCC028-ST1RC socket offers a low-profile build, just 4.5mm high, optimizing board space without compromising structural integrity. The socket’s robust design is suitable for various applications including manufacturing, test equipment, laboratory instrumentation, communication systems, and embedded electronics.

Commercial and industrial customers value the precision and durability provided by this PLCC socket, as well as its adaptability to both automated and manual assembly processes. The socket’s build quality ensures long-term operational stability and maintenance ease, making it an excellent choice for PCB engineering and upgrade projects.

1.27mm pitch for standardized IC compatibility. 28 contacts for versatile multi-pin IC support. Straight, through-hole configuration maximizes mechanical stability. Phosphor bronze contacts with tin plating deliver robust and reliable connections.

Polyphenylene sulphide housing provides superior heat and chemical resistance. Operating range from -55°C to 105°C suits wide industrial applications. 150V DC, 1A rating supports rigorous electronic requirements. Standoffs and inspection windows simplify cleaning and solder verification.

Polarizing feature eliminates incorrect chip placement. Complies with JEDEC and industry standards for PLCC sockets. Explore Winslow’s range of connectory solutions for advanced electronic system integration in EnvMart’s Electronics & Electricals category.
