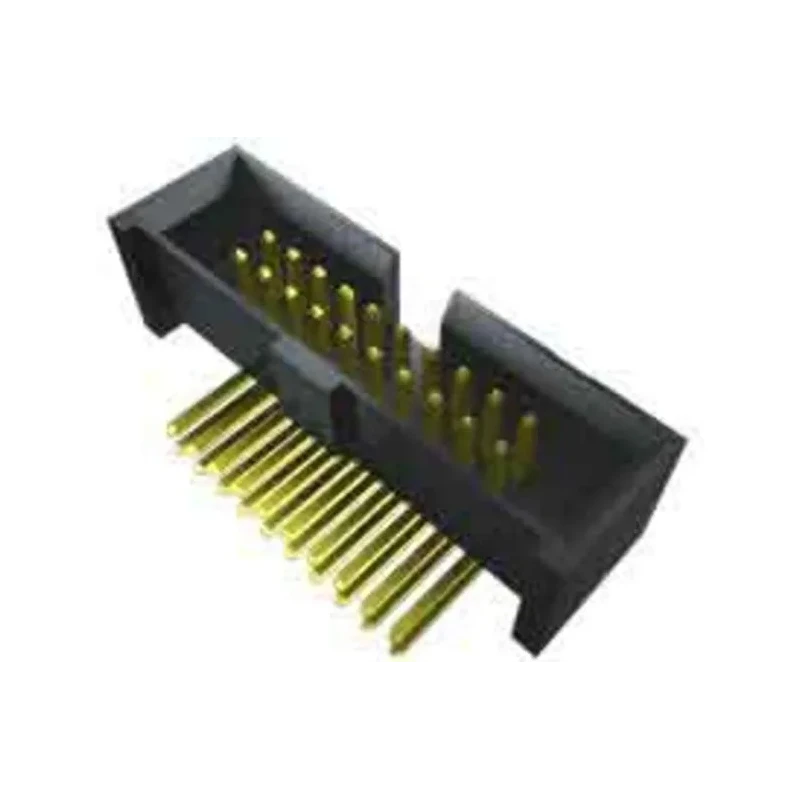

Samtec SHF Series Straight Surface PCB Header, 20 Contacts, 1.27 mm Pitch, 2 Row, Shrouded SHF-110-01-L-D-SM-K-TR

Samtec's SHF-110-01-L-D-SM-K-TR is a straight surface mount PCB header engineered for precise board-to-board interconnections. Its compact 1.27 mm pitch supports high-density circuit layouts, making it ideal for advanced electronics, instrumentation, and control systems.

This header accommodates 20 contacts distributed over two rows, enhancing signal integrity in applications where space-saving design is critical. The shrouded construction includes a polarization notch, which ensures correct mating and reduces the risk of misalignment. Gold-plated phosphor bronze contacts deliver excellent corrosion resistance and electrical conductivity, while the liquid crystal polymer housing contributes to mechanical stability and thermal tolerance.

The surface mount configuration allows for seamless automated placement on printed circuit boards, streamlining manufacturing workflows in industrial electronics, automation, medical device assembly, instrumentation, and telecommunications equipment. Rated for operation between -55°C and 125°C, this connector withstands harsh environmental conditions found in industrial, laboratory, and commercial settings.

Reliable solder termination ensures robust attachment to PCBs, and the male contact gender provides compatibility with a broad array of mating connectors. The SHF series supports common pin counts, enabling flexible design choices across electronic products. Mates with FFSD/FFTP connectors, excluding strain relief, for versatile interconnection options.

This header is compliant with modern surface-mount technology standards, and its shrouded design is preferred for applications where secure connection and polarization are essential. Typical uses include industrial control modules, embedded systems, sensor interfaces, and precision measurement devices.

20 contact positions arranged in dual rows. 1.27 mm pitch for space-efficient designs. Liquid crystal polymer housing provides durability. Gold-plated phosphor bronze contacts for reliable conductivity. Straight surface mount orientation facilitates automated assembly.

Operating temperature range: -55°C to 125°C. Shrouded header ensures secure and polarized mating. Compatible with solder termination for robust PCB connections. Explore more PCB Headers, connectors, and related electronic components by browsing the Samtec brand and the Electronics & Electricals category on EnvMart.
