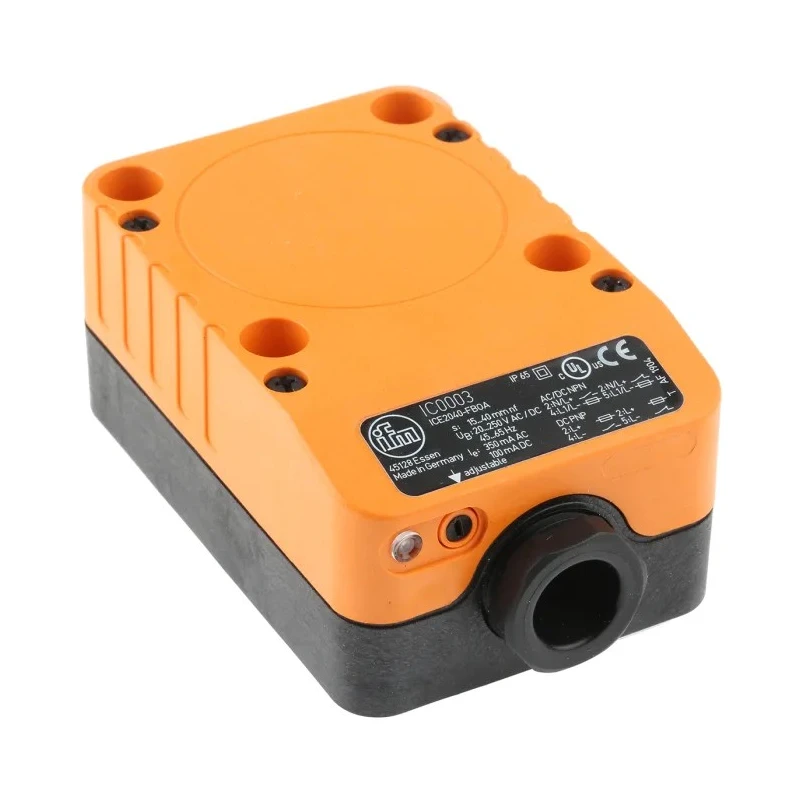

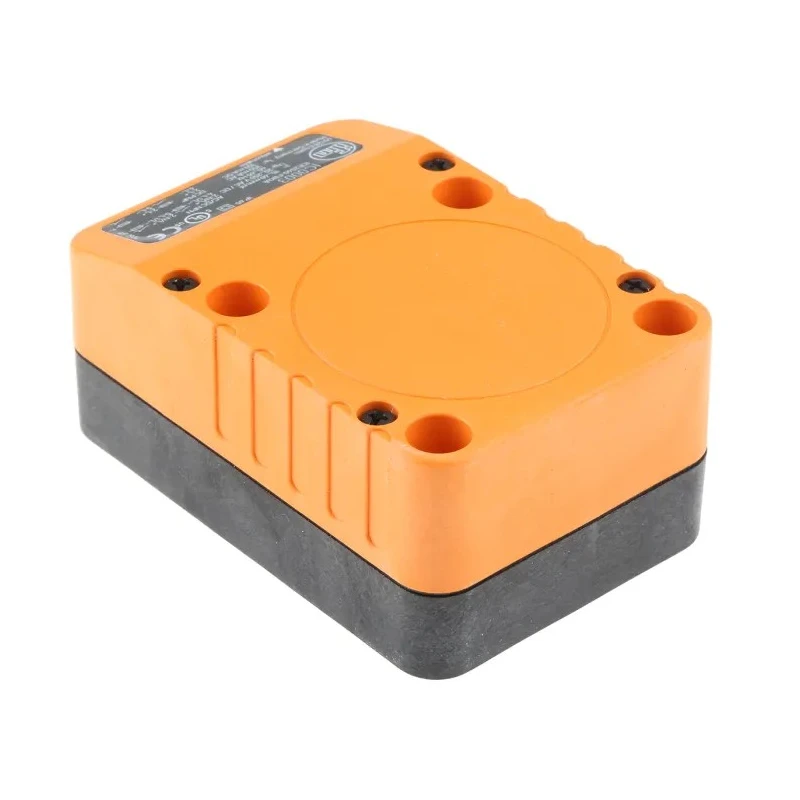

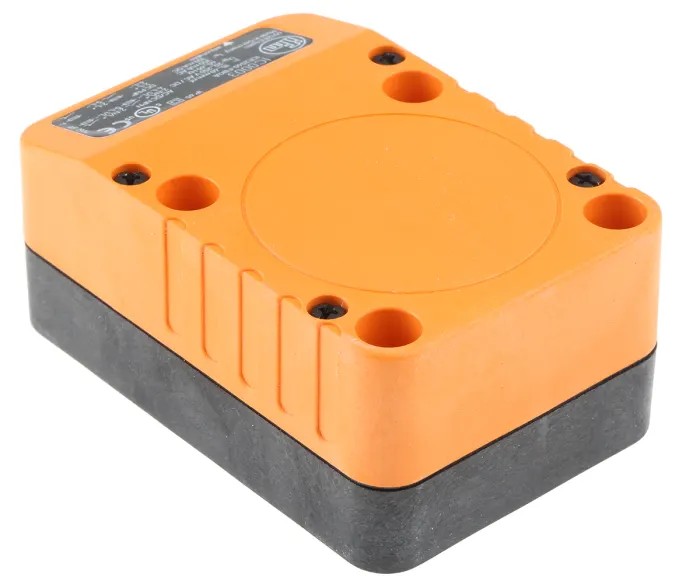

ifm electronic Block Inductive Proximity Sensor ICE2040-FBOA PG13.5 2-Wire 250V AC/DC 40 mm IC0003

ifm electronic IC0003 is a reliable block Inductive Proximity Sensor designed for automation and control applications requiring DC and AC voltages up to 250 V. Featuring a robust polyphenylene ether housing, this sensor ensures durability with an IP65 ingress protection rating. It offers a non-flush mounting type with PG13.5 threading, suitable for diverse industrial installations.

The sensor provides a maximum detection distance of 40 mm using unshielded sensing technology, enabling proximity detection with a switching frequency of up to 10 Hz. Its 2-wire output simplifies connection, and screw terminals allow easy wiring with cables up to 2.5 mm². The IC0003 operates efficiently within an ambient temperature range from -25°C to 80°C, supporting use in harsh environments.

This unit includes short circuit and reverse polarity protection, along with an LED indicator to provide clear operational feedback. The sensor meets recognized industrial standards including EN 55011 Class B and prEN 60947-5-2 annex X, underscoring its compliance with safety and electromagnetic compatibility requirements.

Typical industrial applications include manufacturing automation, process control, packaging machinery, and robotics. It is suited for industrial, laboratory, and commercial environments where precise proximity detection is essential.

Block style sensor with 2-wire output for simplified wiring. Suitable for non-flush mount installation with screw terminals. Operating temperature range from -25°C to 80°C for varied conditions. Maximum switching frequency of 10 Hz for reliable sensing.

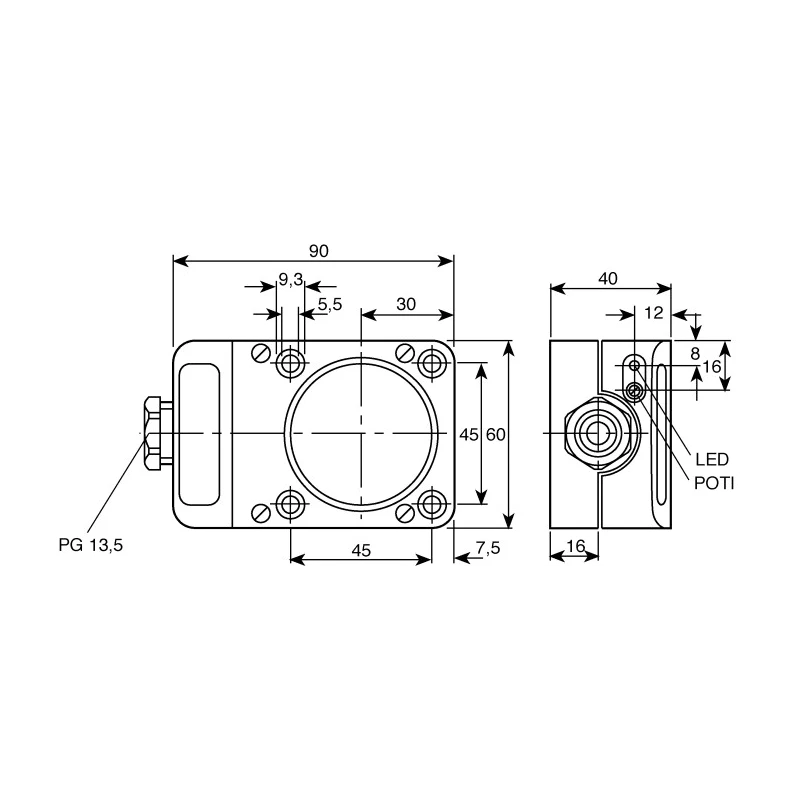

Unshielded sensor for proximity detection up to 40 mm. Compact dimensions: 90 mm width, 60 mm length, and 40 mm depth. Integrated LED on/off status indication for operational verification. Compliant with EN 55011 Class B and prEN 60947-5-2 annex X standards.

Manufactured in Romania with proven build quality. Explore the Electronics & Electricals category at EnvMart for additional sensors and automation components from ifm electronic, a trusted industry leader.
