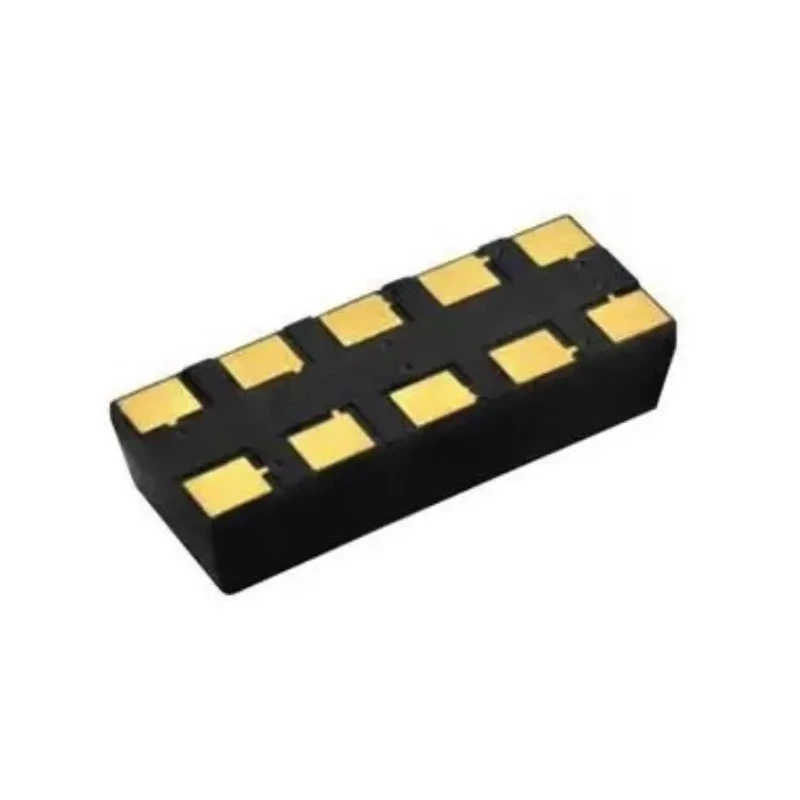

Vishay VCNL Ambient Light & Proximity Sensor 1.5m, 2.5V - 3.6V, SMD, 10 Pin, 400kHz, VCNL4200

The Vishay VCNL4200 combines ambient light and proximity sensor capabilities within a single, compact surface mount package. This IC is engineered for both high sensitivity and long-range detection, making it suitable for a wide range of industrial, consumer, and commercial electronics where precise object detection and light monitoring are required.

Offering a sensing distance up to 1.5 meters, it can reliably detect objects even under varying lighting conditions. It utilizes an integrated infrared emitter (IRED), ambient light sensor (ALS), and proximity sensor (PS), together with signal conditioning circuits that enable accurate readings in real-world environments. The high resolution 16-bit ALS ensures excellent ambient light sensing with flexibility for both dark and transparent lens designs.

This sensor operates at supply voltages from 2.5V to 3.6V, with a maximum switching frequency of 400kHz, providing high-speed operation suitable for fast-responding systems. The IC is fully temperature compensated for stable performance between -40°C and +85°C, ensuring reliability in harsh environmental conditions.

Open drain output and a surface mount design, packaged in a 10-pin SMD footprint measuring 8.0 x 3.0 x 1.8mm, enable straightforward integration onto PCBs and compatibility with automatic assembly processes. Advanced Filtron technology cancels background light interference, making the device robust for use in industrial automation, HVAC control, medical equipment, automotive electronic modules, and portable electronics.

Applications include industrial proximity detection, ambient light measurement for display auto-brightness, occupancy sensing in smart systems, and environmental illumination monitoring in consumer devices. Its low power I2C (SMBus compatible) interface supports efficient communication with microcontrollers for easy system integration.

Integrated ambient light and proximity sensing in a compact SMD package. Sensing distance up to 1.5 meters delivers reliable detection for industrial applications. Operates across supply voltages from 2.5V to 3.6V for flexibility in electronic designs.

Supports a 400kHz maximum switching frequency for high-speed performance. Features open drain output type and is surface mountable for automated assembly. Includes infrared emitter, ambient light sensor, and signal conditioning IC on a single chip.

Provides robust background light cancellation using Filtron technology. Temperature compensated operation from -40°C to +85°C for reliability. Discover more sensors in the Proximity Sensor category and browse Vishay’s full range for advanced industrial and commercial solutions on EnvMart.
