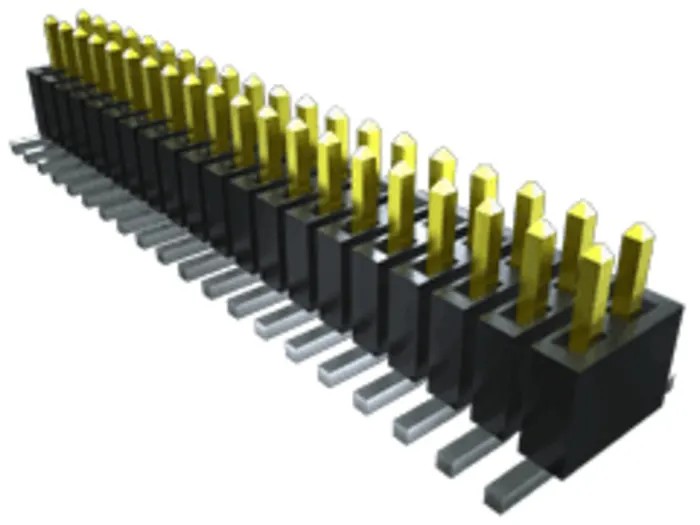

Samtec FTSH Series Straight Surface Pin Header, 16 Contacts, 1.27mm Pitch, 2 Row, Unshrouded, Surface FTSH-108-01-F-DV-K
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.4A |
| Model | FTSH-108-01-F-DV-K |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FTSH |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Surface mount straight pin header for PCB assemblies.
- Provides 16 male contacts in a 2-row unshrouded format.
- Features a 1.27 mm pitch for fine pitch board-to-board connections.
- Constructed with liquid crystal polymer housing and gold-plated phosphor bronze contacts.
- Rated for up to 3.4A current per contact.
- Suitable for high mating cycles, including vertical and horizontal configuration options.
- Extended Life Product (E.L.P.) with durability tested to 2,500 mating cycles.
- Wide operating temperature range from -55°C to +125°C.
Product Description
The Samtec FTSH-108-01-F-DV-K is a straight surface-mount pin header designed for precision PCB connectivity, offering advanced performance in electronic boards and embedded applications. This unshrouded connector provides 16 male contacts organized in two parallel rows, enabling reliable board-to-board and wire-to-board interfacing. The 1.27mm pitch allows for compact routing on assemblies where space is at a premium.
Featuring a robust liquid crystal polymer housing, the header is engineered for high temperatures and demanding conditions, with a tested operating range from -55°C to +125°C. Gold-plated phosphor bronze contacts ensure excellent conductivity and corrosion resistance, supporting up to 3.4A per contact. Its solder termination style is optimized for secure surface mount technology, facilitating automated PCB production.
This product is part of Samtec's FTSH Series and is classified as an Extended Life Product™ (E.L.P.™), meeting stringent reliability benchmarks for up to 2,500 mating cycles in mixed gas environments. The design supports both vertical and horizontal row configurations, with additional options available for post heights, polarization, and keying as needed in advanced electronic designs.
Applications include industrial controls, instrumentation, robotics, telecommunications, and commercial electronic assemblies requiring reliable crisp connectivity at high densities. The unshrouded, straight configuration ensures ease of placement, flexibility, and cost-efficient integration in PCB layouts.
This pin header is typically used in high-performance products within industrial, automation, laboratory, and commercial electronics. Its superior materials and durability are well-suited for repeated use, facilitating efficient maintenance and long service life in professional environments.
Browse more PCB Headers and Samtec interconnect solutions at EnvMart for comprehensive options in board connectivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for up to 3.4A current per contact.
The contacts in this pin header have a pitch of 1.27mm.
It features 16 male contacts organized in two rows.
The housing is made of liquid crystal polymer, while the contacts are constructed from phosphor bronze with gold plating.
The operating temperature range is from -55°C to +125°C.
It uses a solder termination style, optimized for surface mount technology.
This connector supports both vertical and horizontal row configurations.
It is tested for up to 2,500 mating cycles, classified as an Extended Life Product (E.L.P.).
This model is unshrouded, allowing for ease of placement in PCB layouts.
It is suitable for applications in industrial controls, instrumentation, robotics, telecommunications, and commercial electronic assemblies.
The country of origin for this product is the United States.
It provides both board-to-board and wire-to-board connectivity.
