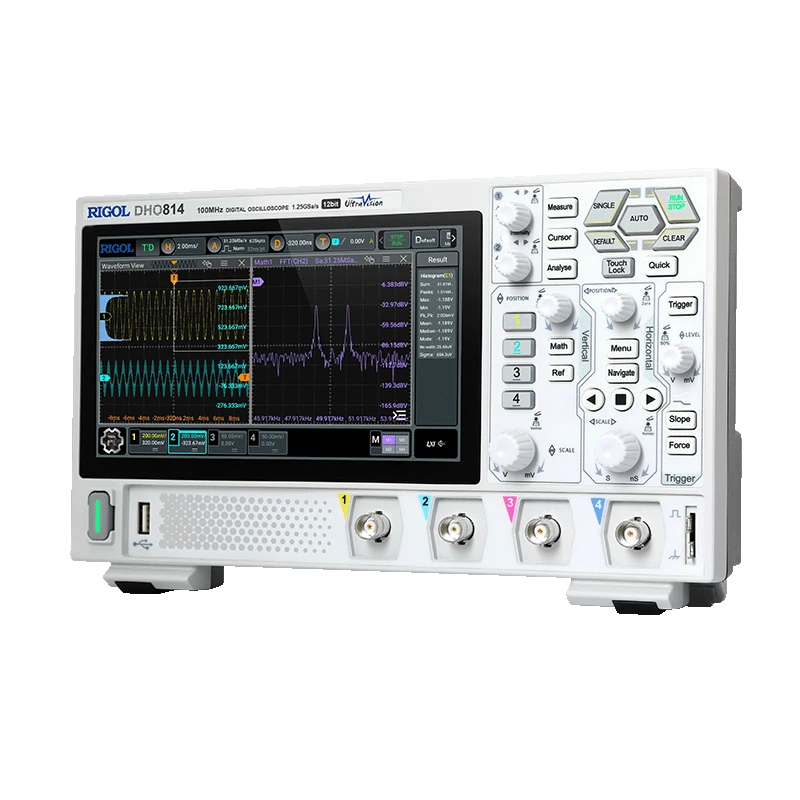

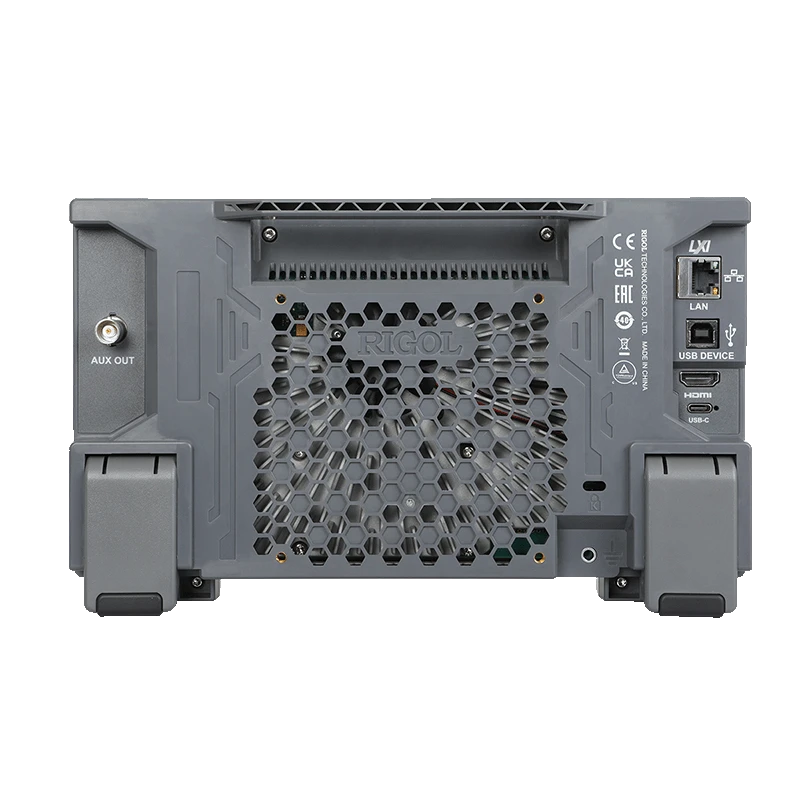

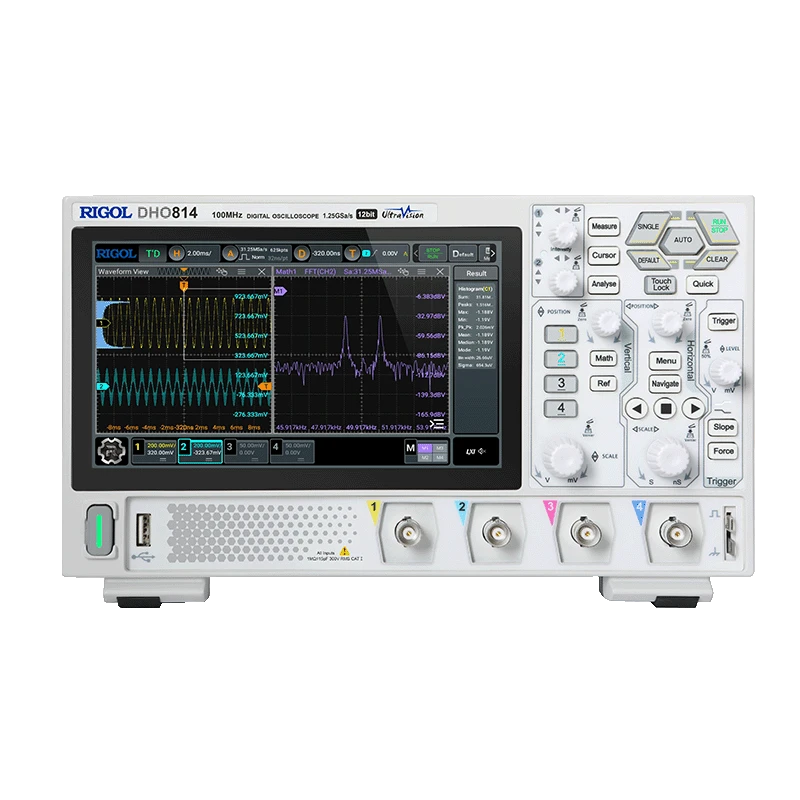

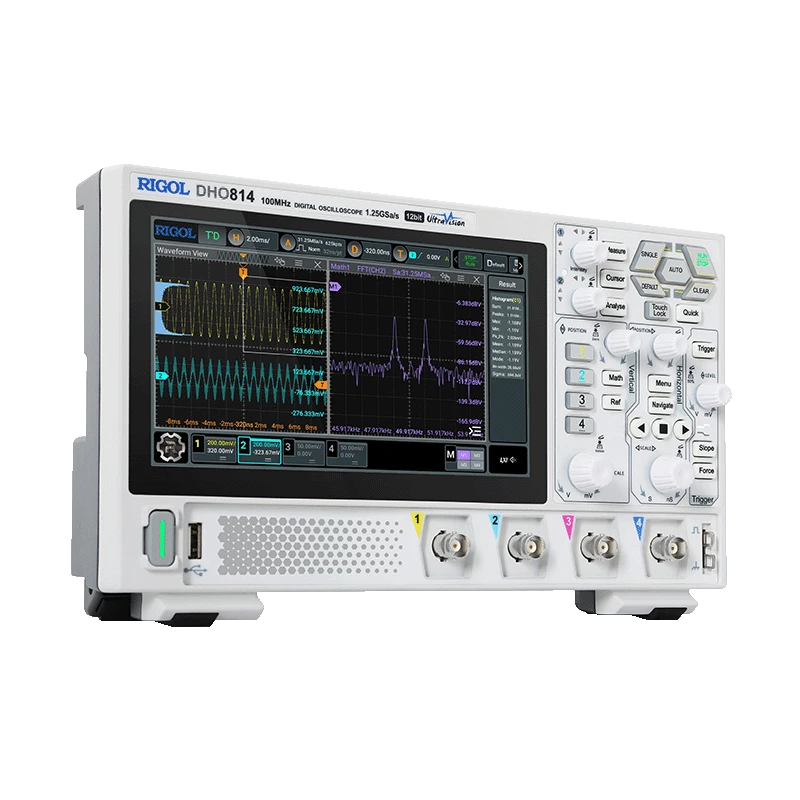

RIGOL High-Resolution Digital Oscilloscope DHO800 Series
Model
Analog Bandwidth
Analog Channels
Specifications
| Country of Origin | India |
|---|---|
| Power Consumption | 45 W (max) |
| Display Type | 7-inch capacitive multi-touch, 256-level intensity grading |
| Brand | Rigol |
| Power Supply | USB Type-C, DC 15 V / 3 A |
| Applications | Embedded system development, electronics debugging, power electronics testing, educational laboratories, field service |
| Operating Temperature | 0°C to +50°C |
| Connectivity | USB Host/Device, LAN, HDMI |
| Operating System | Android |
| Processor | Cortex-A72, up to 1.8 GHz, 6-core |
| Series | DHO800 Series |
| Display Resolution | 1024 × 600 |
| Analog bandwidth | Up to 100 MHz |
| Waveform Capture Rate | 1,000,000 wfms/s (UltraAcquire) |
| Number Of Channels | 2 or 4 |
| External Trigger | Supported (2CH and 4CH) |
| Vertical Resolution | 12 bits |
| Trigger Types | Edge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold, Nth Edge |
| Vertical Sensitivity | 500 µV/div to 10 V/div |
| Product Condition | New |
| Recommended Calibration Interval | 18 months |
| Maximum Sample Rate (real-time) | 1.25 GSa/s |
| Memory Depth (single/dual/full channel) | 25/10/5 Mpts |
| FFT Length | Up to 1 Mpts |
| Package Dimensions (L x W x H) | 265.35 x 161.75 x 77.38 mm |
| Weight (without package) | 1.78 kg |
Key Features
RIGOL DHO800 Series High-Resolution Digital Oscilloscope is a compact, advanced instrument suitable for embedded, power, and general electronics test applications.
- Provides 12-bit high vertical resolution with ultra-low noise performance.
- Supports analog bandwidth up to 100 MHz for high fidelity signal capture.
- Offers up to 1.25 GSa/s real-time sampling rate and 25 Mpts deep memory.
- Available in 2 or 4 channel configurations with external trigger option.
- Features a 1,000,000 wfms/s capture rate in UltraAcquire mode.
- Includes digital phosphor display with 256-level intensity grading.
- Touchscreen 7-inch 1024 × 600 capacitive multi-touch interface for user-friendly operation.
- Supports USB Host/Device, LAN, and HDMI connectivity as standard.
- Compact, lightweight, and economical design with robust build quality.
- Essential for industrial, laboratory, educational, and field service test environments.
Product Description
RIGOL DHO800 Series High-Resolution Digital Oscilloscope delivers precise measurement with 12-bit resolution, ultra-low noise, and deep memory of up to 25 Mpts. This modern benchtop oscilloscope is engineered for embedded design, debugging, and general-purpose test in industrial, laboratory, and educational settings. Featuring analog bandwidth options up to 100 MHz, it supports 2 or 4 analog channels plus external triggers, with real-time acquisition speeds up to 1.25 GSa/s.
- Up to 100 MHz bandwidth covering mainstream measurement needs.
- True 12-bit vertical resolution and ultra-low noise front end.
- Wide 500 µV/div–10 V/div vertical sensitivity.
- Memory depth reaches 25 Mpts single-channel.
- Exceptional waveform capture rate up to 1,000,000 wfms/s in UltraAcquire mode.
- Powerful trigger system: edge, pulse, slope, video, pattern, duration, timeout, runt, window, delay, setup/hold, Nth edge.
- Serial bus analysis: RS232/UART, I2C, SPI, CAN.
- Automatic measurements: 41 parameters, with math and FFT analysis functions.
- High-precision frequency counter and digital voltmeter included.
- 7-inch multi-touch 1024 × 600 HD display with 256-level intensity grading.
Connectivity includes USB, LAN, and HDMI as standard, making this series easy to integrate into any laboratory or teaching space. The physical design is robust yet lightweight, ideal for desktop or portable use. Industry sectors using the DHO800 Series include electronics manufacturing, power electronics R&D, industrial automation, education, and field service/maintenance. Available models include DHO802 (70 MHz, 2CH), DHO804 (70 MHz, 4CH), DHO812 (100 MHz, 2CH), and DHO814 (100 MHz, 4CH). Standard warranty is 3 years (mainframe).
Explore more RIGOL high-performance test instruments and related measurement equipment on EnvMart for a comprehensive range of industrial, laboratory, and educational solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RIGOL DHO800 Series oscilloscope features a maximum real-time sample rate of 1.25 GSa/s.
The DHO800 Series oscilloscope is available in configurations with either 2 or 4 channels, providing flexibility for various testing needs.
The RIGOL DHO800 Series oscilloscope offers a vertical resolution of 12 bits, ensuring high precision in measurements.
Yes, the DHO800 Series oscilloscope is suitable for educational laboratories, making it an excellent tool for teaching and learning electronics.
The oscilloscope supports USB Host/Device, LAN, and HDMI connectivity, allowing easy integration into various setups.
The operating temperature range for the RIGOL DHO800 Series oscilloscope is from 0°C to +50°C.
The DHO800 Series oscilloscope has a memory depth of up to 25 Mpts for single-channel use, allowing for detailed waveform capture.
The oscilloscope weighs approximately 1.78 kg without the package, making it lightweight and portable.
It is suitable for embedded system development, electronics debugging, power electronics testing, and field service.
Yes, the DHO800 Series oscilloscope comes with a standard warranty of 3 years for the mainframe.
