RIGOL Digital Oscilloscope DS8000-R Series Compact

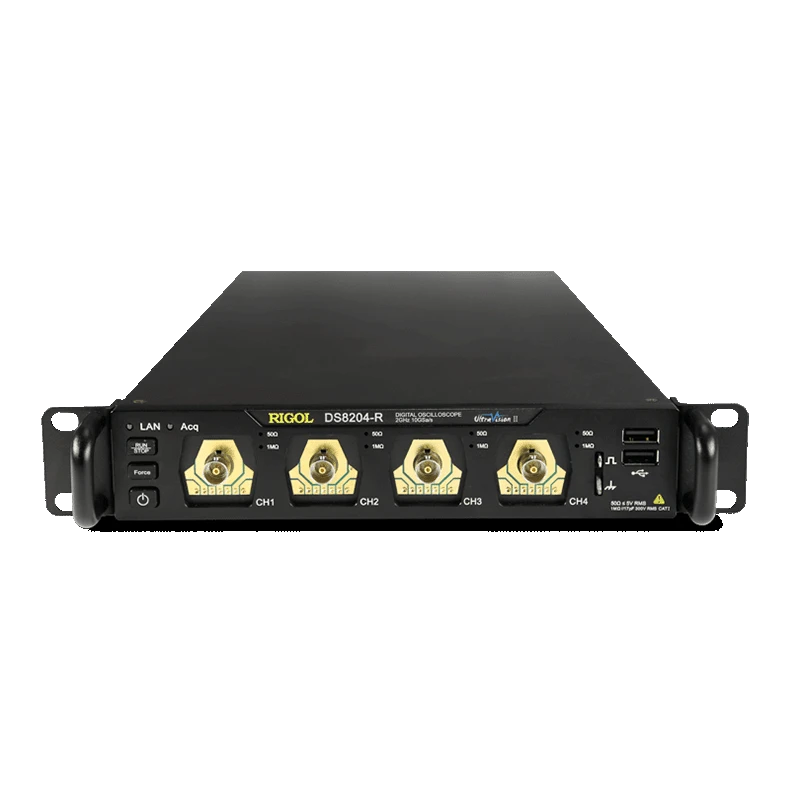

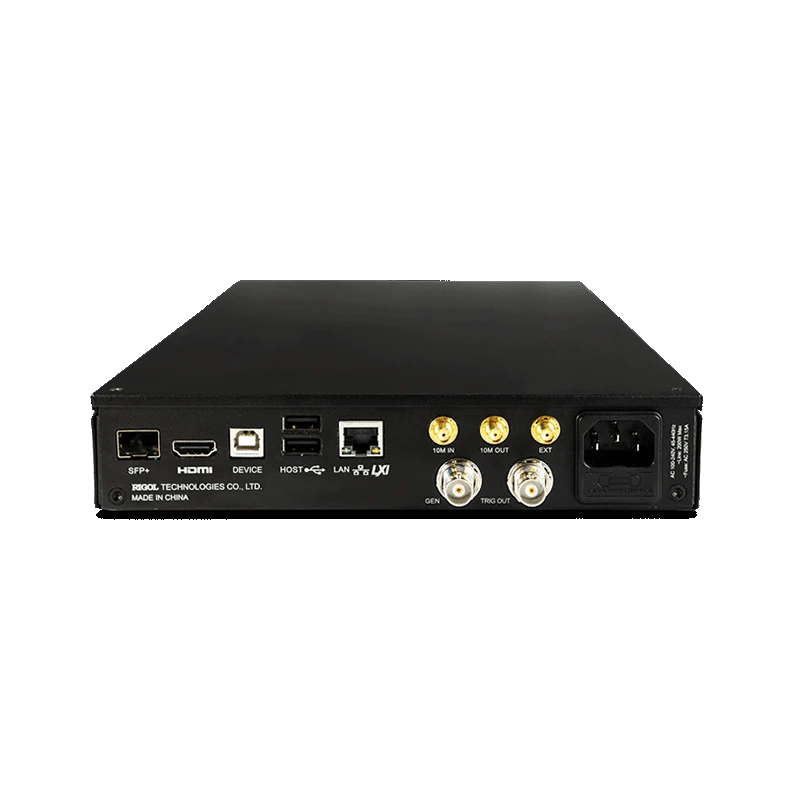

Rigol DS8000-R Series Compact Rack-Mount Digital Oscilloscope DS8000-R is designed for demanding industrial, laboratory, and automated test environments. Featuring 4 analog input channels plus 1 external trigger, this oscilloscope delivers up to 2 GHz analog bandwidth and a real-time sampling rate up to 10 GSa/s. Its 1U rack-mount design ensures easy integration into multi-channel or high-channel-count test systems.

• The UltraVision II platform enables advanced signal analysis, deep memory (up to 500 Mpts/channel), and high waveform capture rates exceeding 600000 wfms/s.
• Engineered for industrial and laboratory system integration, it accommodates synchronization among multiple devices with low jitter (<200 ps RMS typical) and supports scalable, synchronized setups with up to 512 channels.
• The DS8000-R series supports remote control via SCPI commands and Web Control. Multiple trigger modes (including edge, pattern, duration, window, and zone) expand diagnostic versatility.
• Integrated measurement and analysis tools provide up to 41 automatic measurements, math functions such as FFT, integration, differentiation, and optional eye diagram and jitter analysis (on select models).
• Standard 6-in-1 instrumentation includes a digital oscilloscope, spectrum analyzer, arbitrary waveform generator (optional), digital voltmeter, high-resolution frequency counter, and protocol analyzer support (optional modules).

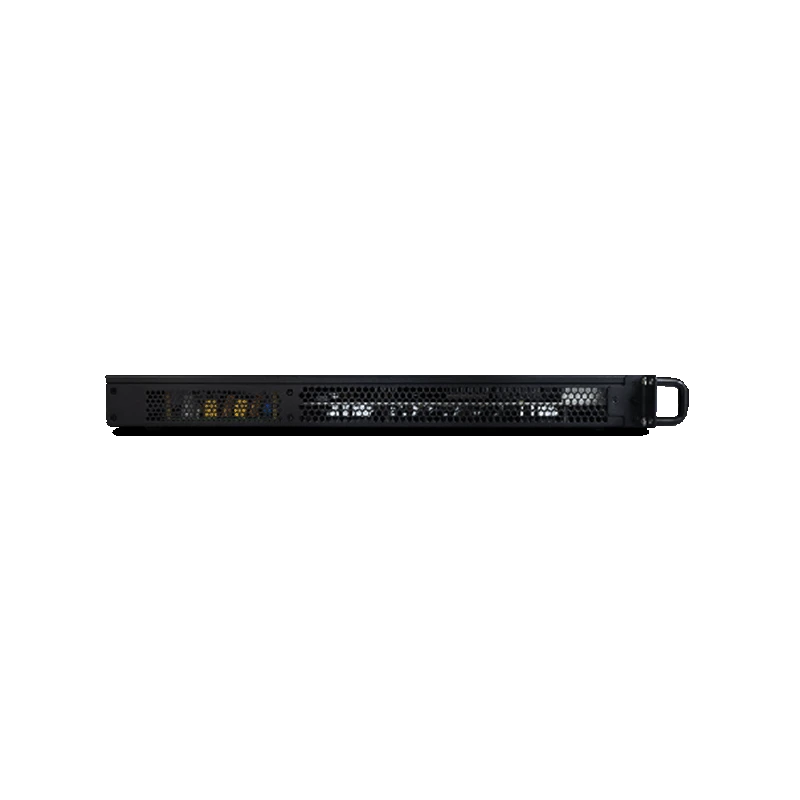

Typical applications include industrial automation test systems, multi-channel synchronized data acquisition, semiconductor and communications testing, and rack-mounted ATE integration. The compact (214 × 43 × 478 mm, <3.6 kg) build and wide operating temperature (−40°C to +50°C) enable deployment in diverse environments.

• Set includes main DS8000-R oscilloscope unit and standard rack-mount kit.
