RIGOL DS80000 Series High-Bandwidth Digital Oscilloscope | DS80604 | DS80804 | DS81004 | DS81304

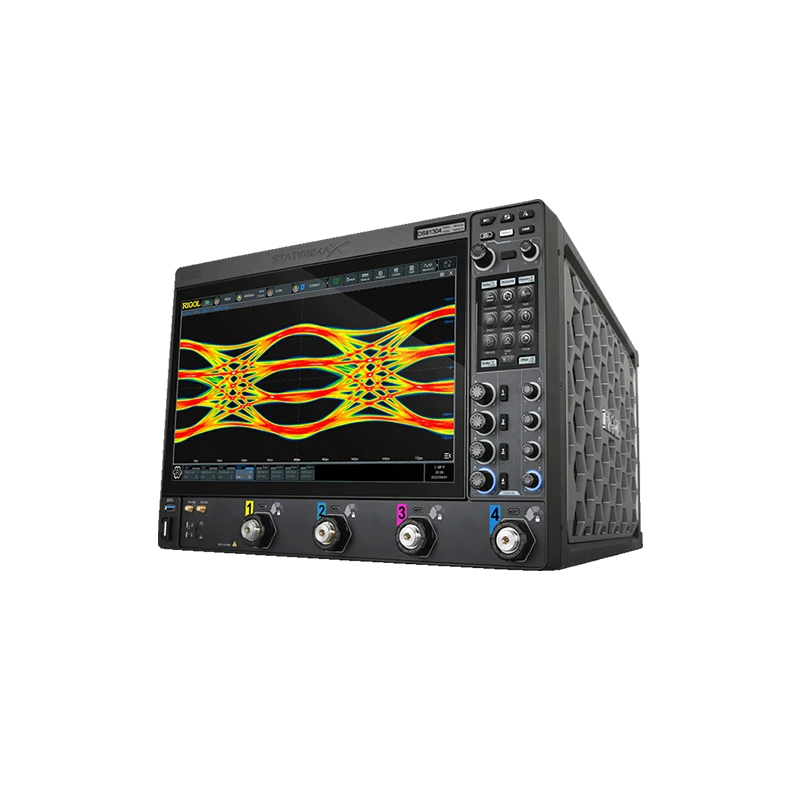

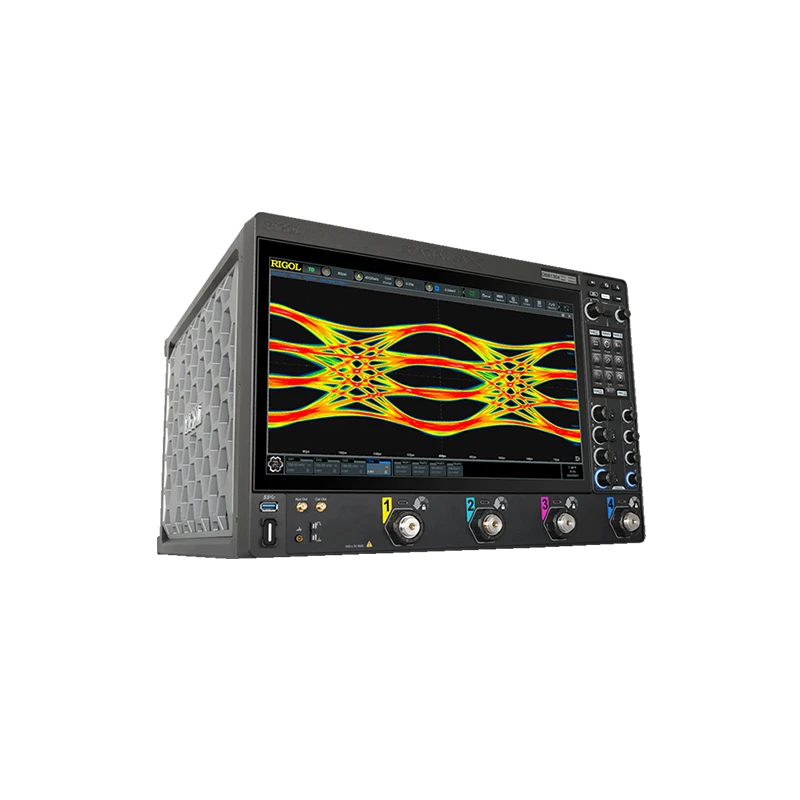

The RIGOL DS80000 Series High-Bandwidth Digital Oscilloscope, available in DS80604, DS80804, DS81004, and DS81304 models, is a four-channel real-time oscilloscope designed for high-speed digital systems, RF engineering, semiconductor testing, serial-bus validation, and advanced research. Built on RIGOL’s StationMAX II and UltraVision III platforms, it combines bandwidth options from 6 GHz to 13 GHz with a maximum real-time sampling rate of 40 GSa/s.

The series includes the DS80604 with 6 GHz bandwidth, DS80804 with 8 GHz bandwidth, DS81004 with 10 GHz bandwidth, and DS81304 with 13 GHz bandwidth. These configurations allow engineers to select the appropriate performance level for high-speed device characterisation, signal-integrity analysis, communication-system testing, and compliance validation.

With a maximum memory depth of 4 Gpts, the RIGOL DS80000 Series can capture long waveform records while maintaining high sampling rates. This deep-memory architecture supports detailed analysis of intermittent faults, timing errors, complex modulation, high-speed buses, and long-duration signal activity.

• Four analogue input channels
• Model-specific bandwidth options of 6 GHz, 8 GHz, 10 GHz, and 13 GHz
• Maximum real-time sampling rate of 40 GSa/s
• Maximum memory depth of 4 Gpts
• StationMAX II high-speed hardware platform
• UltraVision III waveform-processing architecture
• Advanced edge, pulse, pattern, runt, timeout, setup-and-hold, and serial triggering
• Serial-bus decoding and analysis for supported communication protocols
• Eye-diagram generation and analysis
• Jitter measurement and decomposition capabilities
• Mask testing for signal-quality and production validation
• High-speed bus compliance-analysis options
• Waveform search, navigation, recording, and playback
• Advanced mathematical, measurement, and statistical functions
• RIGOL SmartProbe 2.0 interface
• Direct signal connection using 3.5 mm connectors
• Compatibility with supported RIGOL probes through probe adapters

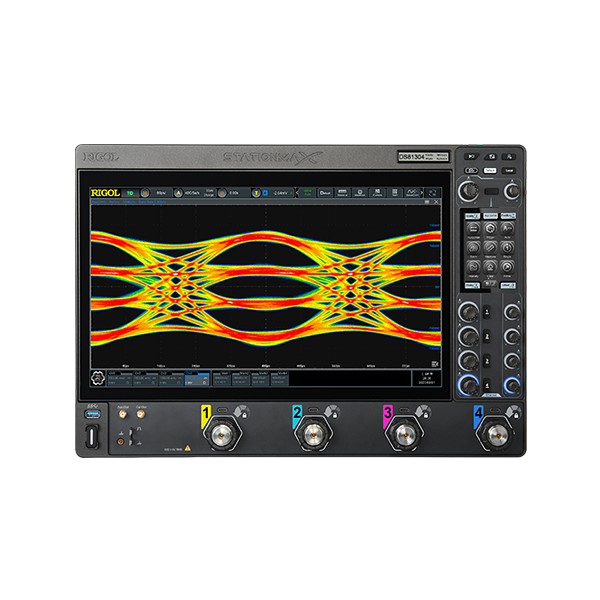

• Large 15.6-inch Full HD capacitive multi-touch display
• USB connectivity for storage and peripheral devices
• LAN connectivity for remote operation and automation
• HDMI output for external display integration
• SCPI command support for automated test environments

The RIGOL SmartProbe 2.0 interface supports convenient connection of high-bandwidth probes and direct 3.5 mm signal inputs. Compatible adapters also help users integrate supported previous-generation RIGOL probes, providing greater flexibility when configuring the oscilloscope for voltage, current, differential, and specialised high-frequency measurements.

Advanced eye-diagram, jitter, mask, and compliance-testing functions help engineers evaluate signal quality in high-speed interfaces. These capabilities are particularly useful for locating timing problems, measuring noise margins, analysing clock stability, verifying transmitter performance, and troubleshooting data-integrity issues.

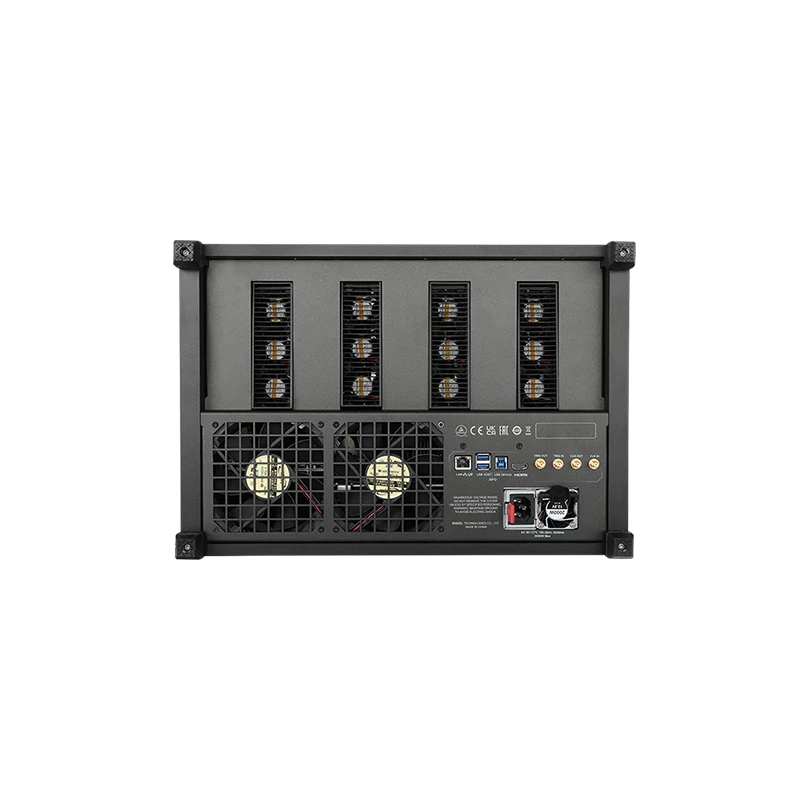

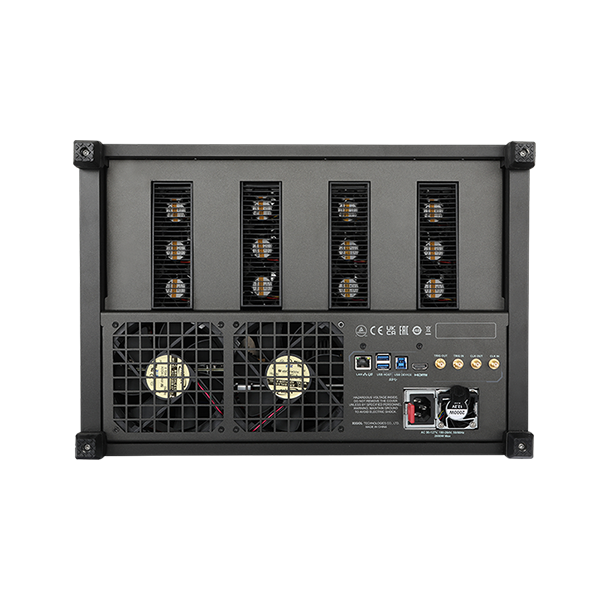

The large 15.6-inch Full HD multi-touch display provides ample space for viewing multiple waveforms, measurements, eye diagrams, decoded buses, and analysis results. USB, LAN, HDMI, remote-control, and automation capabilities allow the instrument to operate as part of a laboratory workstation or an integrated validation system.

Typical applications include high-speed digital design, DDR debugging, USB and Ethernet compliance testing, clock and data analysis, RF component evaluation, semiconductor validation, aerospace and defence electronics, communication-system development, signal-integrity engineering, and advanced academic research.

Available Models: DS80604 | DS80804 | DS81004 | DS81304
